Exita Swing 3-860-45lm SC WH
Order number: LG60039
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays

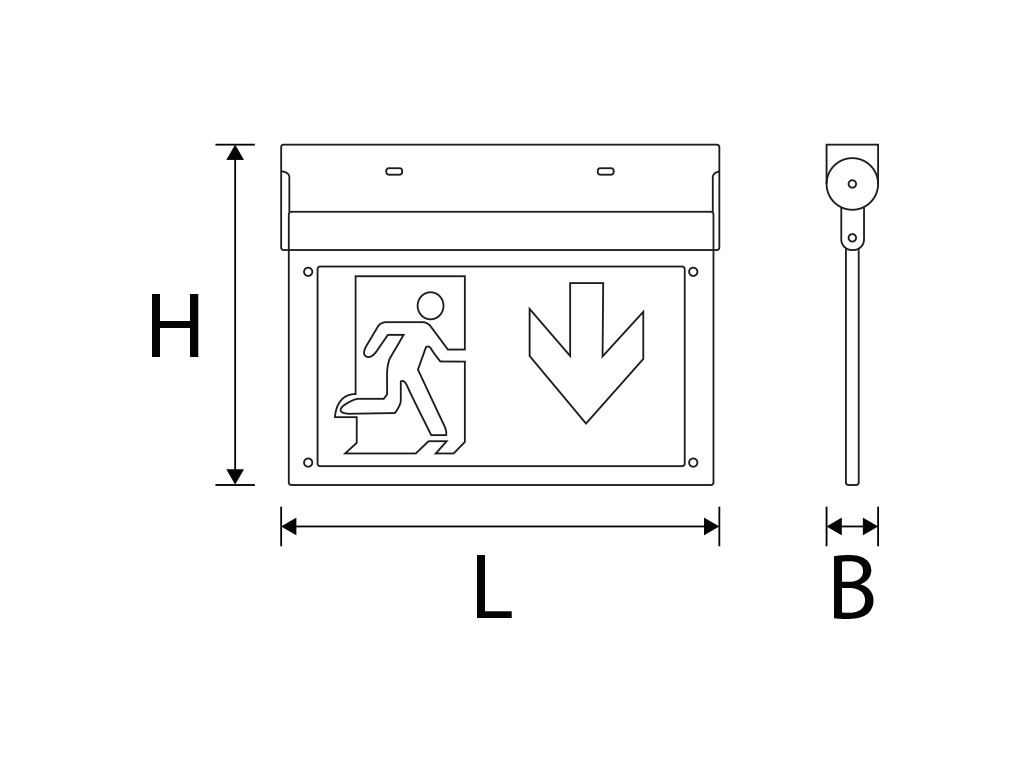

Dimensions
LED emergency exit light Litegear Exita Swing: single-battery emergency... more
Product information "Exita Swing 3-860-45lm SC WH"
LED emergency exit light
Litegear Exita Swing: single-battery emergency light for escape route marking. Universal swivel mounting kit for wall and ceiling mounting.
The luminaire can be used on one or two sides. Optionally, a mounting arm for side installation is available (see accessories).
Flat, elegant acrylic LED pictogram surface.Over 60% power saving compared to conventional 8W versions with fluorescent tubes.
The exit sign sheets are interchangeable and are fastened by push-button fasteners. Manual test function and green status LED display.
Continuous operation via 230V mains voltage or battery emergency operation of up to 3 hours. Fast installation and easy battery change.
Almost no maintenance cost due to LED technology!
3x pictograms for escape Arrow: "left/right/up included.
Optionally, we offer additional escape route pictograms in a set.
- Material: polycarbonate and acrylic
- incl. 4 legends
- Swivel range: 90°
- Accupack included
- average battery life: 4 years max.
- viewing distance: 24 meters
- Overload and discharge protection
- Discharge current: 160mA
- Battery: 4,8v 600mA, NI-CD
- charging current: 30mA
Related links to "Exita Swing 3-860-45lm SC WH"
Technical Details:
| Luminous Flux: | 45 lm |
| LED Output: | 3 W |
| Light Yield: | 15 lm/W |
| Light Temperature: | 6000 K |
| Light Color: | cold white |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <6 |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Everlight |
| LED-Chip: | SMD 2835 |
| Number of LED: | 16 |
| Ignition Time: | <1 s |
| Input Current: | AC 220-240VV, 50/60Hz |
| Power Consumption: | 3 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.5 |
| Input Driver: | terminal |
| Input Lamp: | terminal |
| Switching Cycles: | >30.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | 0°C - 40°C |
| Storage Temperature: | 0°C - 40°C |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| Pivot Range tilt: | 90 ° |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | Polycarbonat |
| Special Feature of Housing: | Attachment housing swivelling |
| Cover: | clear |
| Net Weight: | 939 g |
| Luminaire Type: | Rettungszeichenleuchte |
| Viewing Distance EN1838: | ≥24 m |
| Sign Visible from Both Sides: | |
| Included Signs: | Pfeil links rechts oben unten + white |
| Testing Facility: | automatischer Selbsttest |
| Battery Warranty: | 2 |
| Discharge Duration: | ≥3 h |
| Battery Type: | NiCd |
| Battery Current: | 900 mA |
| Battery Charge Duration: | 24 h |
| Initial Charge Duration: | 36 h |
| Charging Power Consumption: | 5 W |
| Battery Cell Quantity | 1 |
| Luminous Flux in Battery Mode: | 140 lm |
| Standards for emergency luminaires: | DIN EN 60598-2-22, DIN EN 62034: 2012, Zeichen nach ISO 7010, Anforderung nach DIN EN 50172 |
| Type of Packaging: | box |
| Dimensions of Packaging: | 335x45x244 |
| Weight incl. Packaging: | 1.056 kg |
| Content Master Package: | 10 |
| Dimensions of Master Package: | 490x300x325 mm |
| Weight Master Package: | 10,6 kg |
| Product Line: | ECO Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L70/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE |
| Barcode: | 4250557817835 |
| Über- und Entladeschutz, greene Status LED, Taster | |
| autom. Selbsttest: 30s /Woche, Langzeit: 1 x year | |
| auto selftest: weekly 30s, long duration: 1 x year | |
| inkl. 4 Schilder | |
| incl. 4 legends | |
Universelle LED-Einzelbatterie-Sicherheitsleuchte zur Rettungswegkennzeichnung zur Wand- und... more
Universelle LED-Einzelbatterie-Sicherheitsleuchte zur Rettungswegkennzeichnung zur Wand- und Deckenmontage
Vorschaltgerät: LED-Treiber
Temperaturbereich: 0°C - 40°C
Lichtstrom: 45 lm
LED-Leistung: 3 W
Leuchten-Lichtausbeute: 15 lm/W
Farbtemperatur: 6000 K
Lichtfarbe: kaltwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Polycarbonat
Abdeckung: klar
Nettogewicht: 939 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: 0°C - 40°C
Lichtstrom: 45 lm
LED-Leistung: 3 W
Leuchten-Lichtausbeute: 15 lm/W
Farbtemperatur: 6000 K
Lichtfarbe: kaltwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Polycarbonat
Abdeckung: klar
Nettogewicht: 939 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
