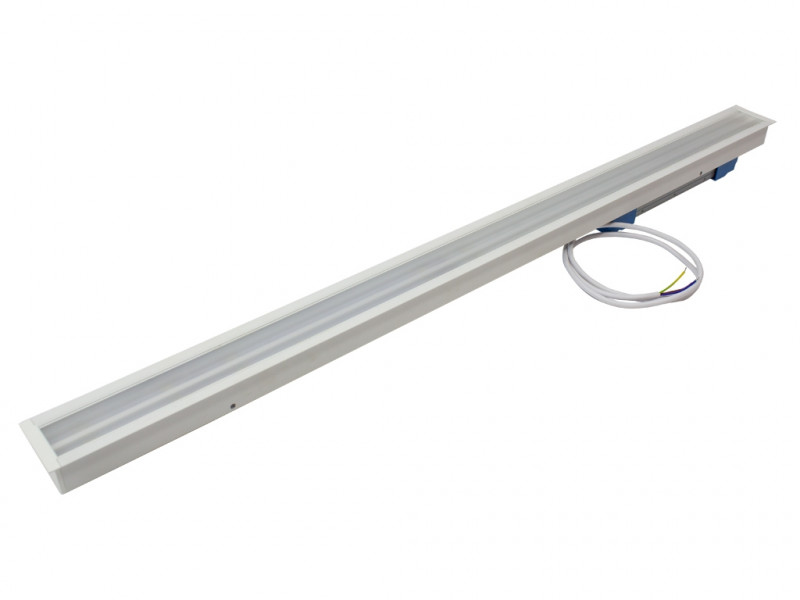

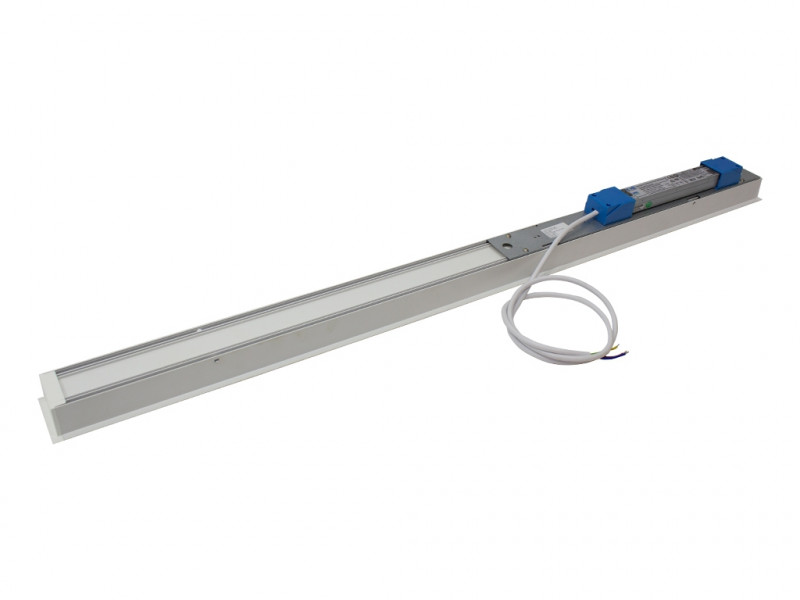

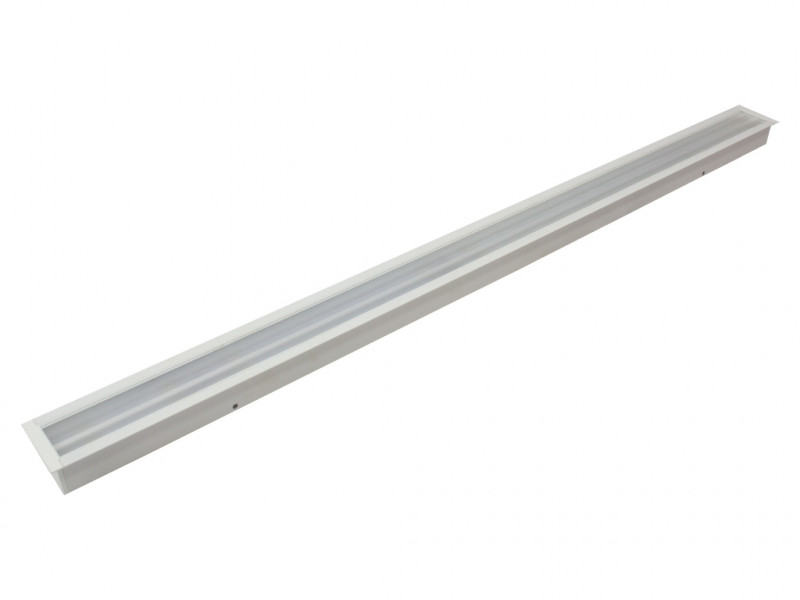

DURATA INLINE 34-840-3000LM FL 3000lm
Order number: LG14439W
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
- Order number: : LG14439W
- Luminous Flux: 3400 lm
- Power Draw: 34 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220-240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 100°
- LED-Chip: SMD 2835
- Housing Color: white
- Dimensions: 1260x64x47 mm
- Warranty: 5 years
Recessed linear Office LED light line system Durata Line is a modular LED... more
Product information "DURATA INLINE 34-840-3000LM FL 3000lm"
Recessed linear Office LED light line system
Durata Line is a modular LED light line system for offices, schools and retail spaces. Several modules can be linked. The lights can be integrated into the ceiling cutouts by spring clips. Durata Inline is available in different lengths, power versions and different beam angles, light colors and optimized glare control, for example for computer workstations.
Available housing colors: black or white
Technical specifications:
- modular recessed linear light system for Office, shop or schools
- High energy savings through high system efficiency of up to 105 lumens / watt
- optionally also available with dimmable drivers
- eye-friendly optics with optimized glare control UGR <19 and flicker-free light
selectable beam angle:
100 ° UGR: 22, 70 ° UGR <19 ;, 66 ° UGR <13, 43 ° UGR <6, asymmetric 60 °
Related links to "DURATA INLINE 34-840-3000LM FL 3000lm"
Technical Details:
| Luminous Flux: | 3400 lm |
| LED Output: | 33 W |
| Light Yield: | 100 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <2 |
| Beam Angle: | 100 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220-240V, 50/60Hz |
| Power Consumption: | 34 W |
| Contains Driver: |  |
| Driver Manufacturer: | Boke |
| Power Factor (PF): | >0.95 |
| Input Driver: | plug connector |
| Output of Driver: | DC 38V, 900mA |
| CC/CV: | CC |
| Input Lamp: | cable with flying leads |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -10°C - 40°C |
| Storage Temperature: | -20°C - 55°C |
| Dimensions: | 1260x64x47 mm |
| Installation Depth: | 64 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 |
| IK Code: | 07 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Cover: | opal |
| Net Weight: | 1971 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 1316*95*95 |
| Weight incl. Packaging: | 2.218 kg |
| Content Master Package: | 12 |
| Dimensions of Master Package: | 1336*405*310 mm |
| Weight Master Package: | 29,14 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L90/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405 11 90 90 |
| Certifications | CE |
| Barcode: | 4250557824680 |
| Elegante, Deckeneinbau-Lichtlinienleuchte | |
| optional auch dimmbare Treiber erhältlich | |
| optional 5 unterschiedliche LED-Optiken lieferbar | |
