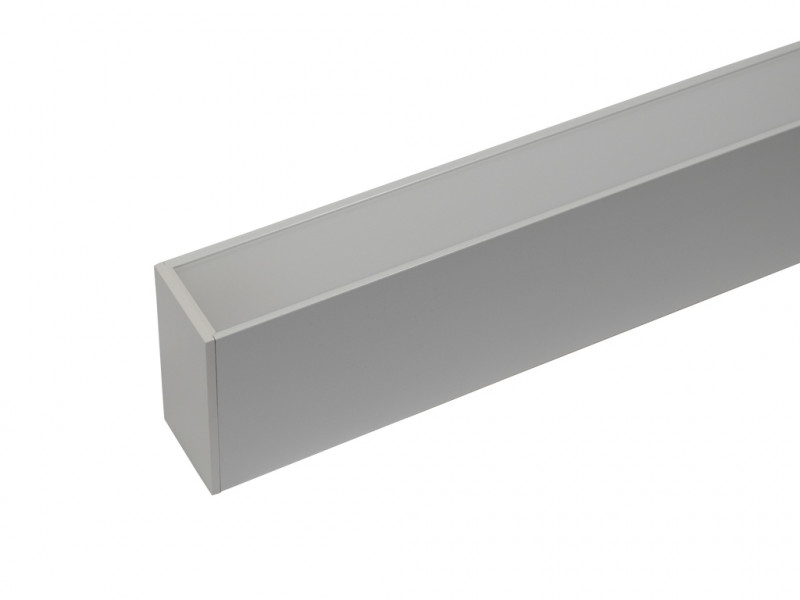

DURATA LINE 40-840-4800LM ASYM-WFL DALI DIM
Order number: LG14382UP/DO-W
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
Dimensions
- Order number: : LG14382UP/DO-W
- Luminous Flux: 4800 lm
- Power Draw: 40 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 200-240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 40
- Beam Angle: 100°
- LED-Chip: San'an SMD 2835
- Housing Color: white

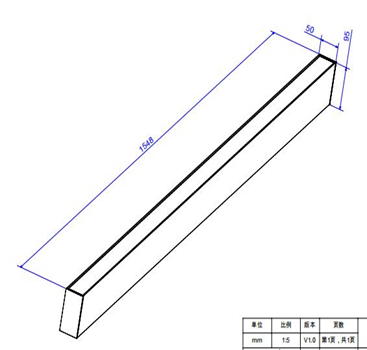

- Dimensions: 1550x50x95 mm
- Warranty: 5 years
Linear Office LED light line system Durata Line is a modular LED light line... more
Product information "DURATA LINE 40-840-4800LM ASYM-WFL DALI DIM"
Linear Office LED light line system

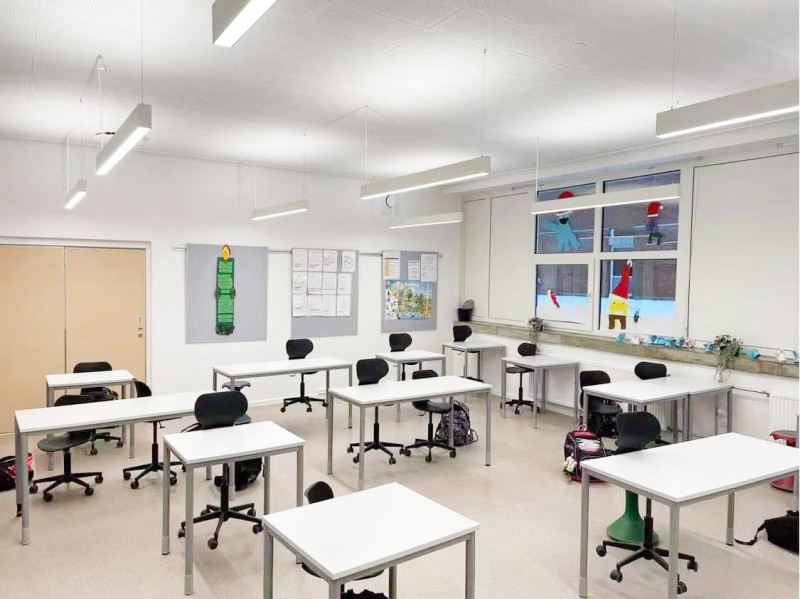

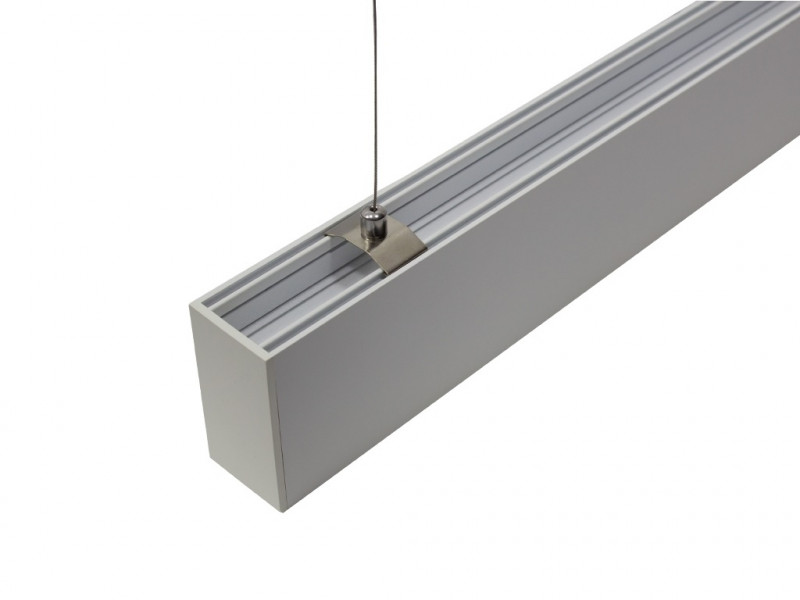

Durata Line is a modular LED light line system for offices, schools and retail spaces. The lights can be fastened directly to the ceiling with clips, brackets on walls or suspended using steel cable sets. Durata Line is available in different versions such as different beam angles, light colors and optimized glare control, for example for computer workstations.
Available housing colors: black or white
with optional wall brackets can be used as a wall light with direct and indirect light distribution
Technical specifications:
- modular light line system for Office, shop or schools for wall mounting with optional brackets
- High energy savings through high system efficiency 120 lumens / watt
- Dali dimmable driver
- eye-friendly optics with optimized glare control UGR <22 and flicker-free light
selectable beam angle:
100° indirect UGR: 22 + 50° direct asym. UGR22
Related links to "DURATA LINE 40-840-4800LM ASYM-WFL DALI DIM"
Technical Details:
| Luminous Flux: | 4800 lm |
| Light Yield: | 120 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 100 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| LED-Chip Manufacturer: | San'an |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s | |
| Input Current: | AC 200-240V, 50/60Hz |
| Power Consumption: | 40 W |
| Contains Driver: | |
| Driver Manufacturer: | Boke |
| Power Factor (PF): | >0.95 |
| Input Driver: | plug connector |
| Output of Driver: | DC 30-40V, 1000mA |
| CC/CV: | CC |
| Input Lamp: | terminal |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 1550x50x95 mm |
| Mounting: | Wand |
| Montageart: | surface mounted |
| IP Class: | 40 |
| IK Code: | 07 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Special Feature of Housing: | modular |
| Cover: | opal |
| Net Weight: | 3100 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 1560x60x105 |
| Weight incl. Packaging: | 3.6 kg |
| Content Master Package: | 8 |
| Dimensions of Master Package: | 1580x265x245 mm |
| Weight Master Package: | 33,6 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 94051190 |
| Certifications | CE |
| Barcode: | 4250557822778 |
| Elegante, modulare Lichtlinienleuchte für Büros | |
| Als Wandleuchte verwendbar m. Zubehör | |
| optional 5 unterschiedliche LED-Optiken lieferbar | |
| Ideal für Büro - oder Flurbeleuchtung | |
| inkl. Wandhalter | |
