DURATA TRACKLINE 42-930-5170LM WFL DA 123lm/W
Order number: LG14383WDA
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG14383WDA
- Luminous Flux: 4880 lm
- Power Draw: 40 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 200-240V, 200mA, 50/60Hz
- Color Rendering Index (CRI): ≥90 Ra
- IP Code: 20 (20 room side)
- Beam Angle: 110°
- LED-Chip: Runlite SMD 2835
- Housing Color: mattwhite

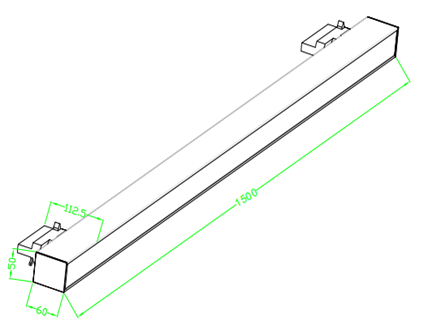

- Dimensions: 1500x50x60 mm
- Warranty: 5 years
Linear Office LED light line system Durata Line is a modular LED light line... more
Product information "DURATA TRACKLINE 42-930-5170LM WFL DA 123lm/W"
Linear Office LED light line system
Durata Line is a modular LED light line system for offices, schools and retail spaces. The lights can be fastened directly to the ceiling with clips or suspended using steel cable sets. Durata Line is available in different versions such as different beam angles, light colors and optimized glare control, for example for computer workstations.
Available housing colors: black or white
Technical specifications:
- modular light line system for Office, shop or schools
- High energy savings through high system efficiency of up to 105 lumens / watt
- optionally also available with dimmable drivers
- eye-friendly optics with optimized glare control UGR <19 and flicker-free light
selectable beam angle:
100 ° UGR: 22, 70 ° UGR <19 ;, 66 ° UGR <13, 43 ° UGR <6, asymmetric 60 °
Related links to "DURATA TRACKLINE 42-930-5170LM WFL DA 123lm/W"
Technical Details:
| Luminous Flux: | 4880 lm |
| LED Output: | 39 W |
| Light Yield: | 120 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥90 Ra |
| Color Consistency (SDCM): | <2 |
| Beam Angle: | 110 ° |
| Unified Glare Rating (UGR): | 24 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| LED-Chip Manufacturer: | Runlite |
| LED-Chip: | SMD 2835 |
| Number of LED: | 456 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 200-240V, 200mA, 50/60Hz |
| Power Consumption: | 40 W |
| Contains Driver: | |
| Driver Manufacturer: | Eaglerise |
| Power Factor (PF): | >0.95 |
| Input Driver: | plug connector |
| Output of Driver: | DC 25-42V, 300-1000mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | III |
| Ambient Temperature (TA): | -25°C - 35°C |
| Storage Temperature: | -40°C - 80°C |
| Dimensions: | 1500x50x60 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 20 (20 room side) |
| IK Code: | 05 |
| Housing Color | mattwhite |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | aluminum |

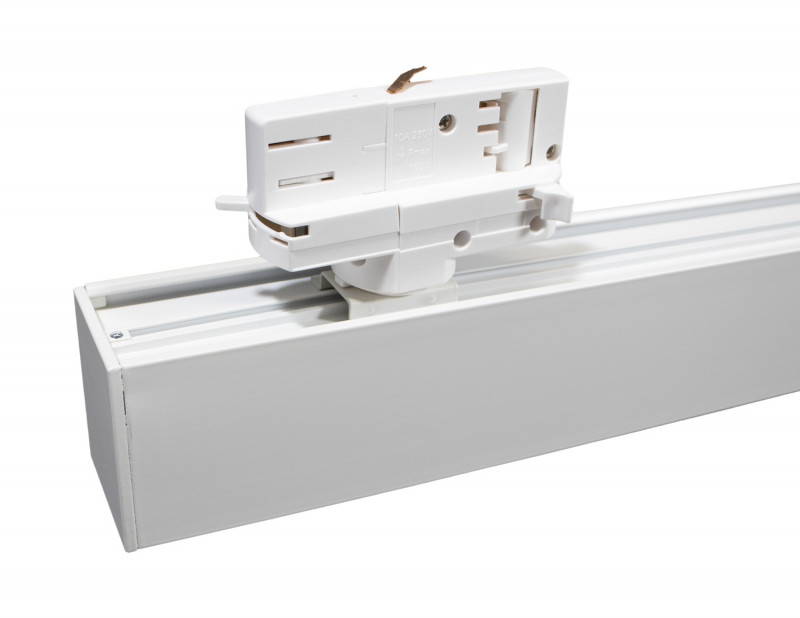

| Special Feature of Housing: | mit 3-Phasensch. Adapter |
| Cover: | opal |
| Net Weight: | 1910 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 3 kg |
| Content Master Package: | 6 |
| Dimensions of Master Package: | 1540x60x140 mm |
| Weight Master Package: | 17,04 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405219090 |
| Certifications | CE |
| Barcode: | 4250557825588 |
| zur Montage an 3-Phasen Dali-Stromschienen | |
