DURATA Advance 40-830/840-4800LM UP/DOWN UGR DALI DIM
Order number: LG14394B
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG14394B
- Luminous Flux: 4800 lm
- Power Draw: 40 W
- Input Current: AC 200-240V, 200mA, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20 (20 room side)
- Beam Angle: 2x90°
- LED-Chip: San'an SMD 2835
- Housing Color: black matt

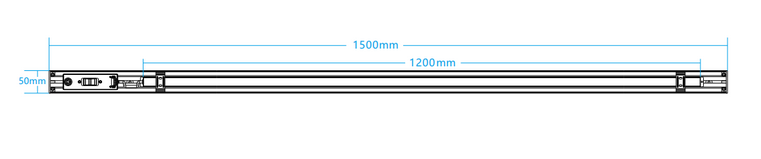

- Dimensions: 1500x50x100 mm
- Warranty: 5 years
Linear LED lighting system with direct and indirect light output Durata... more
Product information "DURATA Advance 40-830/840-4800LM UP/DOWN UGR DALI DIM"

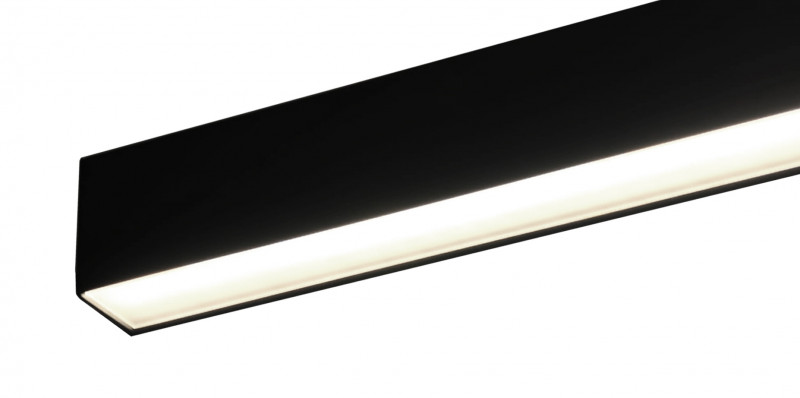

Linear LED lighting system with direct and indirect light output
Durata Advance is a modular linear lighting system designed for modern office environments. Each module can be used as a standalone luminaire or combined to form a continuous line of light.

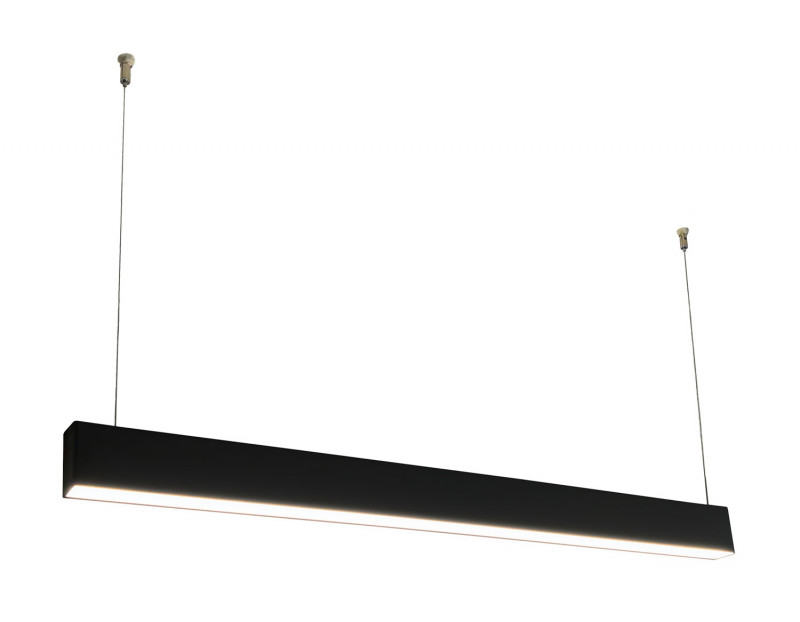

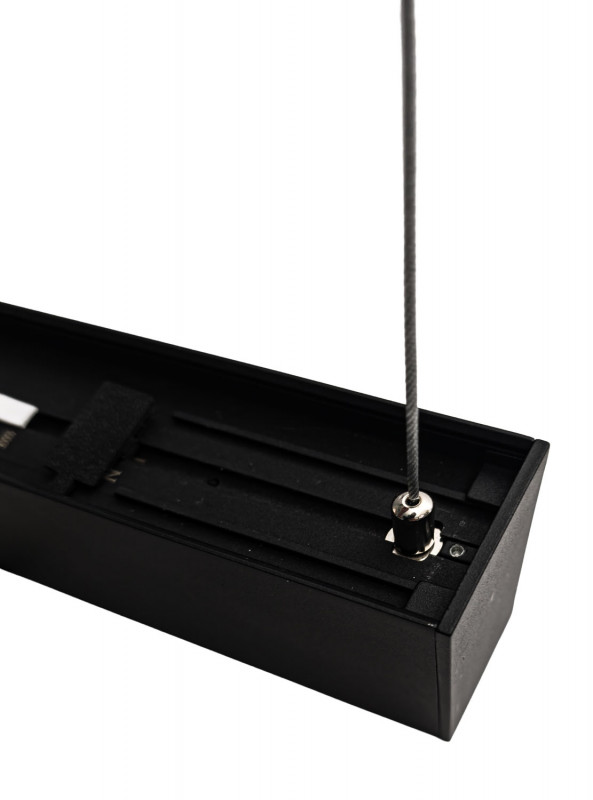

Electrical and mechanical linear connectors can be ordered as optional accessories. While typically suspended via steel cables, the luminaire can also be mounted directly to the ceiling using clips

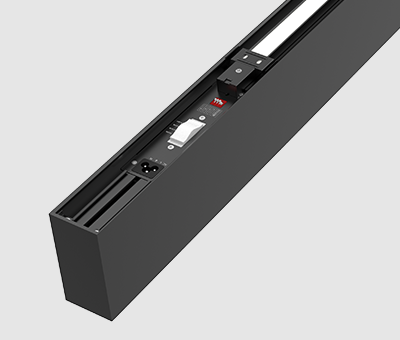

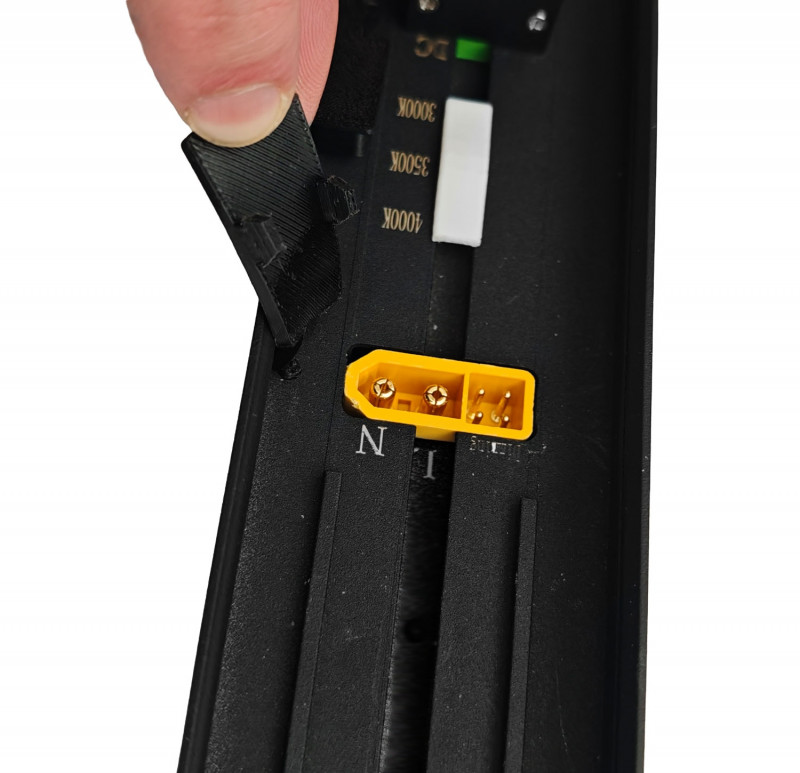

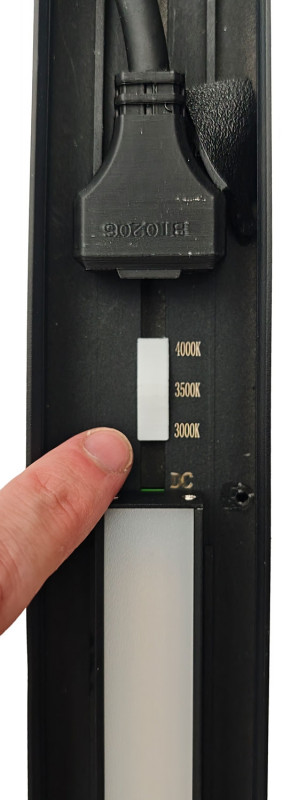

(we recommend removing the indirect LED module for this type of installation). An integrated switch allows the color temperature to be selected from 3000K, 3500K, or 4000K.
The luminaire supports dimming via DALI DT6 signals. Power is supplied via an optional pluggable, angled cable from the ceiling. Thanks to its prismatic diffuser, Durata Advance offers glare control
and meets the EN 12464-1 UGR19 standard for screen-based workstations.

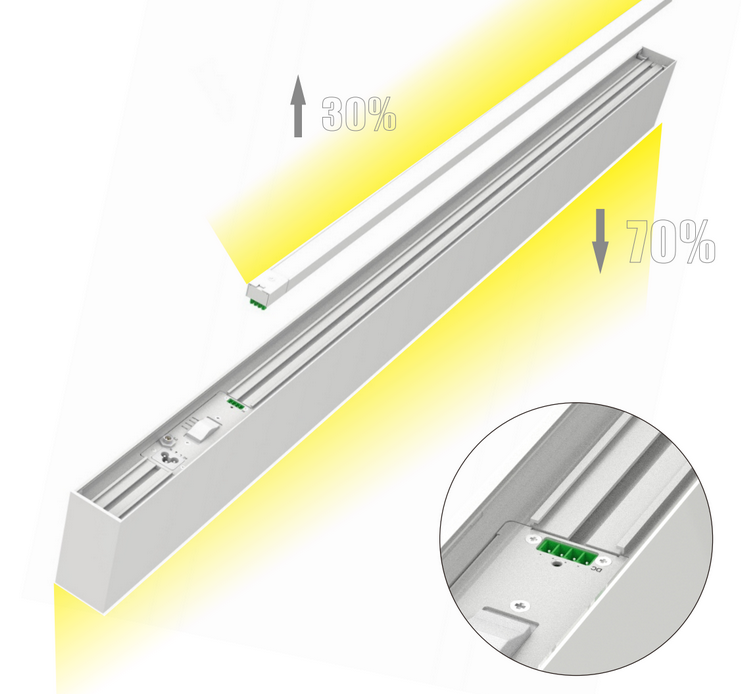

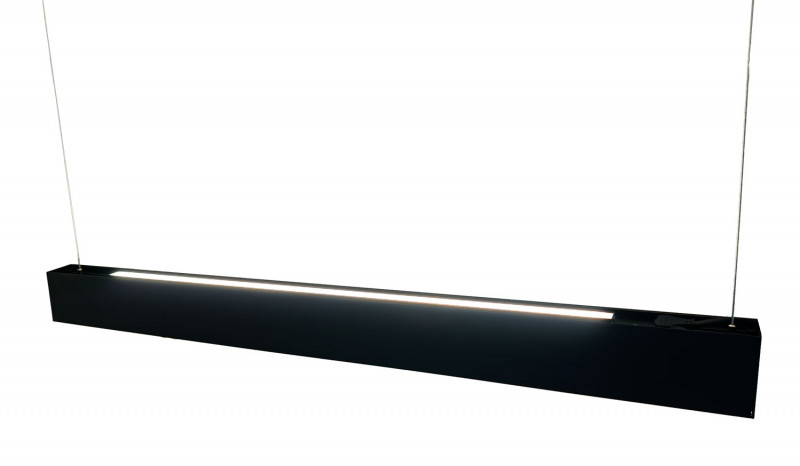

The downward light output features a narrow beam angle, while the pluggable indirect LED module provides a wide beam angle (>110°).
- High-quality extruded aluminum profile with a sophisticated matte finish.
- Excellent system performance and efficiency: >125 lm/W.
- Selectable color temperature (warm white or neutral white) to suit your office or conference room.
- High visual comfort for screen-based workstations and uniform desk illumination.
- Includes 2 x 2m suspension cables; power cable and connectors not included.
Applications:

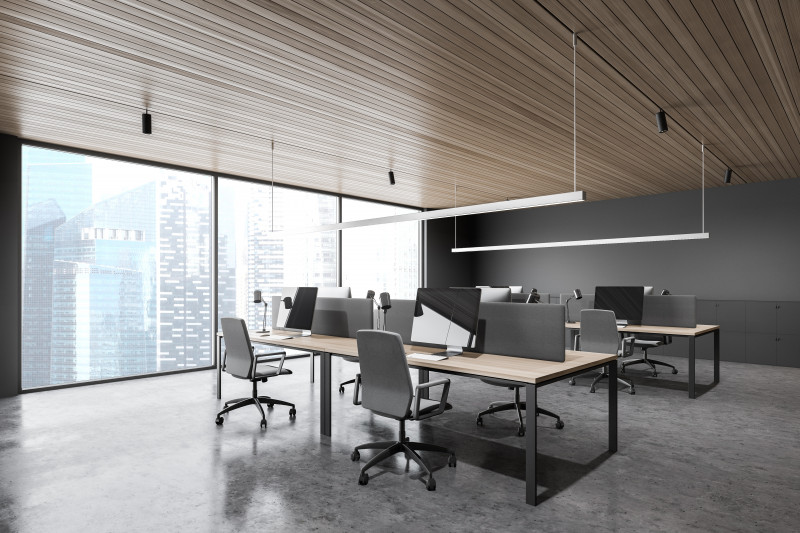

Offices, conference rooms, canteens, retail spaces, corridors, exhibition areas.
Related links to "DURATA Advance 40-830/840-4800LM UP/DOWN UGR DALI DIM"
Technical Details:
| Luminous Flux: | 4800 lm |
| Light Yield: | 120 lm/W |
| Light Temperature: | 3000, 3500, 4000 K |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 2x90 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | upward/downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| LED-Chip Manufacturer: | San'an |
| LED-Chip: | SMD 2835 |
| Number of LED: | 840 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s | |
| Input Current: | AC 200-240V, 200mA, 50/60Hz |
| Power Consumption: | 40 W |
| Contains Driver: | |
| Driver Manufacturer: | Boke |
| Power Factor (PF): | >0.95 |
| Input Driver: | plug connector |
| Output of Driver: | DC 24-42V, 1000mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -10°C - 40°C |
| Storage Temperature: | -20°C - 55°C |
| Dimensions: | 1500x50x100 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 20 (20 room side) |
| IK Code: | 05 |
| Housing Color | black matt |
| Housing Color (RAL Code): | similar 9005 |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | Interconnectable |
| Cover: | prismatic |
| Net Weight: | 3420 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 3.79 kg |
| Content Master Package: | 6 |
| Dimensions of Master Package: | 1535x200x265 mm |
| Weight Master Package: | 25,83 kg |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >60.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405429000 |
| Certifications | CE |
| Barcode: | 4250557827322 |
| Elegante, modulare Lichtlinienleuchte für Büros | |
| Dali 2 Dim CCT Select 3000, 3500, 4000K | |
| Zuleitung und 250cm Stahlseil enthalten enthalten | |
| 3600lm direkt, 1200lmindirekt | |
Hochwertige LED Pendelleuchte mit CCT & Power Select. Abstrahlverhalten UP/Down 90°. UGR <=19. more
Hochwertige LED Pendelleuchte mit CCT & Power Select. Abstrahlverhalten UP/Down 90°. UGR <=19.
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -10°C - 40°C
Lichtstrom: 4800 lm
LED-Leistung: 40 W
Leuchten-Lichtausbeute: 120 lm/W
Farbtemperatur: 3000, 3500, 4000 K
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 2x90°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 1500x50x100 mm
Montageart: Aufbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20 (IP20 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK05
Außenfarbe: black matt (9005)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: prismatisch
Nettogewicht: 3420 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 60000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -10°C - 40°C
Lichtstrom: 4800 lm
LED-Leistung: 40 W
Leuchten-Lichtausbeute: 120 lm/W
Farbtemperatur: 3000, 3500, 4000 K
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 2x90°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 1500x50x100 mm
Montageart: Aufbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20 (IP20 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK05
Außenfarbe: black matt (9005)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: prismatisch
Nettogewicht: 3420 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 60000 h
