DURATA Advance 40-830/840-4800LM UP/DOWN UGR DALI DIM
Order number: LG14394WH
Prices are only visible after login.
Availability: low stock
Dimensions
- Order number: : LG14394WH
- Luminous Flux: 4800 lm
- Power Draw: 40 W
- Light Color: CCT Select (3000, 3500, 4000 K)
- Input Current: AC 200-240V, 200mA, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20 (20 room side)
- LED-Chip: San'an SMD 2835
- Housing Color: white
- Dimensions: 1500x50x100 mm
- Warranty: 5 years
Linear LED lighting system with direct and indirect light output Durata... more
Product information "DURATA Advance 40-830/840-4800LM UP/DOWN UGR DALI DIM"
Linear LED lighting system with direct and indirect light output
Durata Advance is a modular linear lighting system designed for modern office environments. Each module can be used as a standalone luminaire or combined to form a continuous line of light.
Electrical and mechanical linear connectors can be ordered as optional accessories. While typically suspended via steel cables, the luminaire can also be mounted directly to the ceiling using clips

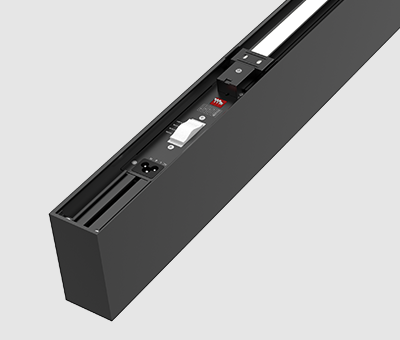

(we recommend removing the indirect LED module for this type of installation). An integrated switch allows the color temperature to be selected from 3000K, 3500K, or 4000K.
The luminaire supports dimming via DALI DT6 signals. Power is supplied via an optional pluggable, angled cable from the ceiling. Thanks to its prismatic diffuser, Durata Advance offers glare control
and meets the EN 12464-1 UGR19 standard for screen-based workstations.
The downward light output features a narrow beam angle, while the pluggable indirect LED module provides a wide beam angle (>110°).
- High-quality extruded aluminum profile with a sophisticated matte finish.
- Excellent system performance and efficiency: >125 lm/W.
- Selectable color temperature (warm white or neutral white) to suit your office or conference room.
- High visual comfort for screen-based workstations and uniform desk illumination.
- Includes 2 x 2m suspension cables; power cable and connectors not included.
Applications:
Offices, conference rooms, canteens, retail spaces, corridors, exhibition areas.
Related links to "DURATA Advance 40-830/840-4800LM UP/DOWN UGR DALI DIM"
Technical Details:
| Luminous Flux: | 4800 lm |
| LED Output: | 84 W |
| Light Yield: | 120 lm/W |
| Light Temperature: | 3000, 3500, 4000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | upward/downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| LED-Chip Manufacturer: | San'an |
| LED-Chip: | SMD 2835 |
| Number of LED: | 840 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s | |
| Input Current: | AC 200-240V, 200mA, 50/60Hz |
| Power Consumption: | 40 W |
| Contains Driver: | |
| Driver Manufacturer: | Boke |
| Power Factor (PF): | >0.95 |
| Input Driver: | plug connector |
| Output of Driver: | DC 24-42V, 1000mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -25°C - 35°C |
| Storage Temperature: | -40°C - 80°C |

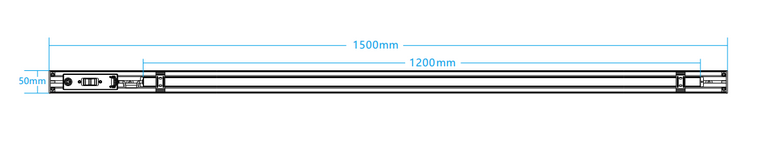

| Dimensions: | 1500x50x100 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 20 (20 room side) |
| IK Code: | 05 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | Interconnectable |
| Cover: | prismatic |
| Net Weight: | 3420 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 1555x60x110 |
| Weight incl. Packaging: | 3.79 kg |
| Content Master Package: | 6 |
| Dimensions of Master Package: | 1570x200x255 mm |
| Weight Master Package: | 19 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >60.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405429000 |
| Certifications | CE |
| Barcode: | 4250557827315 |
| Elegante, modulare Lichtlinienleuchte für Büros | |
| Dali 2 Dim CCT Select 3000, 3500, 4000K | |
| Zuleitung nicht enthalten | |
| 3600lm direkt,1200lm indirekt | |
| Power Select: | |
