DURATA Advance X Connector ca. 4W
Order number: LG14399WH
Available soon
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
Dimensions
- Order number: : LG14399WH
- Luminous Flux: 480 lm
- Power Draw: 4 W
- Light Color: CCT Select (3000, 3500, 4000 K)
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20 (20 room side)
- Beam Angle: 2x90°
- LED-Chip: San'an SMD 2835
- Housing Color: mattwhite

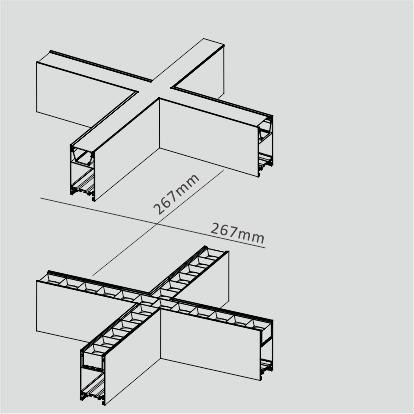

- Dimensions: 267x50x100 mm
- Warranty: 5 years
Linear LED light line system with direct and indirect light emission X shape... more
Product information "DURATA Advance X Connector ca. 4W"

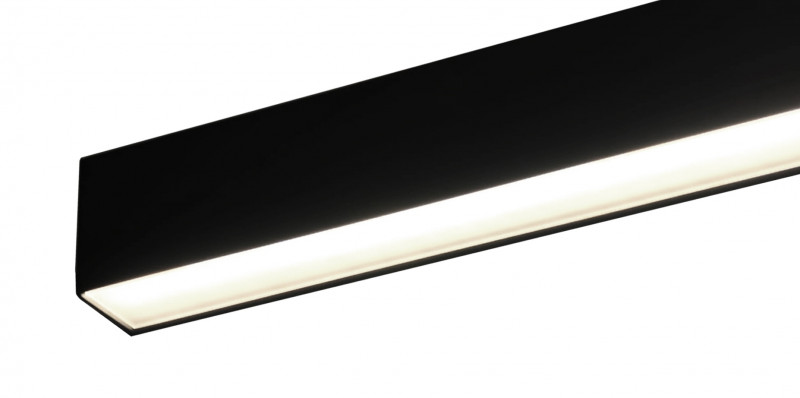

Linear LED light line system with direct and indirect light emission

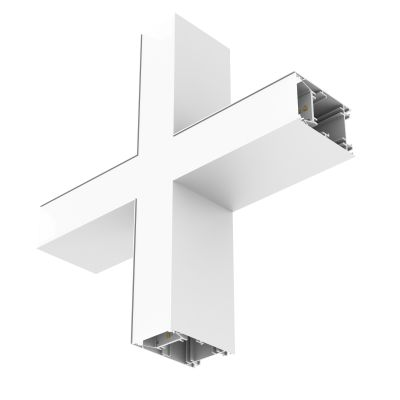

X shape connector for joining 4 Durata Advance luminaires. Electrical and mechanical connection
Direct und indirect illuminated with Dali signal, suitable for Durata Advance same features.

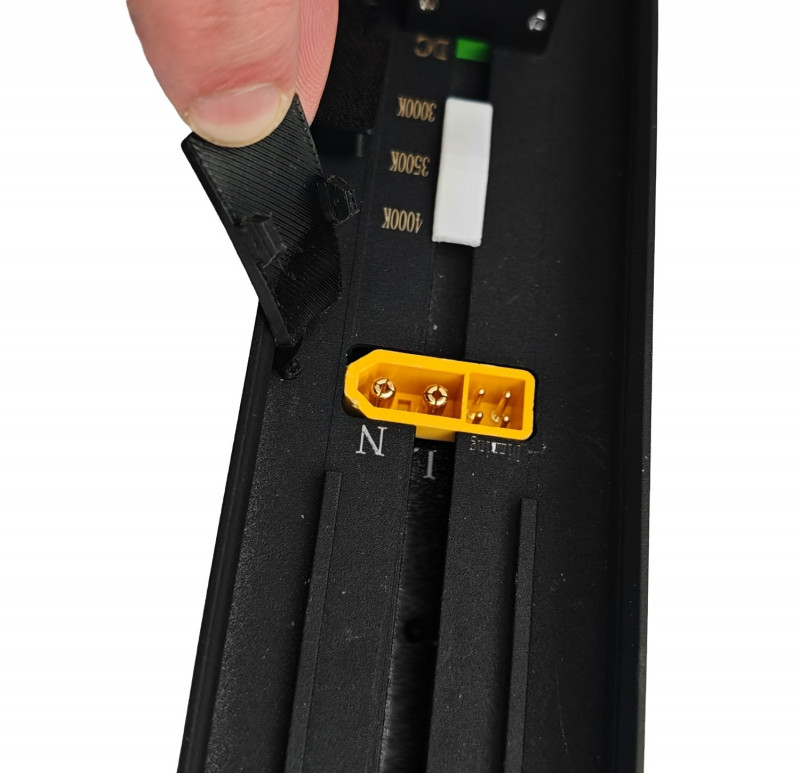

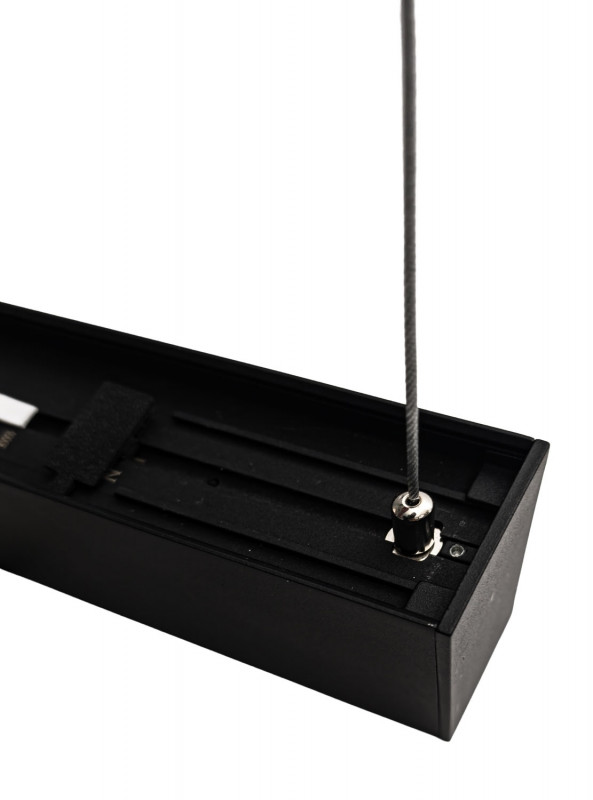

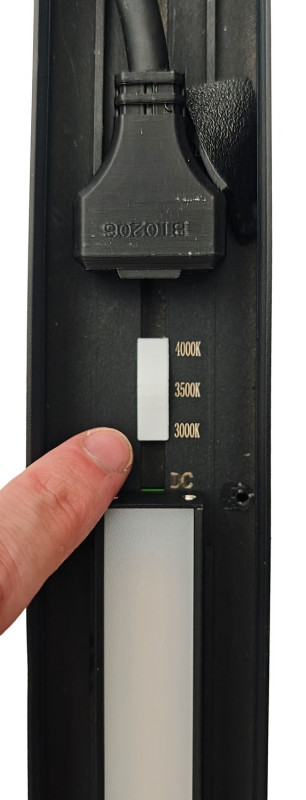

Durata Advance is a modular linear lighting system for modern office environments. Each module can be used as a single luminaire or modularly in a light line. Electrical and mechanical longitudinal connectors as well as end caps are included with the luminaires. The luminaire is typically suspended using steel cables but can also be mounted directly to ceilings using ceiling clips; for this, we recommend to remove the indirect LED module. The light colour can be selected between 3000K, 3500K, and 4000 Kelvin via an integrated switch. The luminaire can be dimmed via a DALI DT6 signal. Power is supplied via a pluggable, angled cable from the ceiling. Thanks to its prismatic diffuser, Durata Advance is glare-free and suitable for PC workstations according to EN 12464-1 UGR19 standard. The lower, direct light module has a narrow beam angle, while the indirect, pluggable LED module has a wide beam angle of >110°.
• High-quality extruded aluminum profile with an elegant, matte finish.
• Excellent system performance and efficiency: >125 lm/W
• Optimal light color for your office or conference room, selectable between warm white and natural white
• High visual comfort at computer workstations and even illumination of desks
Applications:
Office, conference room, cafeteria, retail space, walkways, showroom
Related links to "DURATA Advance X Connector ca. 4W"
Technical Details:
| Luminous Flux: | 480 lm |
| Light Yield: | 120 lm/W |
| Light Temperature: | 3000, 3500, 4000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 2x90 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | upward/downward |
| Dimmable: |  |
| Method of Dimming: | DALI,Push-Dim |
| LED-Chip Manufacturer: | San'an |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s | |
| Power Consumption: | 4 W |
| Contains Driver: | |
| Power Factor (PF): | >0.9 |
| Input Driver: | plug connector |
| Output of Driver: | DC 24-42V |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -10°C - 40°C |
| Storage Temperature: | -20°C - 55°C |
| Dimensions: | 267x50x100 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 20 (20 room side) |
| IK Code: | 05 |
| Housing Color | mattwhite |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | Interconnectable |
| Cover: | prismatic |
| Type of Packaging: | box |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405429000 |
| Certifications | CE |
| Elegante, modulare Lichtlinienleuchte für Büros | |
| Dali 2 Dim CCT Select 3000, 3500, 4000K | |
| Einspeisung über DC vom Treiber der Leuchte | |
| 70% downlight, 30% up light | |
