NOVALOOP Ring Light 80060-42-830-4400lm Dali
Order number: LG58910
Prices are only visible after login.
Availability: on request
Dimensions
- Order number: : LG58910
- Luminous Flux: 4400 lm
- Power Draw: 42 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20 (20 room side)
- Beam Angle: 120°
- LED-Chip: Everlight SMD 2835
- Housing Color: white
- Dimensions: 800x60 mm
- Warranty: 5 years
Suspended LED ring light with Dali Dimming Novaloop is a timelss, elegant... more
Product information "NOVALOOP Ring Light 80060-42-830-4400lm Dali"

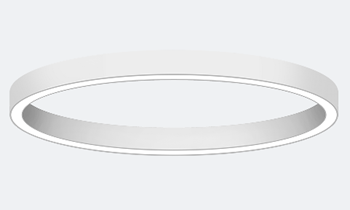

Suspended LED ring light with Dali Dimming

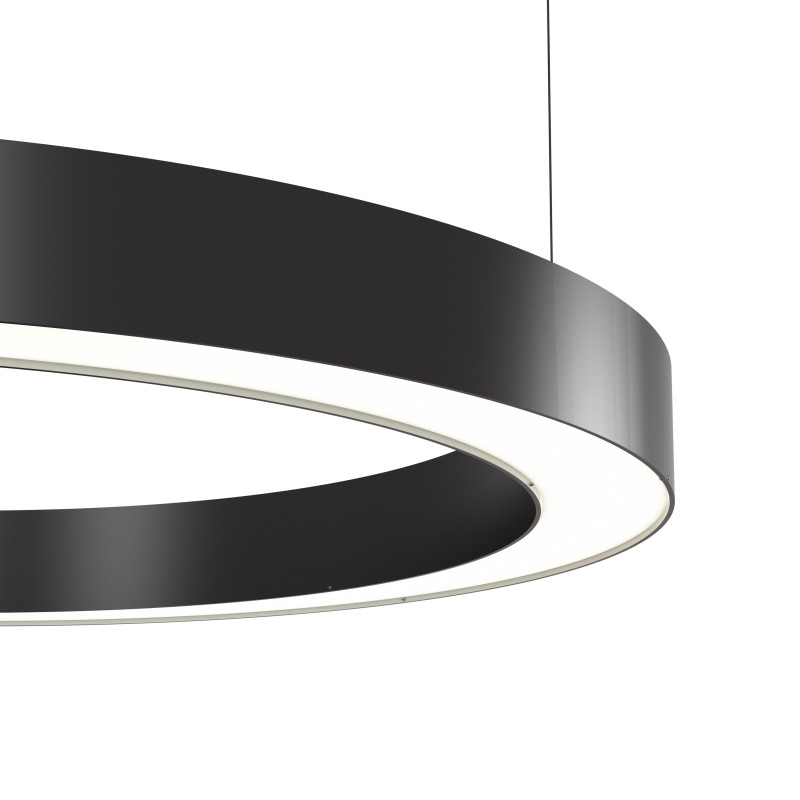

Novaloop is a timelss, elegant ring luminaire made of aluminum extrusion profile: 60mm heigh and 35mm wide. Available in different dimensions from 400, 600, 800, 1000, 1200 and 1500mm. Suspension wire is 2000mm long.

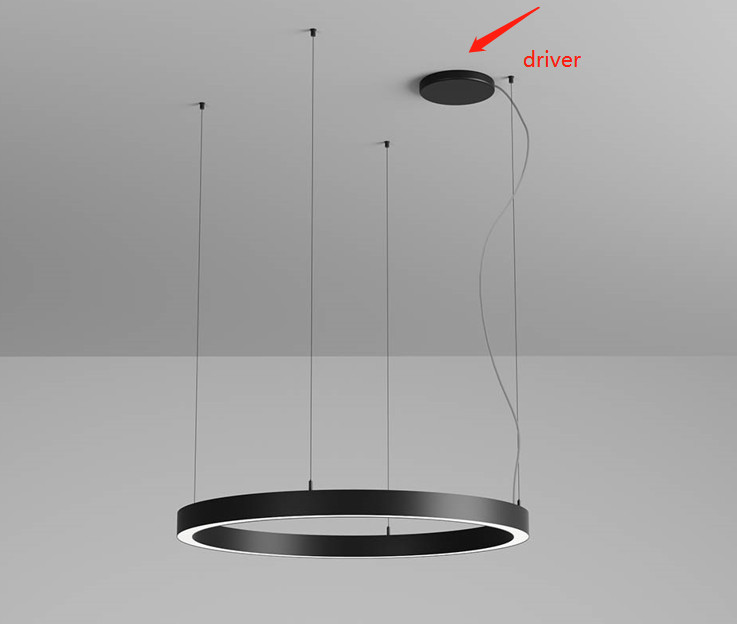

This special edition is made to be used with 3-phase Dali track rails. The power supply will be placed into the track rail and is almost hidden in the profile due to it´s flat design. You can select one of the 3 possible power phases by a selector switch. The light output can be dimmed by DALI 2.0 signal. Novaloop is available in black and white housing. The light distribution is in one direction downwards. Standard CCTs are 3000K and 4000K other colours can be offered on demand. Standad CRI is 80Ra, we can offer CRI>90 but with lower light output.
Applications:

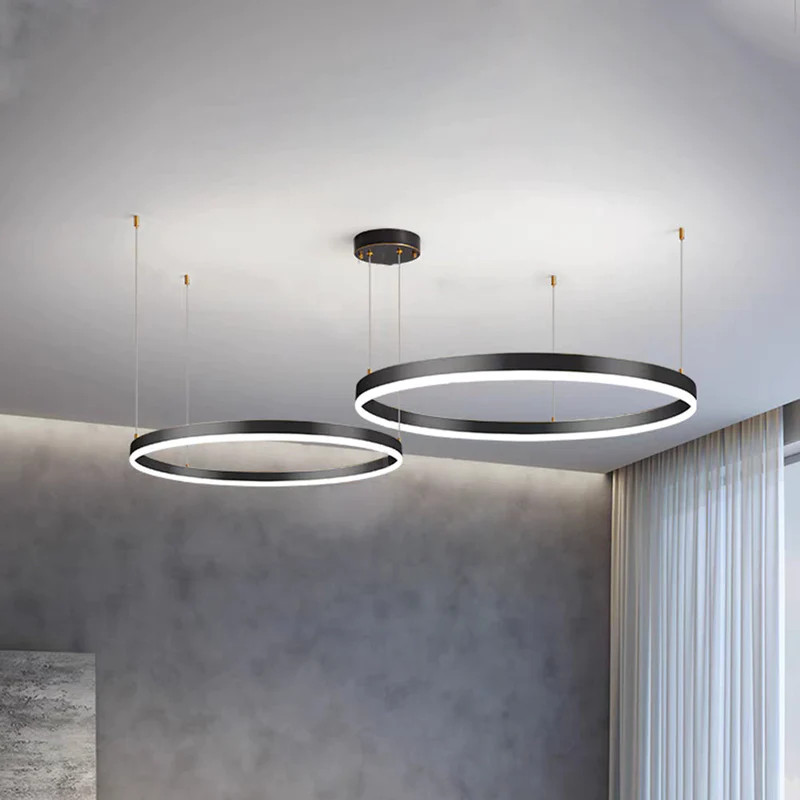

Residential, shop, hotel, restaurant, office, meeting rooms, supermarket, exhibition and galleries
Related links to "NOVALOOP Ring Light 80060-42-830-4400lm Dali"
Technical Details:
| Luminous Flux: | 4400 lm |
| Light Yield: | 105 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | DALI |
| LED-Chip Manufacturer: | Everlight |
| LED-Chip: | SMD 2835 |
| Number of LED: | 624 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 42 W |
| Contains Driver: | |
| Driver Manufacturer: | Powergear |
| Power Factor (PF): | >0.97 |
| Input Driver: | lighting track |
| Output of Driver: | DC 5-38V, 1050mA |
| CC/CV: | CC |
| Input Lamp: | Terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 35°C |
| Storage Temperature: | -20°C - 45°C |
| Dimensions: | 800x60 mm |
| Mounting: | Deckenabhängung |
| Montageart: | surface mounted |
| IP Class: | 20 (20 room side) |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Cover: | opal |
| Net Weight: | 3860 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 850x850x100 |
| Weight incl. Packaging: | 5.42 kg |
| Content Master Package: | 1 |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >79.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,LM80,SELV,D |
| Barcode: | 4250557825571 |
| 200cm Seilabhängung Dali Stromschienadapter | |
Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe in einem eleganten Design more
Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe in einem eleganten Design
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 35°C
Lichtstrom: 4400 lm
LED-Leistung: 42 W
Leuchten-Lichtausbeute: 105 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
UGR: 22
Lichtaustritt: direkt
Maße: 800x60 mm
Montageart: Aufbau (Deckenabhängung)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20 (IP20 raumseitig)
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: opal
Nettogewicht: 3860 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 79000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 35°C
Lichtstrom: 4400 lm
LED-Leistung: 42 W
Leuchten-Lichtausbeute: 105 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
UGR: 22
Lichtaustritt: direkt
Maße: 800x60 mm
Montageart: Aufbau (Deckenabhängung)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20 (IP20 raumseitig)
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: opal
Nettogewicht: 3860 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 79000 h
