Axea Eco 30-830-3100LM

Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays


  • LG10430
  • Luminous Flux: 3100 lm
  • Power Draw: 30 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 220 - 240V, 50/60Hz
  • Color Rendering Index (CRI): ≥84 Ra
  • IP Code: 20
  • Beam Angle: 36°
  • LED-Chip: Citizen COB
  • Housing Color: white
  • Dimensions: 155x120 mm
  • Cut-Out Dimensions: 145 mm
  • Warranty: 3 years

Luminous Flux


Power Draw

30 W

Light Color

3000 K

Color Rendering Index (CRI)

>84 Ra

IP Code

IP 20

Beam Angle


mounting type

Light Direction

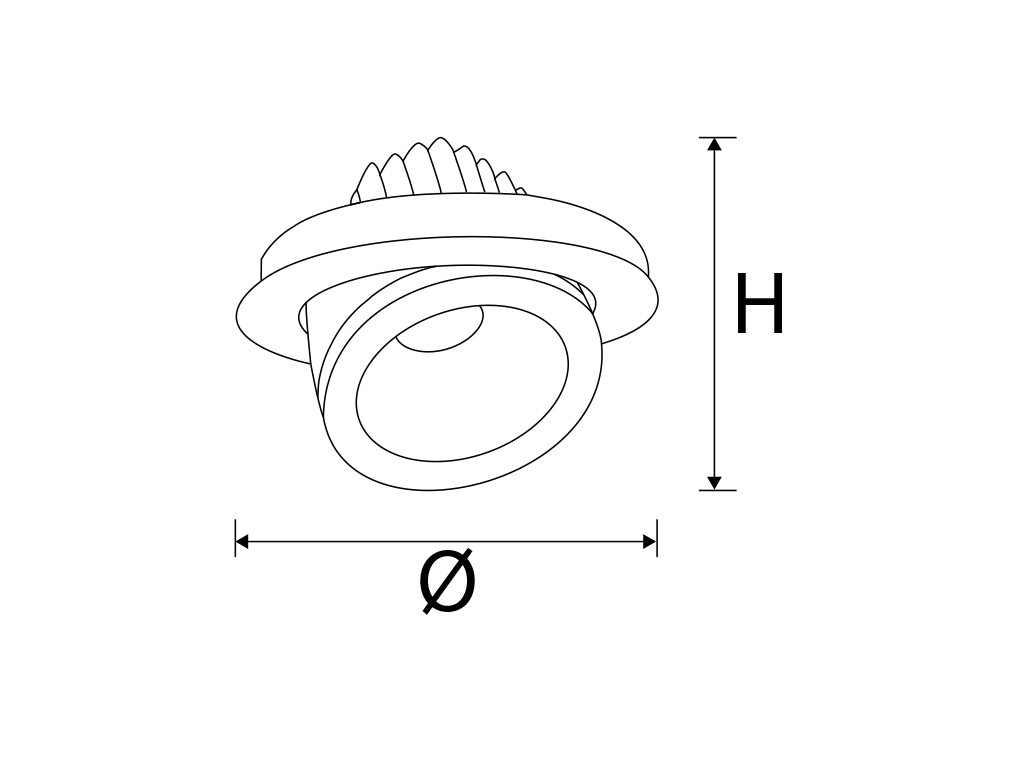

(ØxH) in mm


3 years

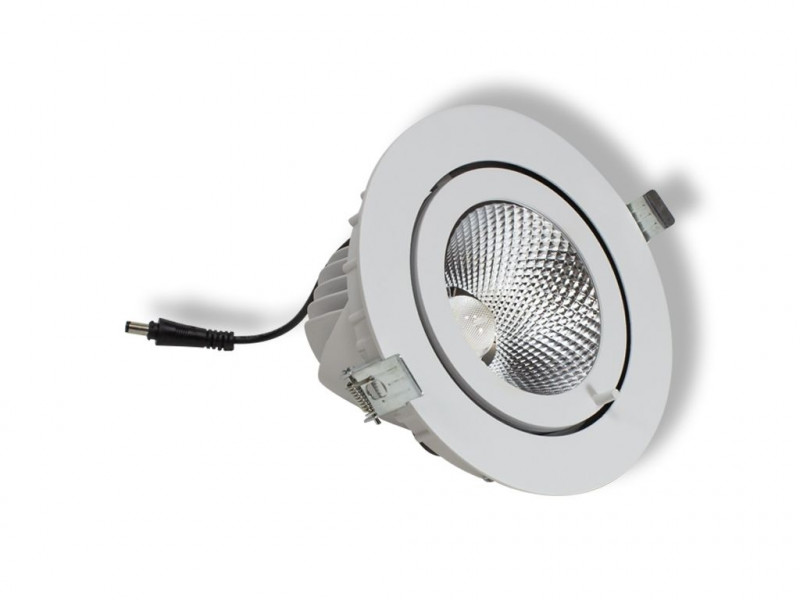

LED Downlight   Axea Eco Normally you find many downlights equipped with... more
Product information "Axea Eco 30-830-3100LM"
LED Downlight
Axea Eco
Normally you find many downlights equipped with 70W HQI discharge lamps in shops. Now you can replace those ones with the Litegear® Axea Eco LED downlight and save over 60% costs for electricity. The beamangle is 36°, idealy for lighting up big areas from short distance. The long linfespan will save a lot of follow up cost for light bulbs as you have them with traditional lights. Axea Eco is available in different light colours. We offer separate optics in 12° and 24° for this series often used in museums or for a dynamic product presentation.

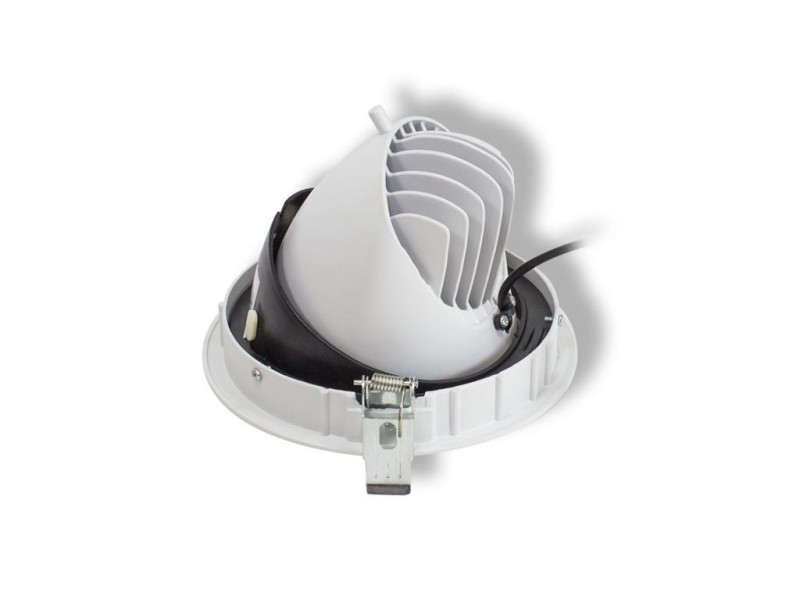

The stylish, timeless housing is generally painted in white but can be made in silver or black color on demand. LED luminairs from Litegear make your cost calculate able and produce less CO² for a greener environment. LED light produces much less heat, good to reduce costs for air condition to cool your surrounding. The heat of the chips can dissipate through big aluminum heat sinks with out any fan to avoid dust coming into the luminair.
  • Shop
  • Gas station shop
  • Museum
  • Supermarket
  • Car showroom
Related links to "Axea Eco 30-830-3100LM"
Technical Details:
Luminous Flux: 3100 lm
LED Output: 28 W
Light Yield: 103 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥84 Ra
Color Consistency (SDCM): <4
Beam Angle: 36 °
Light Emission: downward
LED-Chip Manufacturer: Citizen
Number of LED: 1
Ignition Time: <0,5 s
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 30 W
Contains Driver: ja

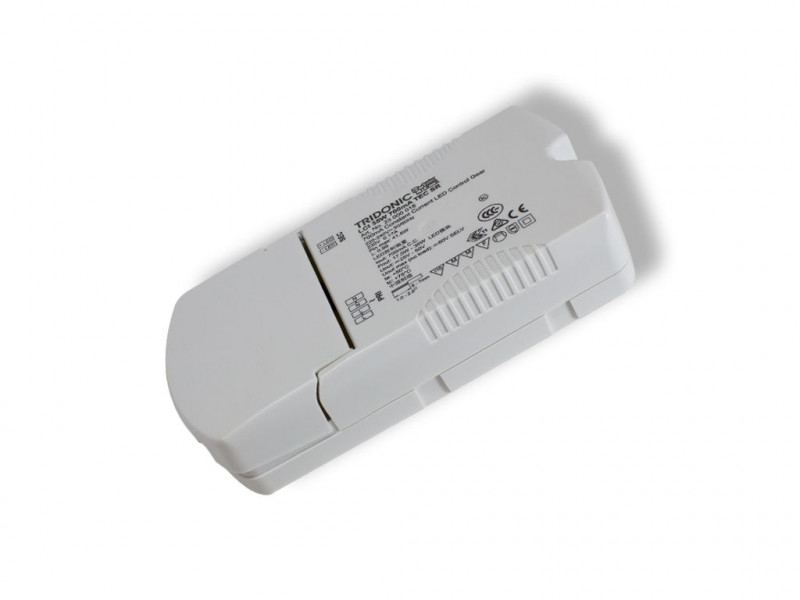

Driver Manufacturer: Tridonic
Power Factor (PF): >0.95
Input Driver: terminal
Output of Driver: DC 24 - 49V, 700mA
Input Lamp: plug connector
Switching Cycles: >100.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 40°C
Dimensions: 155x120 mm
Installation Depth: 175 mm
Cut-Out Dimensions: 145 mm
Mounting: Decke
Montageart: recessed
Pivot Range pan: 350 °
Pivot Range tilt: 80 °
IP Class: 20
Housing Color white
Housing Material: aluminum
Coating: lacquered
Net Weight: 757 g
Type of Packaging: box
Dimensions of Packaging: 165x140x165
Weight incl. Packaging: 0.891 kg
Content Master Package: 12
Dimensions of Master Package: 340x340x425 mm
Weight Master Package: 11 kg
Product Line: Advance Line
Warranty 3 years
Operating Hours: >50.000 h L70/B20
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,RoHS,EMC,LVD,D
Barcode: 4250557806266
