Axea Eco Move 40-830-3200lm
Order number: LG10437
Prices are only visible after login.
Last Stock
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG10437
- Luminous Flux: 3200 lm
- Power Draw: 38 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 36°
- LED-Chip: Sharp COB
- Housing Color: white
- Dimensions: 165x160 mm
- Cut-Out Dimensions: 145 mm
- Warranty: 3 years
LED Downlight Axea Eco Move Normally you find many downlights equipped... more
Product information "Axea Eco Move 40-830-3200lm"

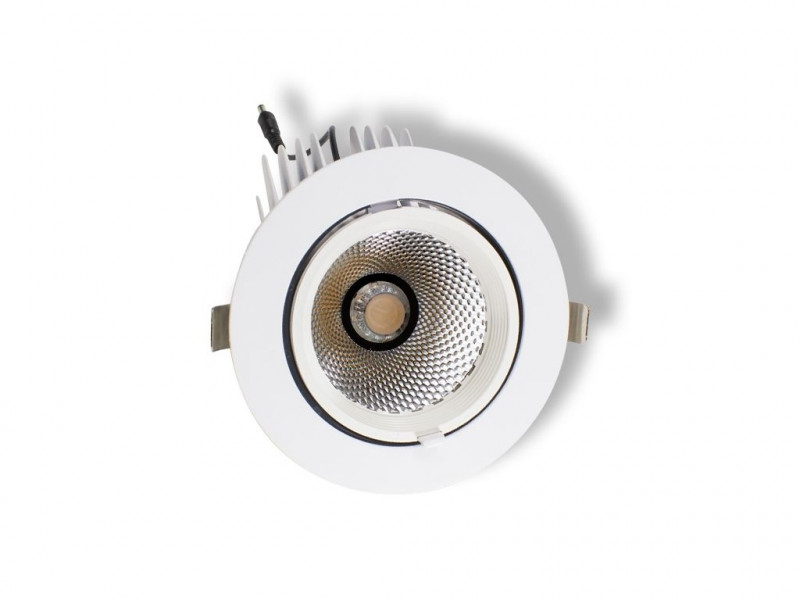

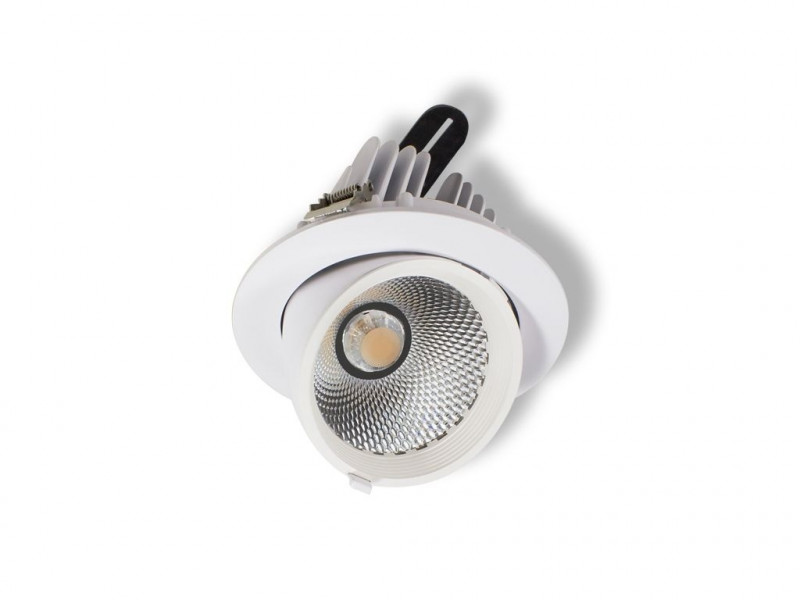

LED Downlight
Axea Eco Move
Normally you find many downlights equipped with 70W HQI discharge lamps in shops. Now you can replace those ones with the Litegear® Axea Eco Move downlight and save over 60% costs for electricity. The beamangle is 36°, idealy for lighting up big areas from short distance. The long linfespan will save a lot of follow up cost for light bulbs as you have them with traditional lights. Axea Eco Move is available in different light colours. We offer separate optics in 12° and 24° for this series often used in museums or for a dynamic product presentation.

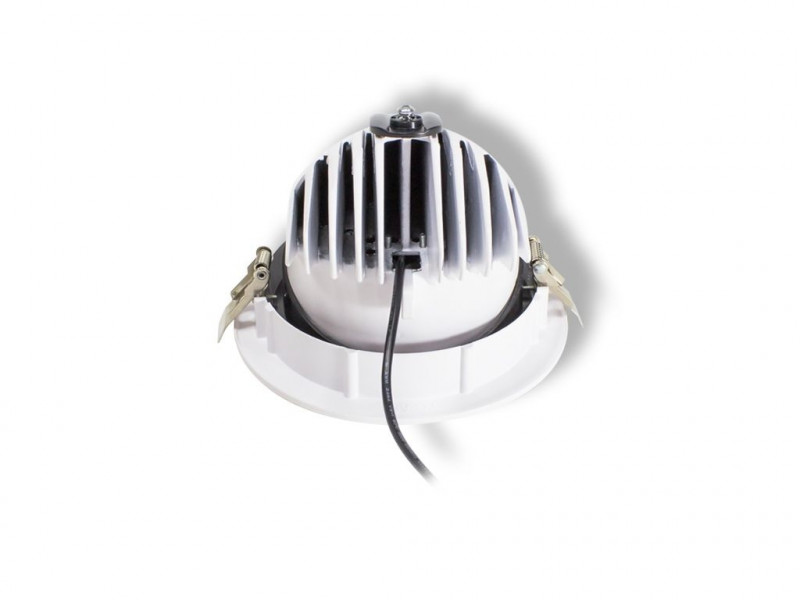

The stylish, timeless housing is generally painted in white but can be made in silver or black color on demand. LED luminairs from Litegear make your cost calculate able and produce less CO² for a greener environment. LED light produces much less heat, good to reduce costs for air condition to cool your surrounding. The heat of the chips can dissipate through big aluminum heat sinks with out any fan to avoid dust coming into the luminair.
Applications:
- Shop
- Gas station shop
- Museum
- Supermarket
- Car showroom
Related links to "Axea Eco Move 40-830-3200lm"
Technical Details:
| Luminous Flux: | 3200 lm |
| LED Output: | 35 W |
| Light Yield: | 84 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 36 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Sharp |
| LED-Chip: | COB |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 38 W |
| Contains Driver: |  |

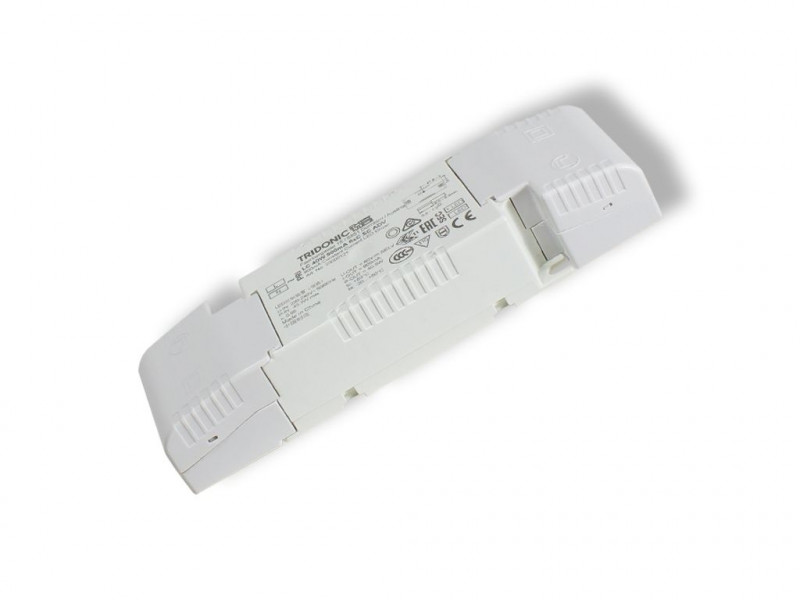

| Driver Manufacturer: | Tridonic |
| Power Factor (PF): | >0.92 |
| Input Driver: | terminal |
| Output of Driver: | DC 26 - 45V, 900mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 40°C |

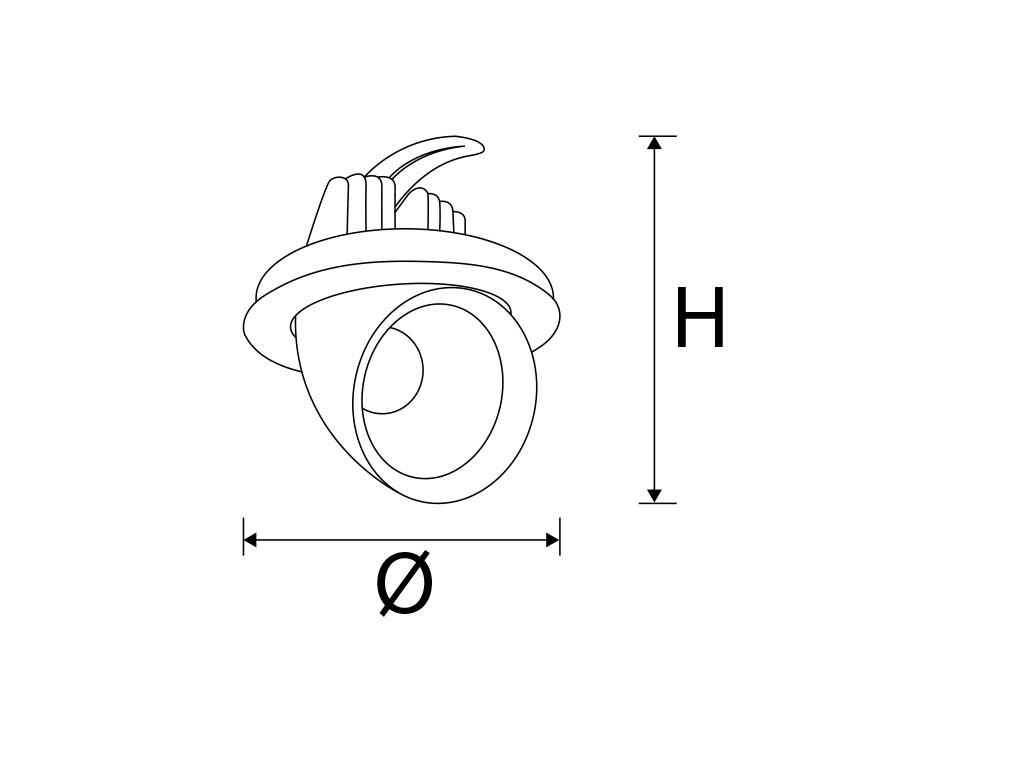

| Dimensions: | 165x160 mm |
| Installation Depth: | 160 mm |
| Cut-Out Dimensions: | 145 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| Pivot Range pan: | 350 ° |
| Pivot Range tilt: | 80 ° |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Net Weight: | 1127 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 185x185x150 |
| Weight incl. Packaging: | 1.279 kg |
| Content Master Package: | 12 |
| Dimensions of Master Package: | 575x380x310 mm |
| Weight Master Package: | 15,68 kg |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Operating Hours: | >35.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557808741 |
Rundes LED-Downlight für den Ersatz von 50-120W Leuchtmedium mit drehbarem & 80° ausklappbarem... more
Rundes LED-Downlight für den Ersatz von 50-120W Leuchtmedium mit drehbarem & 80° ausklappbarem Leuchtenkörper für 175mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 145 mm
Einbautiefe: 160 mm
Temperaturbereich: -20°C - 40°C
Lichtstrom: 3200 lm
LED-Leistung: 38 W
Leuchten-Lichtausbeute: 84 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 36°
Lichtaustritt: direkt
Maße: 165x160 mm
Montageart: Einbau (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Nettogewicht: 1127 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 35000 h
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 145 mm
Einbautiefe: 160 mm
Temperaturbereich: -20°C - 40°C
Lichtstrom: 3200 lm
LED-Leistung: 38 W
Leuchten-Lichtausbeute: 84 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 36°
Lichtaustritt: direkt
Maße: 165x160 mm
Montageart: Einbau (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Nettogewicht: 1127 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 35000 h
