Axea L 6-20-930-2180LM max. 106lm/W
Order number: LG10477
Available soon
Prices are only visible after login.
Availability: on request
Dimensions
- Order number: : LG10477
- Luminous Flux: 1990 lm
- Power Draw: 20 W
- Light Color: warmwhite (3000 K)
- Color Rendering Index (CRI): ≥90 Ra
- IP Code: 20 (20 room side)
- Beam Angle: 38°
- LED-Chip: JUN CAN COB
- Housing Color: white
- Dimensions: 102x80 mm
- Cut-Out Dimensions: 90 mm
- Warranty: 5 years

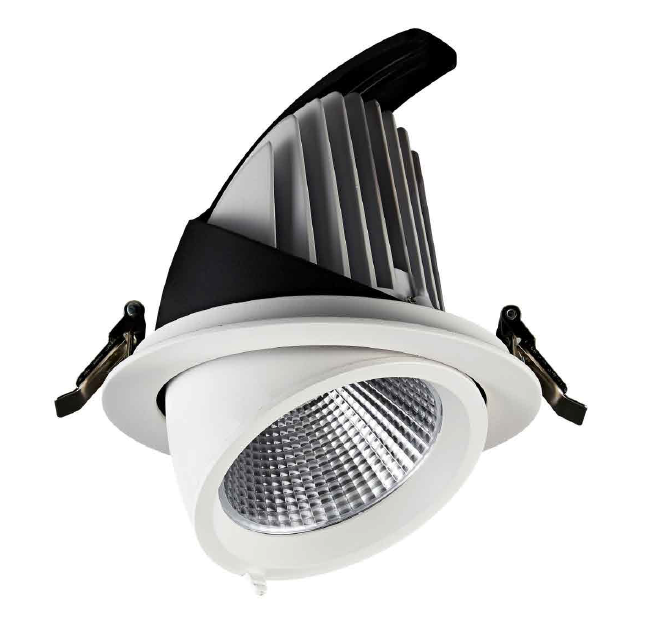

LED Downlight Axea L Normally you find many downlights equipped with 35W HIT... more
Product information "Axea L 6-20-930-2180LM max. 106lm/W"
LED Downlight
Axea L
Normally you find many downlights equipped with 35W HIT discharge lamps in shops. Now you can replace those ones with the Litegear® Axea L LED downlight and save over 60% costs for electricity. The beamangle is 38°, idealy for lighting up big areas from short distance. The long linfespan will save a lot of follow up cost for light bulbs as you have them with traditional lights. Axea L is available in different light colours. We offer separate optics in 12° and 24° for this series often used in museums or for a dynamic product presentation.
The stylish, timeless housing is generally painted in white but can be made in silver or black color on demand. LED luminairs from Litegear make your cost calculate able and produce less CO² for a greener environment. LED light produces much less heat, good to reduce costs for air condition to cool your surrounding. The heat of the chips can dissipate through big aluminum heat sink.
Please order a suitable LED-driver 36V 150-550mA max. 20W!
Applications:
- Shop
- Gas station shop
- Museum
- Supermarket
- Car showroom
Related links to "Axea L 6-20-930-2180LM max. 106lm/W"
Technical Details:
| Luminous Flux: | 1990 lm |
| LED Output: | 18 W |
| Light Yield: | 100 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥90 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 38 ° |
| Swappable Reflector: |  |
| Light Emission: | downward |
| LED-Chip Manufacturer: | JUN CAN |
| LED-Chip: | COB |
| Number of LED: | 1 |
| Ignition Time: | <0,5 s |
| Power Consumption: | 20 W |
| Contains Driver: | |
| Input Driver: | plug connector |
| Output of Driver: | DC 36V, 150-550mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 102x80 mm |
| Installation Depth: | 70 mm |
| Cut-Out Dimensions: | 90 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| Pivot Range pan: | 350 ° |
| Pivot Range tilt: | 80 ° |
| IP Class: | 20 (20 room side) |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Cover: | clear |
| Net Weight: | 240 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 455x410x400 |
| Weight incl. Packaging: | 0.296 kg |
| Content Master Package: | 36 |
| Dimensions of Master Package: | 455x410x400 mm |
| Weight Master Package: | 10,64 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B30 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,D |
| Barcode: | 4250557826011 |
| Variabler Eingangsstrom: 150-550mA/6-20W | |
| Sehr gute Farbwiedergabe CRI>90Ra | |
| System efficiency: max. 106lm/W@12W | |
| Leuchte wird ohne EVG/Treiber geleifert! | |
| Luminaire without LED-driver! | |
Rundes LED-Downlight für den Ersatz von 50-120W Leuchtmedium mit drehbarem & 80° ausklappbarem... more
Rundes LED-Downlight für den Ersatz von 50-120W Leuchtmedium mit drehbarem & 80° ausklappbarem Leuchtenkörper für 145mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 90 mm
Einbautiefe: 70 mm
Temperaturbereich: -20°C - 45°C
Lichtstrom: 1990 lm
LED-Leistung: 20 W
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 38°
Lichtaustritt: direkt
Maße: 102x80 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20 (IP20 raumseitig)
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: klar
Nettogewicht: 240 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B30): 50000 h
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 90 mm
Einbautiefe: 70 mm
Temperaturbereich: -20°C - 45°C
Lichtstrom: 1990 lm
LED-Leistung: 20 W
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 38°
Lichtaustritt: direkt
Maße: 102x80 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20 (IP20 raumseitig)
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: klar
Nettogewicht: 240 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B30): 50000 h
