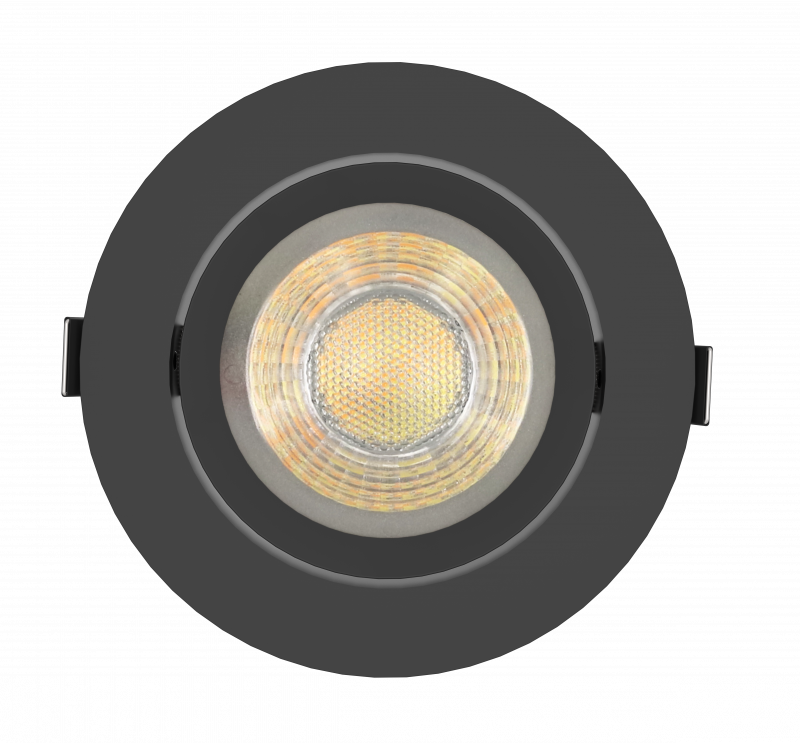

BREVIA SWING MKII 8-927-957-720lm Triac Dim GST-18 Terminal Box
Order number: LG12060
Available soon
Prices are only visible after login.
Availability: Delivery time 3-8 working days
Dimensions
- Order number: : LG12060
- Luminous Flux: 720 lm
- Power Draw: 8 W
- Light Color: CCT Select (2700, 3000, 4000, 5700 K)
- Color Rendering Index (CRI): ≥90 Ra
- IP Code: 20 (44 room side)
- Beam Angle: 38°
- LED-Chip: SMD 2835
- Housing Color: black
- Dimensions: 90x25 mm
- Cut-Out Dimensions: 68-75 mm
- Warranty: 5 years
very flat recessed LED luminaire compact dimensions, robust housing... more
Product information "BREVIA SWING MKII 8-927-957-720lm Triac Dim GST-18 Terminal Box"

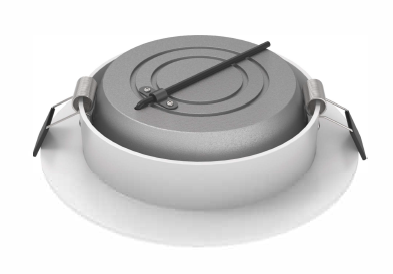

very flat recessed LED luminaire
- compact dimensions, robust housing made of aluminum just 24mm high
- selectable CCT color via switch: 2700/3000/4000/5700K BI-color COB with high CRI >90
- flickerfree light
- widely protected against dust and humidity (frontside IP44)
- dimmable via TRIAC: trailing- or leading edge dimming
- Suitable for 68-75mm cutouts

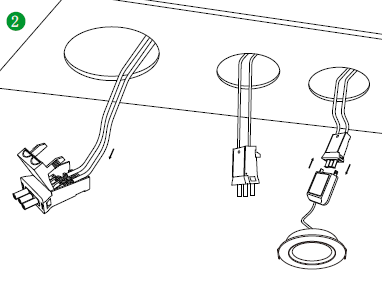

- Easy installation via included connection terminal with relief
- built-in LED driver
- tiltable light beam +/-10°

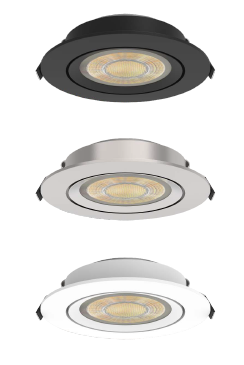

- available in 3 different housing colors: black, white, satin-nickel
Applications:
- Entrance hall, sanitary facilities, offices, living rooms, hotel, shop
Related links to "BREVIA SWING MKII 8-927-957-720lm Triac Dim GST-18 Terminal Box"
Technical Details:
| Luminous Flux: | 720 lm |
| Light Yield: | 94 lm/W |
| Light Temperature: | 2700, 3000, 4000, 5700 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥90 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 38 ° |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | "Triac Phasenan-/abschnitt" |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Power Consumption: | 8 W |
| Contains Driver: | |
| Driver Manufacturer: | Litegear |
| Input Driver: | Stecker GST-18 |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Stecker |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Loop-Through Cabling: | |
| Ambient Temperature (TA): | -10°C - 35°C |
| Storage Temperature: | -20°C - 50°C |
| Dimensions: | 90x25 mm |
| Installation Depth: | 26 mm |
| Cut-Out Dimensions: | 68-75 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| Pivot Range tilt: | 60 ° |
| IP Class: | 20 (44 room side) |
| IK Code: | 06 |
| Housing Color | black |
| Housing Material: | Aluminium/PC |
| Coating: | powder-coated |
| Special Feature of Housing: | Terminalbox |
| Cover: | Lens |
| Net Weight: | 230 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.28 kg |
| Content Master Package: | 48 |
| Dimensions of Master Package: | 410x315x360 mm |
| Weight Master Package: | 13 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >54.000 h L80/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 94051190 |
| Certifications | CE |
| externer Treiber + Terminal Box mit Wieland® GST18 | |
| Power Select: 5/8W max. 94lm/w @ 5W/CRI90 | |
| dimmbar mediums Phasenan- / -abschnitt Dimmer | |
| CCT select: 2700K, 3000K, 4000K, 5700K | |
Runder LED-Einbauspot mit wählbarer Lichtfarbe und hoher Farbwiedergabe für 72-76mm Deckenausschnitt more
Runder LED-Einbauspot mit wählbarer Lichtfarbe und hoher Farbwiedergabe für 72-76mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Deckenausschnitt: 68-75 mm
Einbautiefe: 26 mm
Temperaturbereich: -10°C - 35°C
Lichtstrom: 720 lm
LED-Leistung: 8 W
Leuchten-Lichtausbeute: 94 lm/W
Farbtemperatur: 2700, 3000, 4000, 5700 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 38°
Lichtaustritt: direkt
Maße: 90x25 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20 (IP44 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK06
Außenfarbe: black
Gehäusematerial: Aluminium/PC
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 230 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B50): 54000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Deckenausschnitt: 68-75 mm
Einbautiefe: 26 mm
Temperaturbereich: -10°C - 35°C
Lichtstrom: 720 lm
LED-Leistung: 8 W
Leuchten-Lichtausbeute: 94 lm/W
Farbtemperatur: 2700, 3000, 4000, 5700 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 38°
Lichtaustritt: direkt
Maße: 90x25 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20 (IP44 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK06
Außenfarbe: black
Gehäusematerial: Aluminium/PC
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 230 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B50): 54000 h
