CIELLA Deckeneinbauring 165-180mm Ausschnitt

LG12001
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG12001
  • IP Code: 20
  • Housing Color: white
  • Dimensions: 190x46 mm
  • Cut-Out Dimensions: 160-180 mm
  • Warranty: 5 years

IP Code

IP 20

mounting type

Dimensions

(ØxH) in mm
190x46

Warranty

5 years

LED downlight ring   Ciella recessed ceiling ring to adapt the optional Ciella... more
Product information "CIELLA Deckeneinbauring 165-180mm Ausschnitt"
LED downlight ring

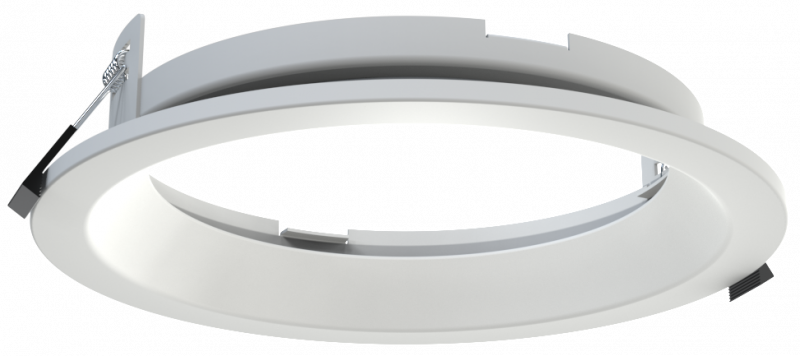

Ciella recessed ceiling ring to adapt the optional Ciella LED-Modul: 190mm, for cutouts 160-180mm

Description of Ciella LED uni / systemt:

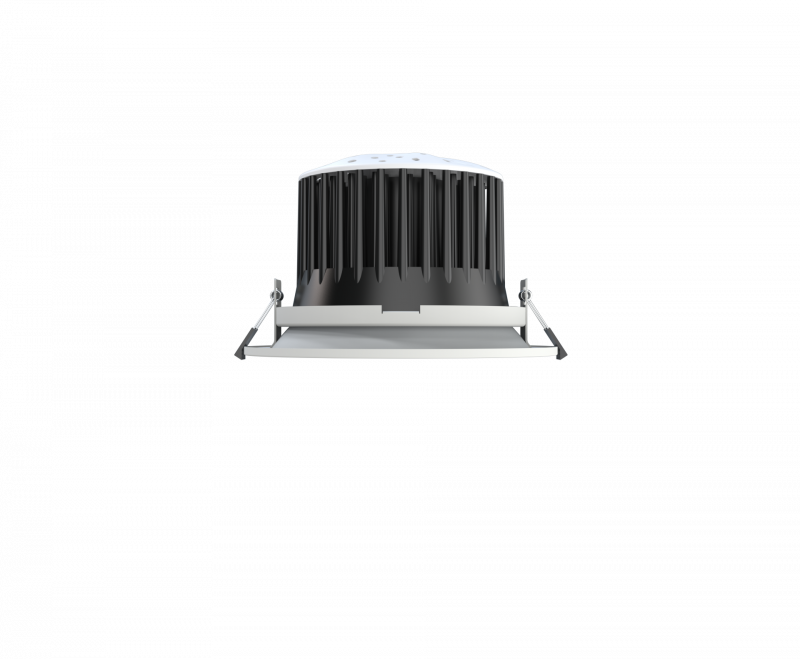

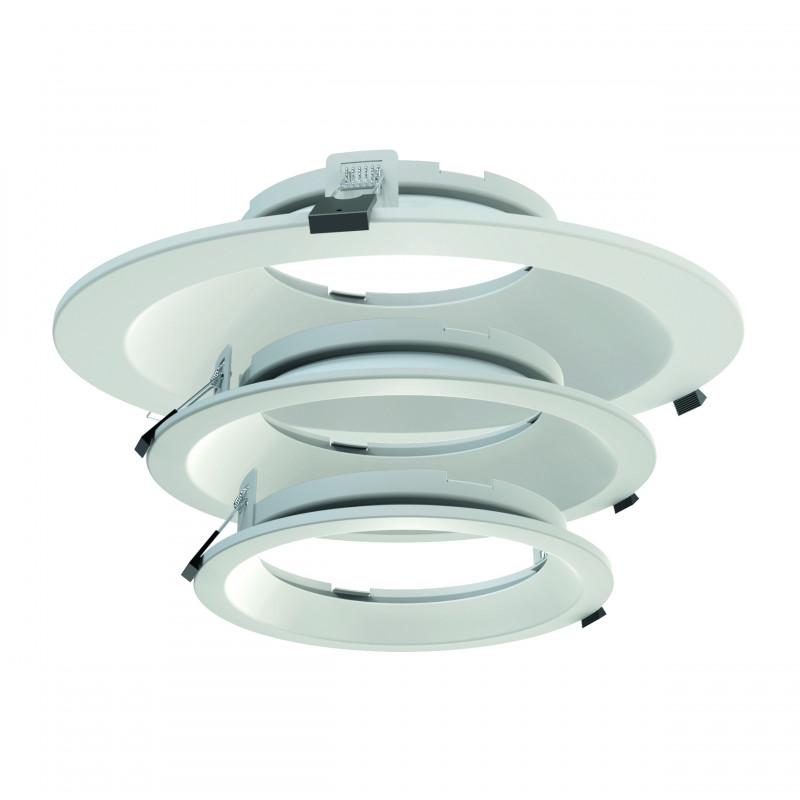

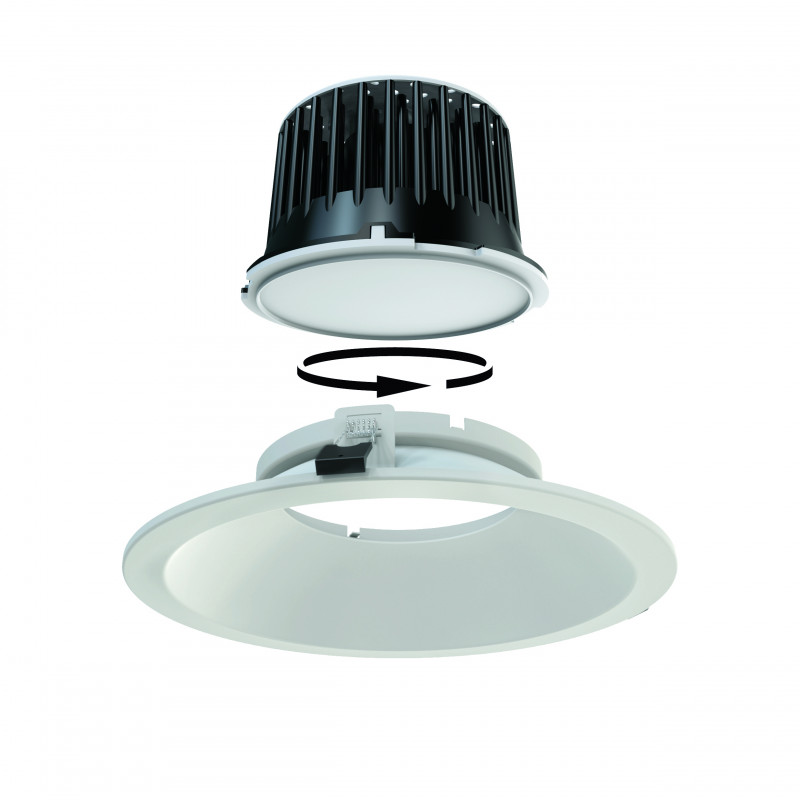

Litegear® Ciella LED module for combination with different ceiling mounting rings from 190 to 305mm in diameter. LED unit with switchable light colour: 3000, 3500, 4000 Kelvin using a switch. High system efficiency >120lm/W, thus Bafa eligible for refurbishment of existing buildings. Pluggable LED power supply with removable terminal box for through-wiring. The Ciella system is a lighting system for the renovation of ceiling openings of different sizes. You will receive 4 different ceiling rings for 160-180mm, 200-220mm, 250-270mm, 280-290mm ceiling cut-outs. The LED module is screwed onto the ceiling rings without tools. Power selectable LEd driver from 350-700mA 15-30W in steps.

Areas of application: Refurbishment of built-in lights with energy-saving lamps. once or twice 18-36W CFL G23/G24.

Corridors, offices, sales areas, walkways, hotels, sanitary areas, changing rooms, warehouses, ancillary rooms, restaurants, canteens
Related links to "CIELLA Deckeneinbauring 165-180mm Ausschnitt"
Technical Details:

Dimensions: 190x46 mm
Installation Depth: 144 mm
Cut-Out Dimensions: 160-180 mm
Mounting: Decke
Montageart: recessed
IP Class: 20
Housing Color white
Housing Material: aluminum
Coating: lacquered
Net Weight: 192 g
Type of Packaging: box
Weight incl. Packaging: 0.266 kg
Content Master Package: 40
Dimensions of Master Package: 620x406x406 mm
Weight Master Package: 11,56 kg
Product Line: Advance Line
Warranty 5 years
Disposal Obligation: ja
Customs Tariff Number: 9405499090
Certifications CE,D
Barcode: 4250557824109
Deckenring zu Ciella LED-Modul 190mm
modulare Bauweise, kombinierbar mit LED-Modul 30W
