Preview: Citana S 9-CCT-800LM Triac Dim 113 mm Ø

Product Info (PDF)

Order number: LG12062

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG12062
Luminous Flux: 800 lm
Power Draw: 9 W
Light Color: CCT Select (3000,4000,6000 K)
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20

Beam Angle: 110°
LED-Chip: SMD 2835
Housing Color: white
Dimensions: 113x72,5 mm
Cut-Out Dimensions: 90-102 mm
Warranty: 3 years

Luminous Flux

800
lm

Power Draw

9 W

Light Color

3000,4000,6000 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

110°

mounting type

Light Direction

Dimensions

(ØxH) in mm
113x72,5

Warranty

3 years

The light source cannot be replaced

The driver cannot be replaced

Recessed LED luminaire with color select compact dimensions, robust... more

Close menu

Product information "Citana S 9-CCT-800LM Triac Dim 113 mm Ø"

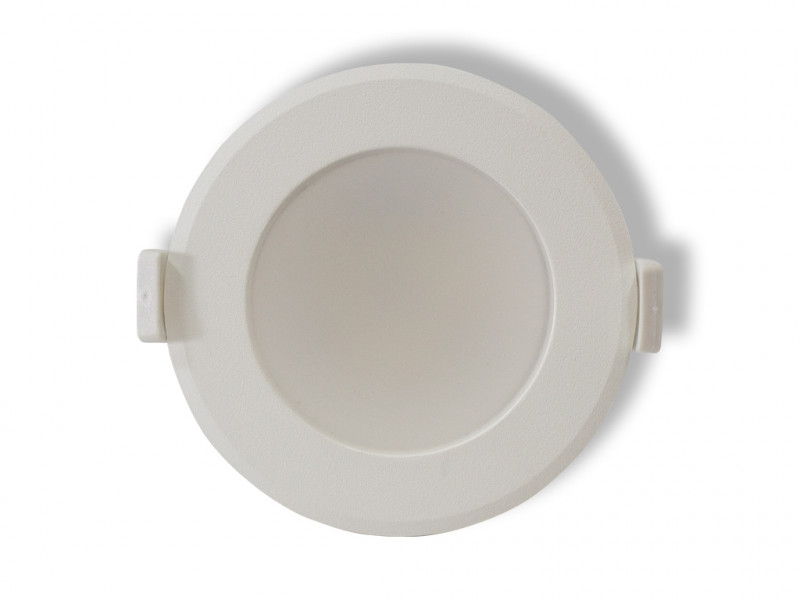

Recessed LED luminaire with color select

compact dimensions, robust housing made of thermal plastic
dimmable via TRIAC: trailing- or leading edge dimming

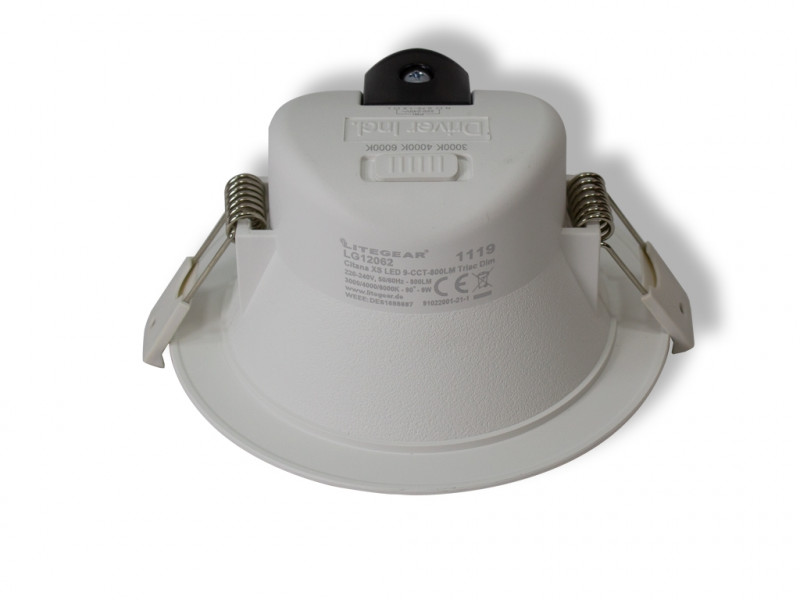

Selectable light color via switch CCT select: 3000, 4000, 6000 Kelvin
Suitable for 68mm cutouts

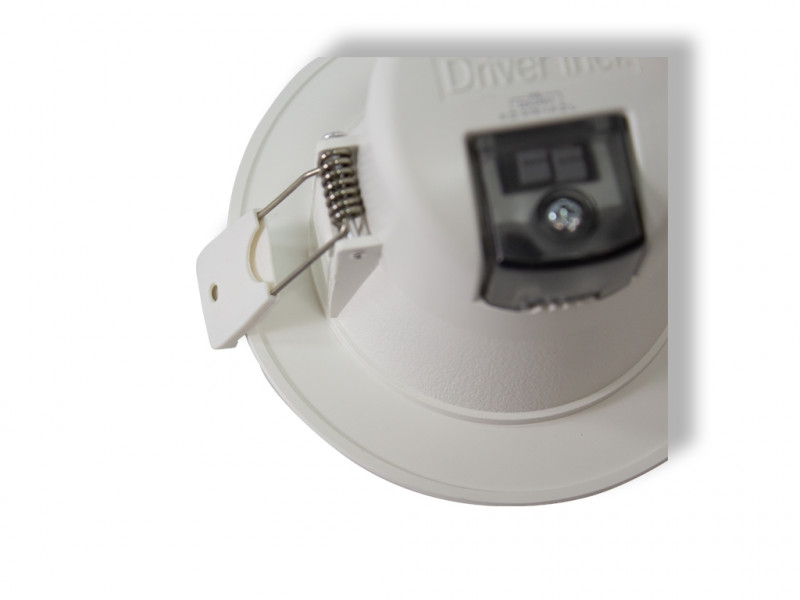

Easy installation via integrated connection terminal with relief
built-in ballast (driver)
soft beamangel, large-area illumination

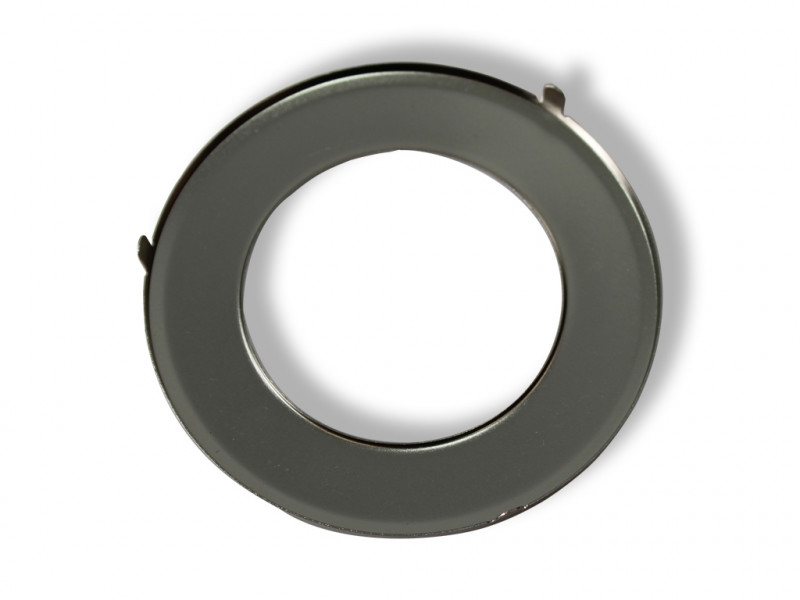

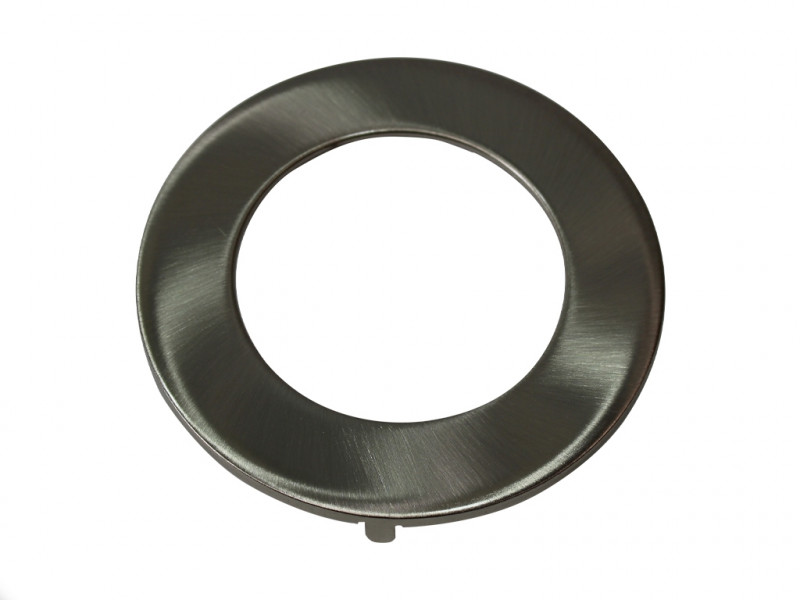

incl. exchangeable, metal cover in dark chrome finish

Applications:

Entrance hall, sanitary facilities, offices, living rooms, hotel

Related links to "Citana S 9-CCT-800LM Triac Dim 113 mm Ø"

Zurück

Technical Details:

Luminous Flux:	800 lm
LED Output:	8 W
Light Yield:	89 lm/W
Light Temperature:	3000,4000,6000 K
Light Color:	CCT Select
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<5
Beam Angle:	110 °
Unified Glare Rating (UGR):	30
Light Emission:	downward
Dimmable:
Method of Dimming:	"Triac Phasenan-/abschnitt"
LED-Chip:	SMD 2835
Ignition Time:	<0,5 s

Power Consumption:	9 W
Contains Driver:
Power Factor (PF):	>0.85
Input Driver:	terminal
CC/CV:	CC
Input Lamp:	terminal
Switching Cycles:	>30.000
Electrical Protection Class:	II
Ambient Temperature (TA):	-10°C - 40°C
Storage Temperature:	-20°C - 50°C

Dimensions:	113x72,5 mm
Installation Depth:	71 mm
Cut-Out Dimensions:	90-102 mm
Mounting:	Decke
Montageart:	recessed
IP Class:	20
Housing Color	white
Housing Material:	Thermoplastic
Special Feature of Housing:	IP 44 room side
Cover:	frosted
Net Weight:	144 g

Type of Packaging:	box
Dimensions of Packaging:	115x115x70
Weight incl. Packaging:	0.19 kg
Content Master Package:	40
Dimensions of Master Package:	480x375x260 mm
Weight Master Package:	8,19 kg

Product Line:	ECO Line
Warranty	3 years
Operating Hours:	>40.000 h L70/B30
Disposal Obligation:
Customs Tariff Number:	9405114090
Certifications	CE
Barcode:	4250557818450
CCT Select: Farbwahl 3000K, 4000K, 6000K

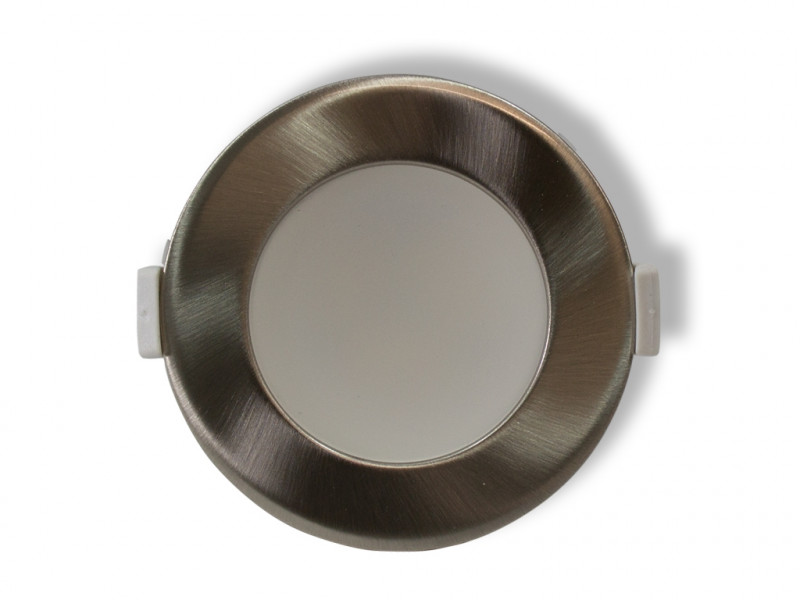

inkl. satin-nickel Metalring
integrierter Treiber Anschlussklemme
dimmbar mediums Phasenan- / -abschnitt Dimmer

Technical Data Sheet (PDF)

Runder LED-Einbauspot mit wählbarer Lichtfarbe und wechselbarer verchromter Metallblende für 68mm... more

Zurück

Runder LED-Einbauspot mit wählbarer Lichtfarbe und wechselbarer verchromter Metallblende für 68mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Deckenausschnitt: 90-102 mm
Einbautiefe: 71 mm
Temperaturbereich: -10°C - 40°C
Lichtstrom: 800 lm
LED-Leistung: 9 W
Leuchten-Lichtausbeute: 89 lm/W
Farbtemperatur: 3000,4000,6000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 110°
UGR: 30
Lichtaustritt: direkt
Maße: 113x72,5 mm
Montageart: Einbau (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Thermoplastic
Abdeckung: frost
Nettogewicht: 144 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B30): 40000 h
