Dola Square 35-830-2800LM BL
Order number: LG40153
Prices are only visible after login.
Last Stock
Availability: low stock
Dimensions
- Order number: : LG40153
- Luminous Flux: 2800 lm
- Power Draw: 35 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 36°
- LED-Chip: Citizen COB
- Housing Color: black

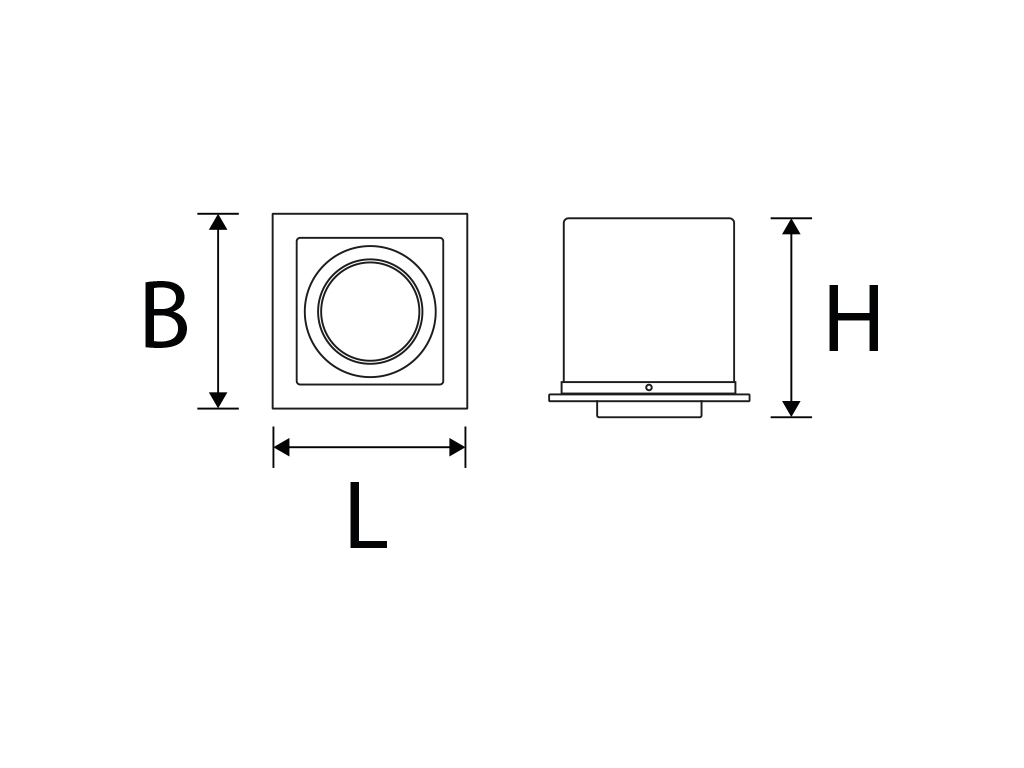

- Dimensions: 185x185x163 mm
- Cut-Out Dimensions: 163x163 mm
- Warranty: 3 years
LED Downlight Dola Square is a new stylish LED luminaire series from... more
Product information "Dola Square 35-830-2800LM BL"
LED Downlight

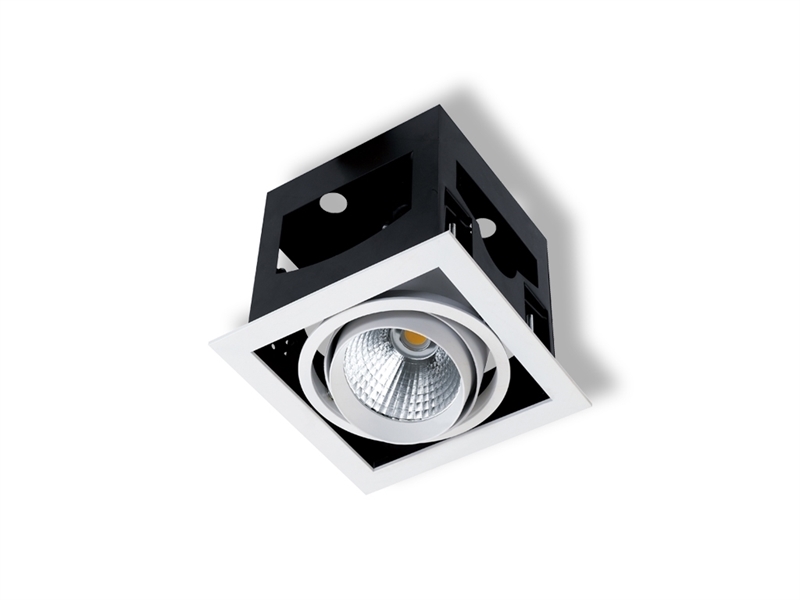

Dola Square is a new stylish LED luminaire series from Litegear® Germany. Dola Square is a integrateable downlight with square frame and adjustablecardanic holder. The beam can be adjusted on the x/y axis. Dola is ideal light source to illuminate shops, automotive stores, supermarket, galeries, lobbies and showrooms. Dola series is equipped with high quality components. A long and reliable lifespan guaranties low maintenance costs for users. On demand the downlights of this series can be ordered with dimmable LED drivers for Dali and 1-10V signal.
Related links to "Dola Square 35-830-2800LM BL"
Technical Details:
| Luminous Flux: | 2800 lm |
| LED Output: | 33 W |
| Light Yield: | 80 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 36 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Citizen |
| LED-Chip: | COB |
| Number of LED: | 1 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 35 W |
| Contains Driver: |  |

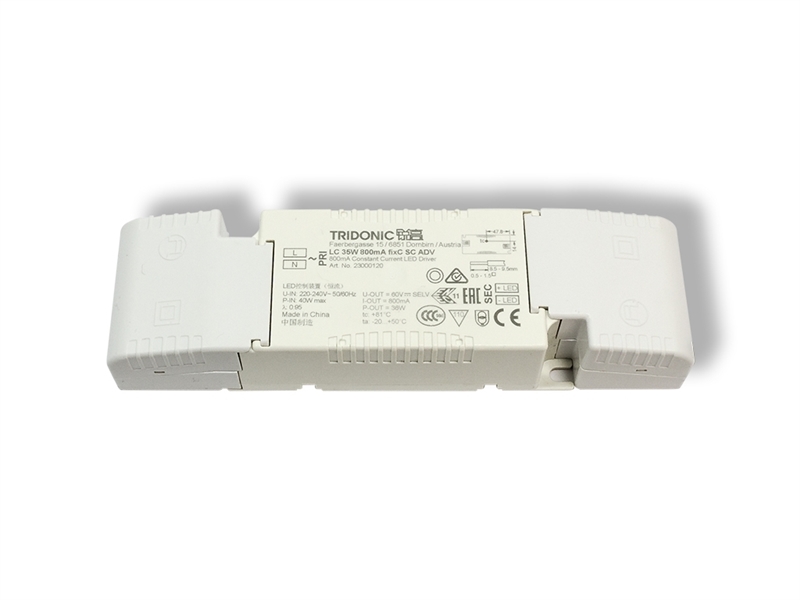

| Driver Manufacturer: | Tridonic |
| Power Factor (PF): | >0.95 |
| Input Driver: | terminal |
| Output of Driver: | DC 26 - 45V, 800mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 40°C |
| Dimensions: | 185x185x163 mm |

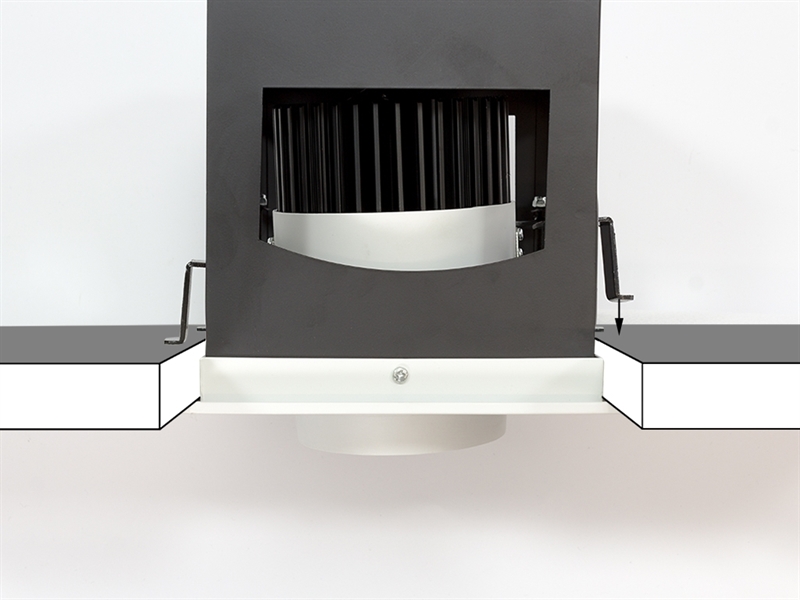

| Installation Depth: | 165 mm |
| Cut-Out Dimensions: | 163x163 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| Pivot Range pan: | 300 ° |
| Pivot Range tilt: | 30 ° |
| IP Class: | 20 |
| Housing Color | black |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Net Weight: | 1615 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 210x240x210 |
| Weight incl. Packaging: | 1.786 kg |
| Content Master Package: | 8 |
| Dimensions of Master Package: | 440x440x490 mm |
| Weight Master Package: | 14,99 kg |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Operating Hours: | >40.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557818054 |
