Fenestra Circle Advance 180 15-830-1220LM
Order number: LG58143
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG58143
- Luminous Flux: 1220 lm
- Power Draw: 15 W
- Light Color: warmwhite (2800 K)
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 43
- Beam Angle: 110°
- LED-Chip: San'an SMD 2835
- Housing Color: white

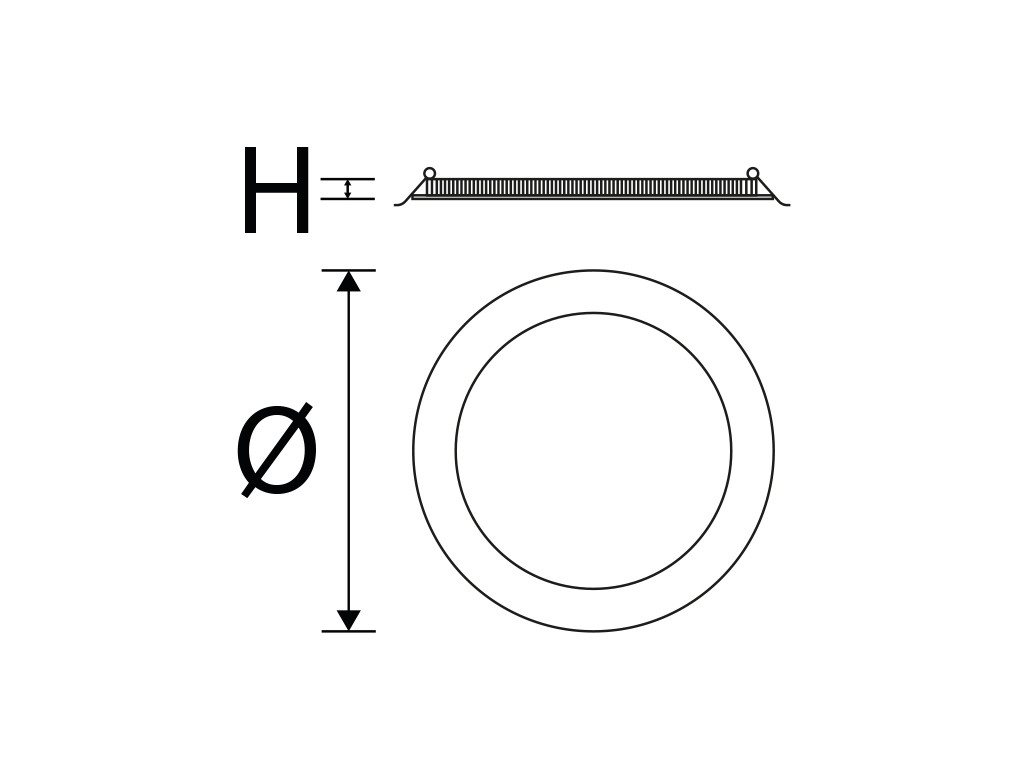

- Dimensions: 180x13 mm
- Cut-Out Dimensions: 168-172 mm
- Warranty: 3 years
LED Panel Light Litegear® Fenestra Circle Advance LED recessed panel for... more
Product information "Fenestra Circle Advance 180 15-830-1220LM"
LED Panel Light
Litegear® Fenestra Circle Advance LED recessed panel for installation in ceilings or plasterboard walls. Easy mounting by snap-in pen holder. Very homogeneous light distribution with low glare rate and exceptionally high brightness. Ideal for lighting of retail areas, lobbies, hallways or offices.
Within our Fenestra LED panels we use only high quality LED chips from renowned manufacturers. Fenestra LED panels can be ordered in different sizes and shapes: round or square. The cooling of the LEDs are embedded laterally over an aluminum frame for long LED lifespan due to excellent heat dissipation. Litegear® panels confince with very good color rendering Index >80 and longlasting, flicker free driver technology by Lifud. Flat panel design <13mm for perfect integration in plaster boards.
Related links to "Fenestra Circle Advance 180 15-830-1220LM"
Technical Details:
| Luminous Flux: | 1220 lm |
| LED Output: | 13.5 W |
| Light Yield: | 81 lm/W |
| Light Temperature: | 2800 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <5 |
| Beam Angle: | 110 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | San'an |
| LED-Chip: | SMD 2835 |
| Number of LED: | 72 |
| Ignition Time: | <0,5 s |
| Power Consumption: | 15 W |
| Contains Driver: |  |
| Driver Manufacturer: | Lifud |
| Power Factor (PF): | >0.556 |
| Input Driver: | terminal |
| Output of Driver: | DC 25-38V, 350mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 40°C |
| Dimensions: | 180x13 mm |
| Installation Depth: | 18 mm |
| Cut-Out Dimensions: | 168-172 mm |
| Mounting: | ceiling,wall |
| Montageart: | recessed |
| IP Class: | 43 |
| IK Code: | 04 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Special Feature of Housing: | IP43 raumseits sonst IP20 |
| Cover: | opal |
| Net Weight: | 313 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 270x240x35 |
| Weight incl. Packaging: | 0.464 kg |
| Content Master Package: | 30 |
| Dimensions of Master Package: | 555x265x575 mm |
| Weight Master Package: | 13,2 kg |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Operating Hours: | >35.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,TÜV,ENEC,LM80,SELV |
| Barcode: | 4250557811031 |
Rundes LED-Einbaupanel mit Snap-in Federhaltern für 132-137mm Deckenausschnitt more
Rundes LED-Einbaupanel mit Snap-in Federhaltern für 132-137mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 168-172 mm
Einbautiefe: 18 mm
Temperaturbereich: -20°C - 40°C
Lichtstrom: 1220 lm
LED-Leistung: 15 W
Leuchten-Lichtausbeute: 81 lm/W
Farbtemperatur: 2800 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 110°
UGR: 22
Lichtaustritt: direkt
Maße: 180x13 mm
Montageart: Einbau (Decke,Wand)
Schutzart (DIN EN 60529): IP43
Stoßfestigkeitsgrad (IEC 62262): IK04
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: opal
Nettogewicht: 313 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 35000 h
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 168-172 mm
Einbautiefe: 18 mm
Temperaturbereich: -20°C - 40°C
Lichtstrom: 1220 lm
LED-Leistung: 15 W
Leuchten-Lichtausbeute: 81 lm/W
Farbtemperatur: 2800 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 110°
UGR: 22
Lichtaustritt: direkt
Maße: 180x13 mm
Montageart: Einbau (Decke,Wand)
Schutzart (DIN EN 60529): IP43
Stoßfestigkeitsgrad (IEC 62262): IK04
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: opal
Nettogewicht: 313 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 35000 h
