Fenestra Circle HE 240 20-840-2400LM High Efficency 120lm/W BAP
Order number: LG58149
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG58149
- Luminous Flux: 2400 lm
- Power Draw: 20 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220 - 240V, 0,09mA, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20 (44 room side)
- Beam Angle: 90°
- LED-Chip: SMD 2835
- Housing Color: white
- Dimensions: 240x12 mm
- Cut-Out Dimensions: 220 mm
- Warranty: 5 years
LED Panel Light Litegear® Fenestra Circle HE (high efficency) LED recessed... more
Product information "Fenestra Circle HE 240 20-840-2400LM High Efficency 120lm/W BAP"

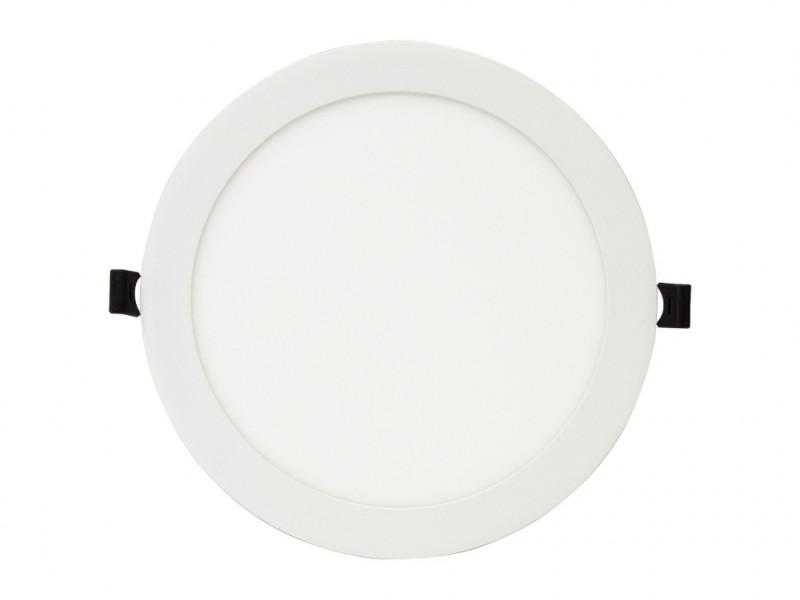

LED Panel Light

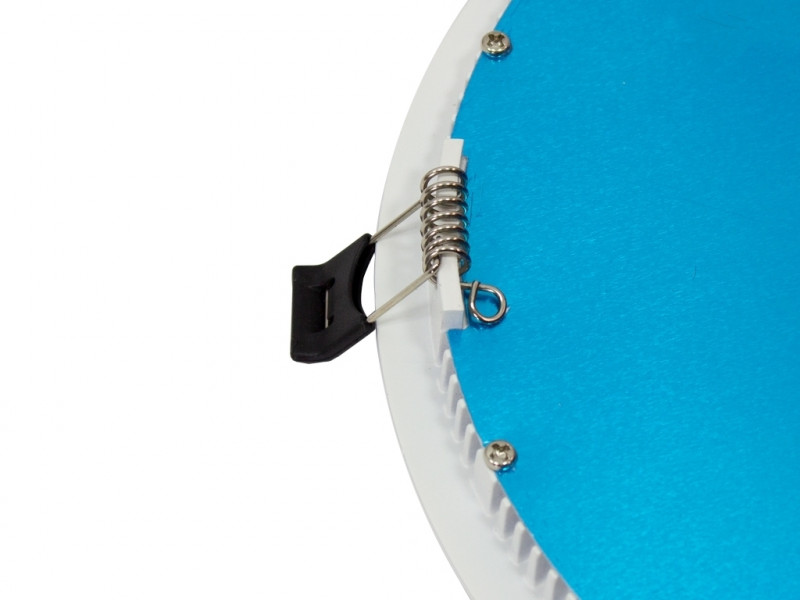

Litegear® Fenestra Circle HE (high efficency) LED recessed panel for installation in ceilings or plasterboard walls. Easy mounting by snap-in pen holder. Very homogeneous light distribution with low glare rate and exceptionally high brightness 120 Lumen per Watt. Ideal for lighting of retail areas, lobbies, hallways or offices.

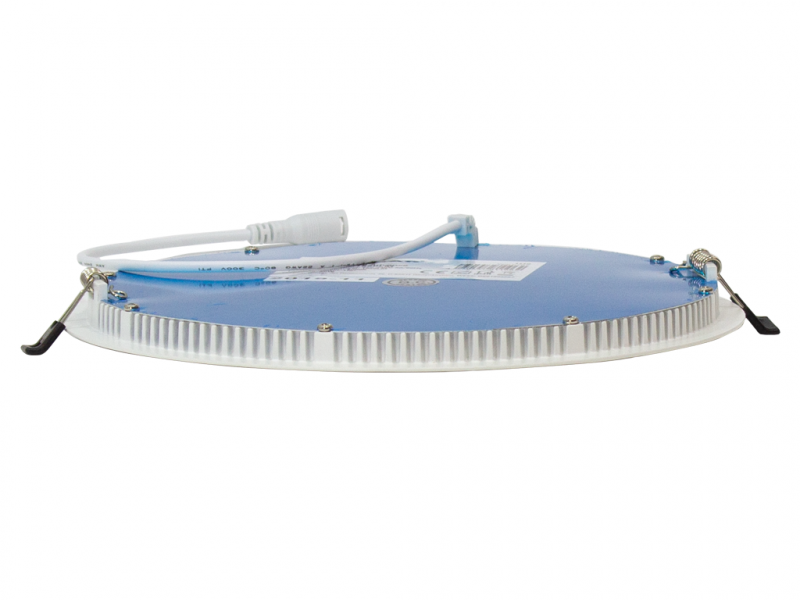

Within our Fenestra LED panels we use only high quality LED chips from renowned manufacturers. Fenestra LED panels can be ordered in different sizes and shapes: round or square. The cooling of the LEDs are embedded laterally over an aluminum frame for long LED lifespan due to excellent heat dissipation. Litegear® panels confince with very good color rendering Index >80 and longlasting, flicker free driver technology by Lifud. Flat panel design <13mm for perfect integration in plaster boards.
Lower glare rating
Related links to "Fenestra Circle HE 240 20-840-2400LM High Efficency 120lm/W BAP"
Technical Details:
| Luminous Flux: | 2400 lm |
| LED Output: | 18 W |
| Light Yield: | 120 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220 - 240V, 0,09mA, 50/60Hz |
| Power Consumption: | 20 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.9 |
| Input Driver: | terminal |
| Output of Driver: | DC 25-40V, 500mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 240x12 mm |
| Installation Depth: | 18 mm |
| Cut-Out Dimensions: | 220 mm |
| Mounting: | ceiling,wall |
| Montageart: | recessed |
| IP Class: | 20 (44 room side) |
| IK Code: | 04 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Special Feature of Housing: | IP44 raumseits sonst IP20 |
| Cover: | opal |
| Net Weight: | 517 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 320x300x30 |
| Weight incl. Packaging: | 0.633 kg |
| Content Master Package: | 20 |
| Dimensions of Master Package: | 625x330x350 mm |
| Weight Master Package: | 13,22 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405114090 |
| Certifications | CE,SELV,D |
| Barcode: | 4250557822693 |
| Systemeffizienz 120lm/W | |
| geeignet für Bildschirmarbeitsplätze UGR19 | |
Rundes LED-Einbaupanel mit Snap-in Federhaltern für 132-137mm Deckenausschnitt more
Rundes LED-Einbaupanel mit Snap-in Federhaltern für 132-137mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 220 mm
Einbautiefe: 18 mm
Temperaturbereich: -20°C - 45°C
Lichtstrom: 2400 lm
LED-Leistung: 20 W
Leuchten-Lichtausbeute: 120 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 90°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 240x12 mm
Montageart: Einbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20 (IP44 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK04
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: opal
Nettogewicht: 517 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 220 mm
Einbautiefe: 18 mm
Temperaturbereich: -20°C - 45°C
Lichtstrom: 2400 lm
LED-Leistung: 20 W
Leuchten-Lichtausbeute: 120 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 90°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 240x12 mm
Montageart: Einbau (Decke,Wand)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20 (IP44 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK04
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: opal
Nettogewicht: 517 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
