ILLUNA MOVE round 35-830-2630lm

LG13112
Preise sind erst nach der Anmeldung sichtbar.

Availability: low stock

Dimensions

Dimensions
  • LG13112
  • Luminous Flux: 2630 lm
  • Power Draw: 35 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 220 - 240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20
  • Beam Angle: 36°
  • LED-Chip: Sharp COB
  • Housing Color: white
  • Dimensions: 160x185 mm
  • Cut-Out Dimensions: 150 mm
  • Warranty: 3 years

Luminous Flux

2630
lm

Power Draw

35 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

36°

mounting type

Light Direction

Dimensions

(ØxH) in mm
160x185

Warranty

3 years

LED Downlight   The installation lights of the Litegear® Illuna Move LED... more
Product information "ILLUNA MOVE round 35-830-2630lm"
LED Downlight

The installation lights of the Litegear® Illuna Move LED Series can be easily integrated into ceilings. They distinguish themselves by a high light efficiency and a long lifetime. We offer the Illuna Series in different achievement classes and beam angels. Therefore the different ranges of application, as for example shopping areas. The Illuna LED Series in which the light is bundled up by a reflector is suited ideally for product presentations in shops and boutiques, hotels or bars. Illuna is using great „A class" components and driver with a long lifespan. It has a stylish design at an affordable price.
Have a look at it and be surprised about our quality and apperance.
Related links to "ILLUNA MOVE round 35-830-2630lm"
Technical Details:

Luminous Flux: 2630 lm
LED Output: 33 W
Light Yield: 75 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <4
Beam Angle: 36 °
Light Emission: downward
LED-Chip Manufacturer: Sharp
LED-Chip: COB
Number of LED: 1
Ignition Time: <1 s
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 35 W
Contains Driver: ja

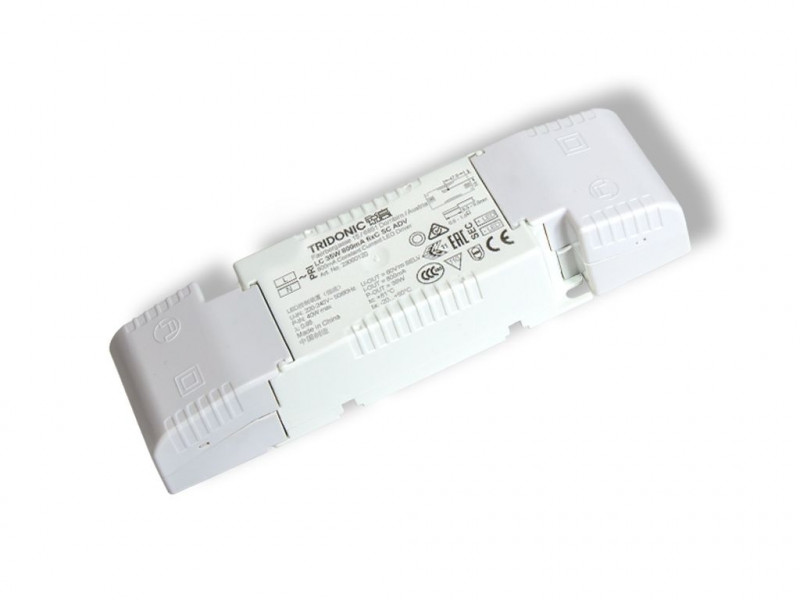

Driver Manufacturer: Tridonic
Power Factor (PF): >0.95
Input Driver: terminal
Output of Driver: DC 26 - 45V, 800mA
CC/CV: CC
Input Lamp: plug connector
Switching Cycles: >100.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 40°C

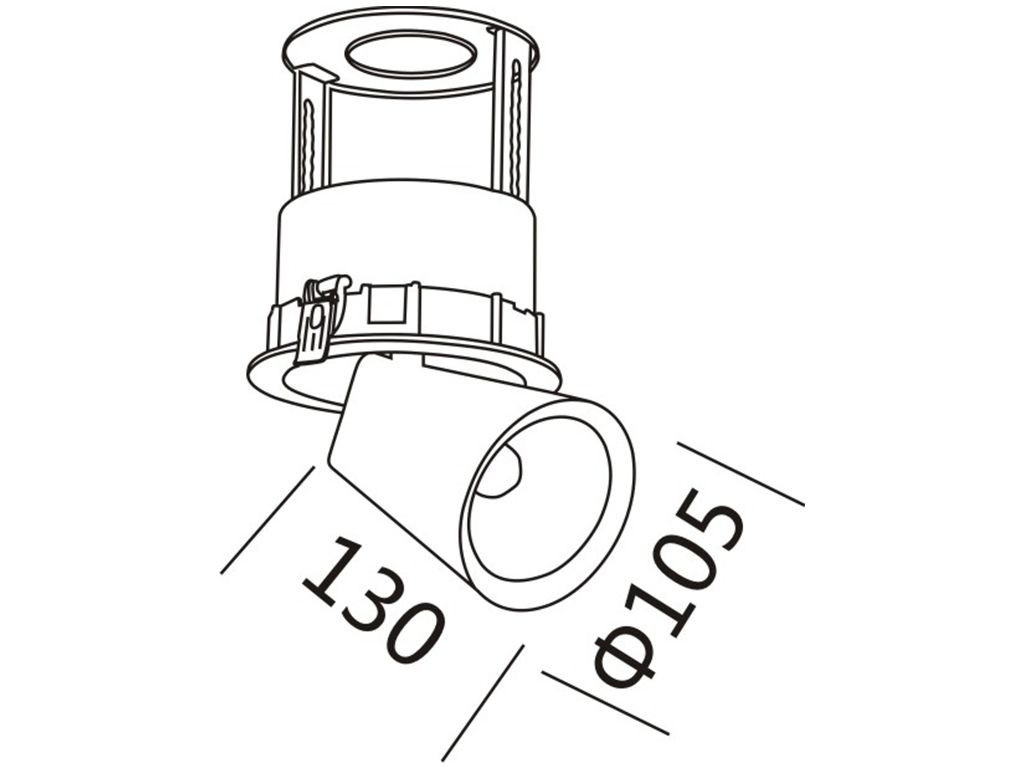

Dimensions: 160x185 mm
Cut-Out Dimensions: 150 mm
Mounting: Decke
Montageart: recessed

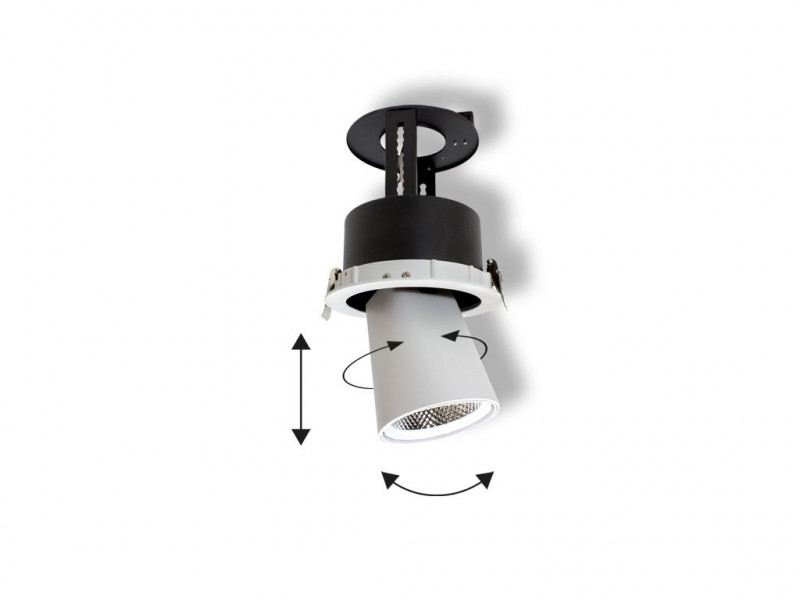

Pivot Range pan: 350 °
Pivot Range tilt: 80 °
IP Class: 20
Housing Color white
Housing Material: aluminum
Coating: lacquered
Net Weight: 1242 g
Type of Packaging: box
Dimensions of Packaging: 165x245x165
Weight incl. Packaging: 1.376 kg
Content Master Package: 12
Dimensions of Master Package: 510x345x505 mm
Weight Master Package: 17,12 kg
Product Line: ECO Line
Warranty 3 years
Operating Hours: >40.000 h L70/B20
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,RoHS,EMC,LVD
Barcode: 4250557808833
