Integra Eco Round 35-827-3100LM
Order number: LG12044
Prices are only visible after login.
Last Stock
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG12044
- Luminous Flux: 3100 lm
- Power Draw: 35 W
- Light Color: warmwhite (2700 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥83 Ra
- IP Code: 20
- Beam Angle: 36°
- LED-Chip: Cree COB
- Housing Color: white
- Dimensions: 175x135 mm
- Cut-Out Dimensions: 155 mm
- Warranty: 3 years
LED Downlight Litegear® Integra LED ceiling lights are able to replace... more
Product information "Integra Eco Round 35-827-3100LM"
LED Downlight
Litegear® Integra LED ceiling lights are able to replace conventional energy saving bulbs. They are very energy friendliy and can save up to 60% of energy costs. By the low power consumption and the high life it concerns a "Green Energy technology" product. Big heatsinks guarantee a low temperature on the LED Chip and have an excellent airstream for convectional cooling. Litegear LED downlights are available in different sizes and different colour temperatures. Due to it's extended lifespan you will save on maintenance cost as well. Compared to a Energy saving lamp a downlight can replace a downlight with 2 x ESL.
Litegear® LED lights are developed in Germany and are manufactured under stady testing and in line with the European regulations.
Related links to "Integra Eco Round 35-827-3100LM"
Technical Details:
| Luminous Flux: | 3100 lm |
| LED Output: | 33 W |
| Light Yield: | 89 lm/W |
| Light Temperature: | 2700 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥83 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 36 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Cree |
| LED-Chip: | COB |
| Number of LED: | 1 |
| Ignition Time: | <1 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 35 W |
| Contains Driver: |  |

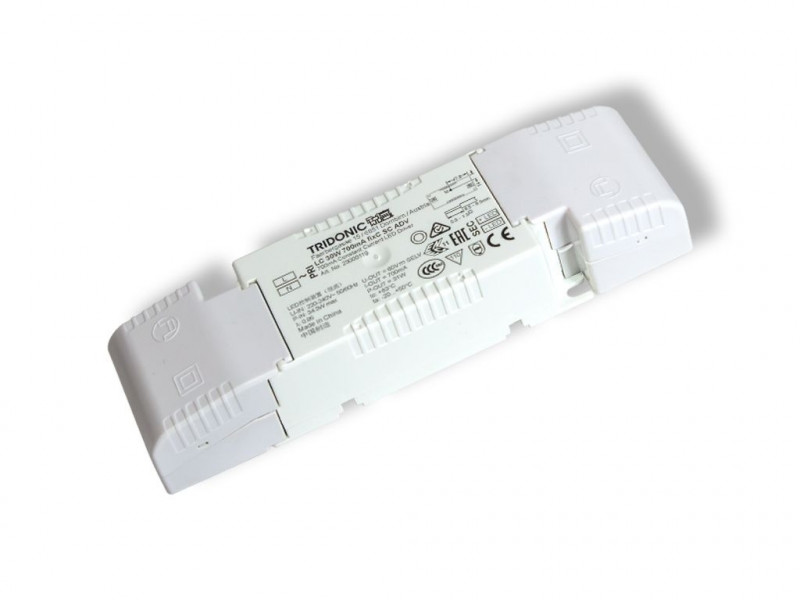

| Driver Manufacturer: | Tridonic |
| Power Factor (PF): | >0.97 |
| Input Driver: | terminal |
| Output of Driver: | DC 22 - 44V, 800mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 40°C |

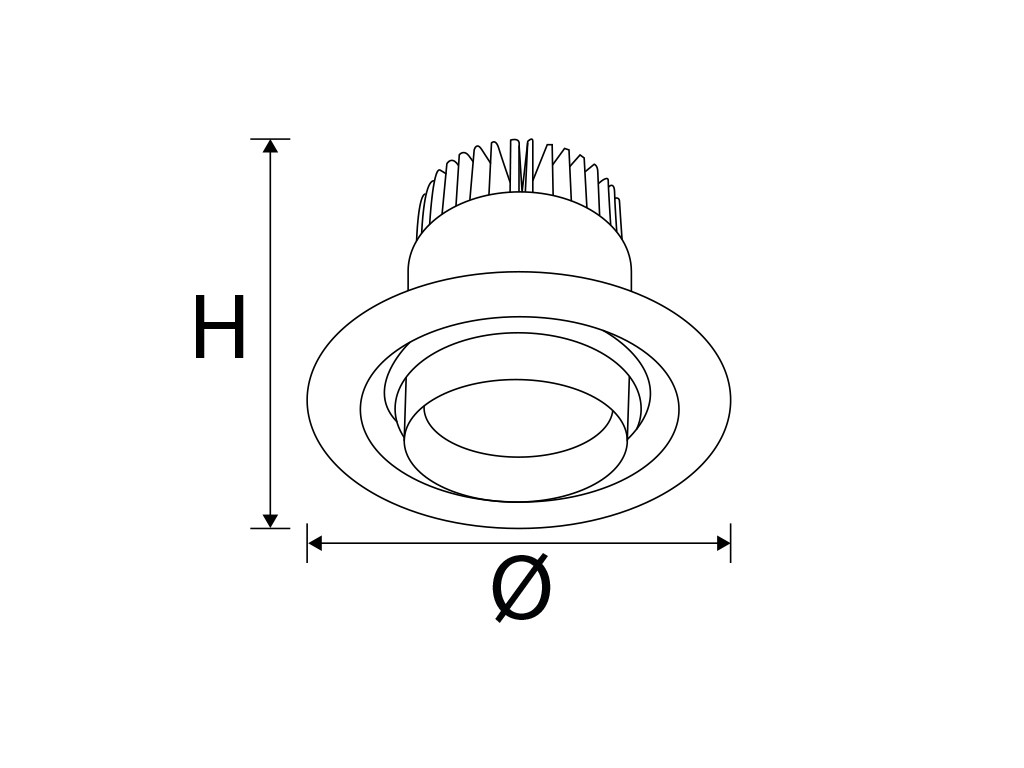

| Dimensions: | 175x135 mm |
| Cut-Out Dimensions: | 155 mm |
| Mounting: | Decke |
| Montageart: | recessed |

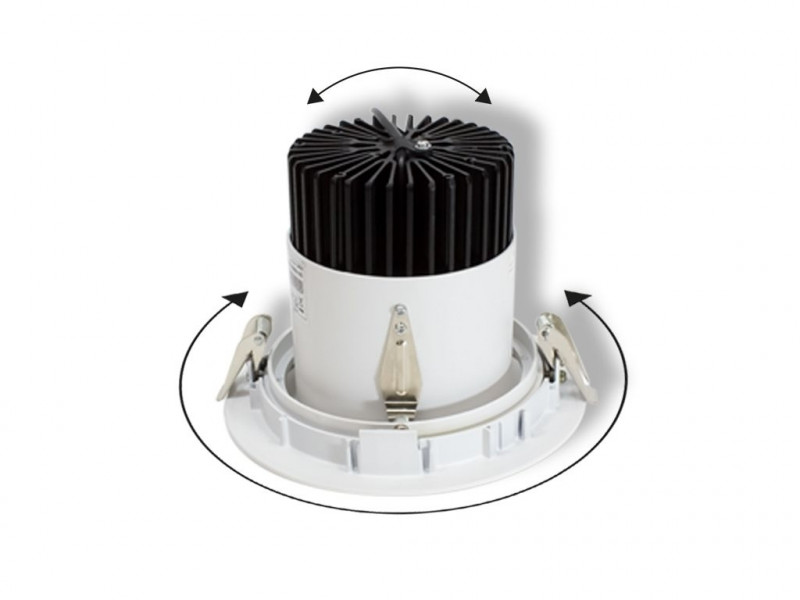

| Pivot Range pan: | 350 ° |
| Pivot Range tilt: | 30 ° |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Cover: | clear |
| Net Weight: | 1050 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 190x195x175 |
| Weight incl. Packaging: | 1.3 kg |
| Content Master Package: | 12 |
| Dimensions of Master Package: | 405x405x547 mm |
| Weight Master Package: | 16,44 kg |
| Product Line: | Essential Line |
| Warranty | 3 years |
| Operating Hours: | >40.000 h L80/B30 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557810591 |
