Order number: : LG12020
Luminous Flux: 700 lm
Power Draw: 9 W
Light Color: warmwhite (3000 K)
Input Current: AC 220 - 240V, 80mA, 50/60Hz
Color Rendering Index (CRI): ≥84 Ra
IP Code: 20

Beam Angle: 30°
LED-Chip: Sharp COB
Housing Color: white
Dimensions: 113x58 mm
Cut-Out Dimensions: 100 mm
Warranty: 3 years

Luminous Flux

700
lm

Power Draw

9 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>84 Ra

IP Code

IP 20

Beam Angle

30°

mounting type

Light Direction

Dimensions

(ØxH) in mm
113x58

Warranty

3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Close menu

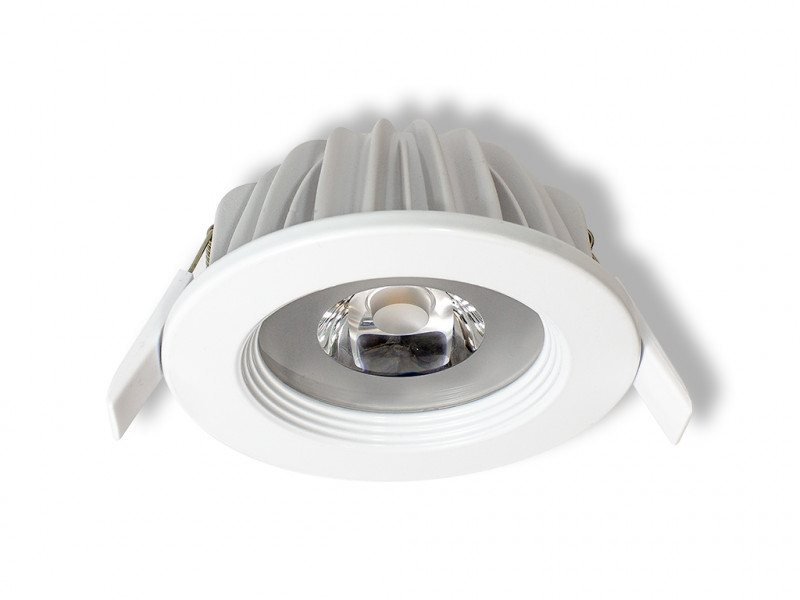

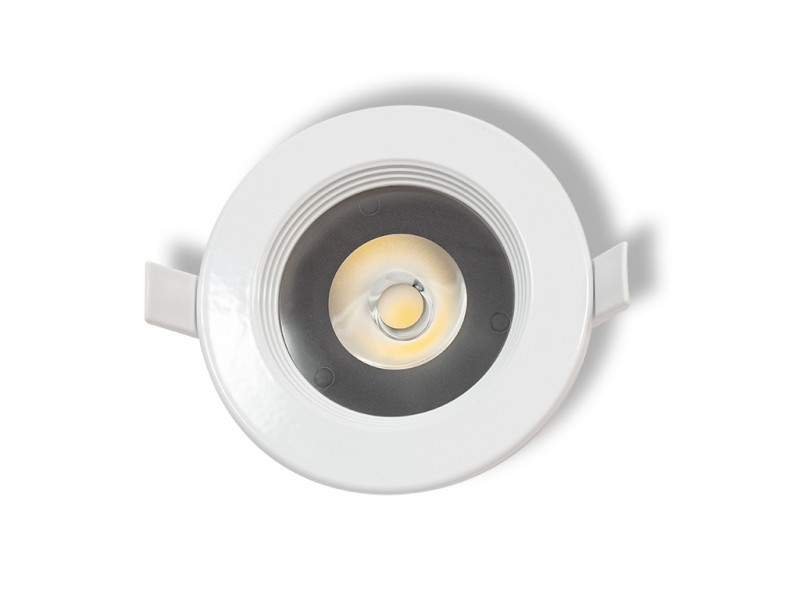

Product information "Integra Medi 9-830-700LM"

Related links to "Integra Medi 9-830-700LM"

Zurück

Technical Details:

Luminous Flux:	700 lm
LED Output:	7 W
Light Yield:	80 lm/W
Light Temperature:	3000 K
Light Color:	warmwhite
Color Rendering Index:	≥84 Ra
Color Consistency (SDCM):	<3
Beam Angle:	30 °
Unified Glare Rating (UGR):	19
Light Emission:	downward
LED-Chip Manufacturer:	Sharp
LED-Chip:	COB
Number of LED:	1
Ignition Time:	<1 s

Input Current:	AC 220 - 240V, 80mA, 50/60Hz
Power Consumption:	9 W
Contains Driver:
Power Factor (PF):	>0.52
Input Driver:	terminal
Output of Driver:	DC 30 - 40V, 220mA
CC/CV:	CC

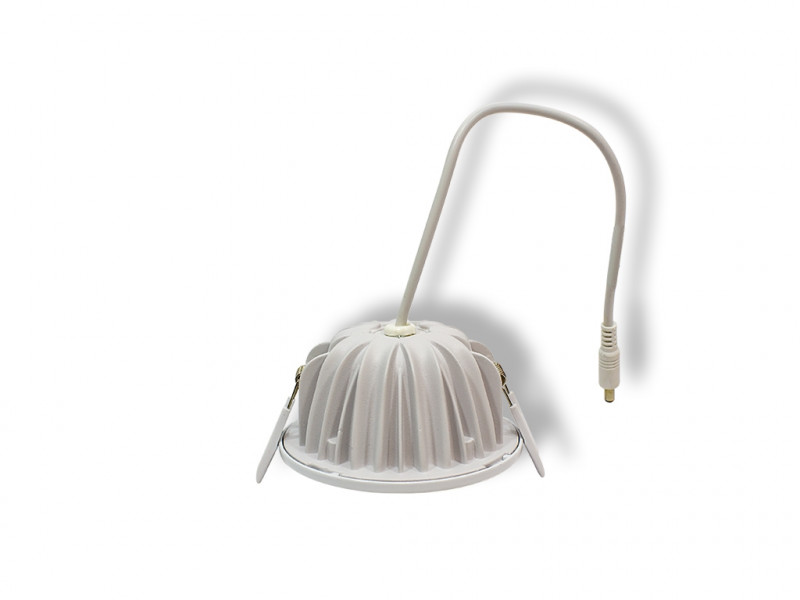

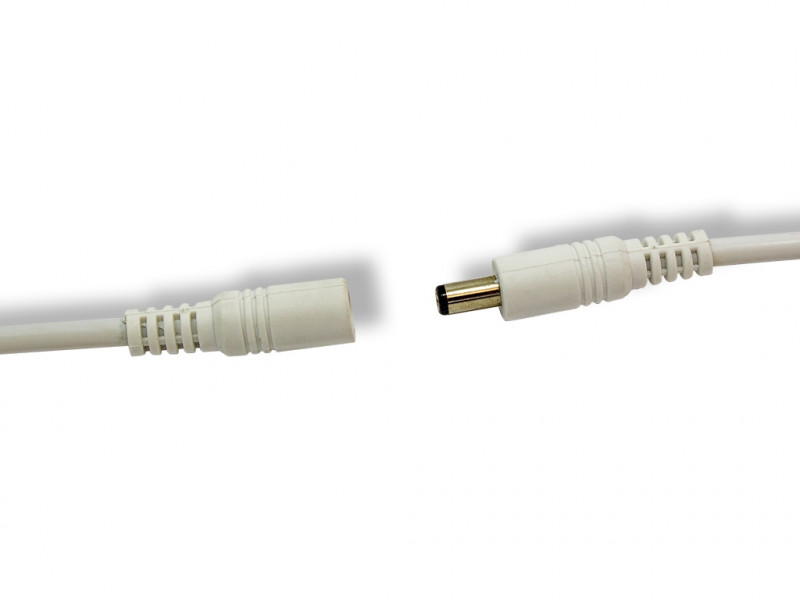

Input Lamp:	cable with plug
Switching Cycles:	>35.000
Electrical Protection Class:	II
Compatible with Emergency Current:
Ambient Temperature (TA):	-5°C - 45°C
Storage Temperature:	-5°C - 50°C

Dimensions:	113x58 mm
Cut-Out Dimensions:	100 mm
Mounting:	Decke
Montageart:	recessed
IP Class:	20
IK Code:	06
Housing Color	white
Housing Material:	aluminum
Coating:	powder-coated
Special Feature of Housing:	IP 44 room side
Net Weight:	802 g
Luminaire Type:	Fluchtwegleuchtung
Forward Voltage Range:	27-39
Battery Warranty:	1
Discharge Duration:	≥3 h
Battery Type:	NiCd
Battery Current:	1700 mA
Battery Charge Duration:	12 h
Initial Charge Duration:	24 h
Charging Power Consumption:	10 W
Battery Cell Quantity	6
Luminous Flux in Battery Mode:	310 lm
Standards for emergency luminaires:	DIN EN 60598-2-22, Anforderung nach DIN EN 50172

Type of Packaging:	box
Dimensions of Packaging:	175x130x113
Weight incl. Packaging:	0.957 kg
Content Master Package:	15
Dimensions of Master Package:	580x360x275 mm
Weight Master Package:	14,8 kg

Product Line:	Advance Line
Warranty	3 years
Operating Hours:	>50.000 h L70/B20
Disposal Obligation:
Customs Tariff Number:	9405499090
Certifications	CE
Barcode:	4250557811109

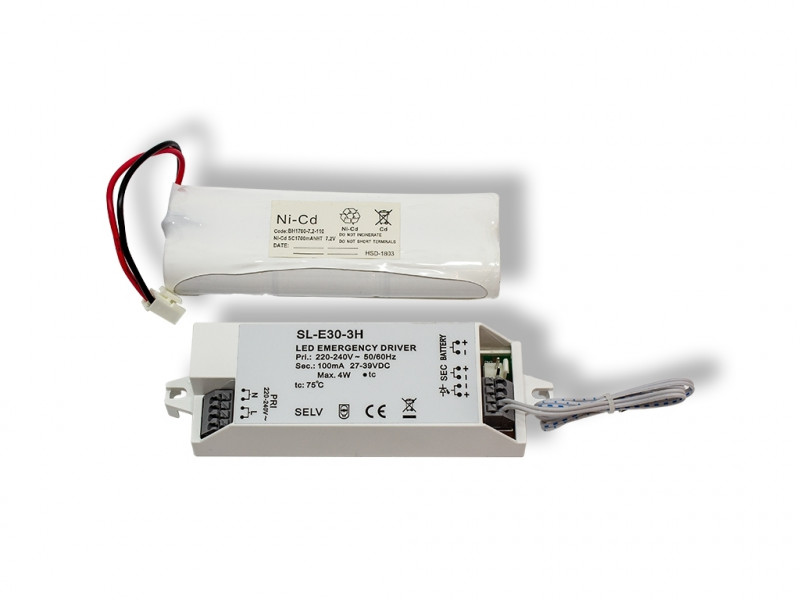

Inkl. Batterie-Notstromeinheit 3h
Leistung im Batteriebetrieb: 4W

Technical Data Sheet (PDF)

Rundes LED-Downlight mit optionalem Notstromakku für 100mm Deckenausschnitt more

Zurück

Rundes LED-Downlight mit optionalem Notstromakku für 100mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 100 mm
Temperaturbereich: -5°C - 45°C
Lichtstrom: 700 lm
LED-Leistung: 9 W
Leuchten-Lichtausbeute: 80 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >84
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 30°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 113x58 mm
Montageart: Einbau (Decke)
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK06
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 802 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B20): 50000 h
