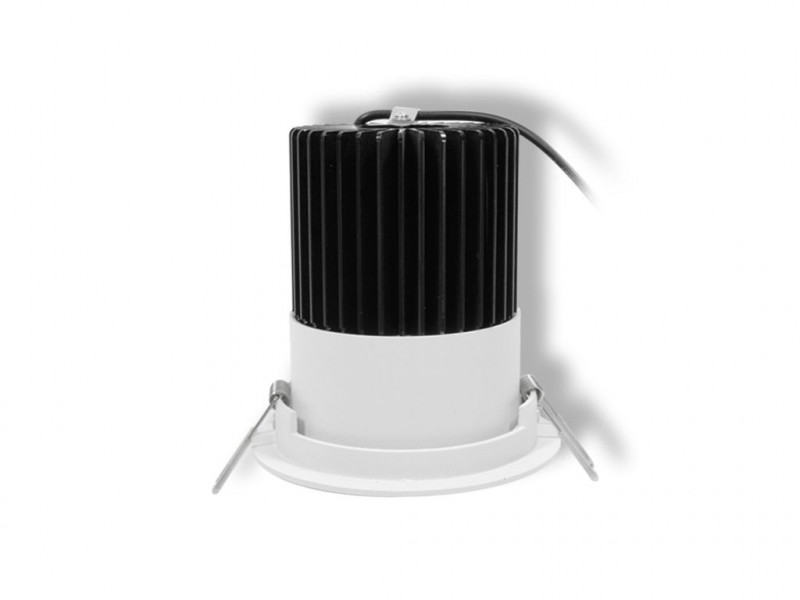

Integra Midi Recessed Spotlight 18-830-1450lm

LG11315
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG11315
  • Luminous Flux: 1450 lm
  • Power Draw: 18 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 220 - 240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20
  • Beam Angle: 36°
  • LED-Chip: Sharp/Citizen COB
  • Housing Color: white
  • Dimensions: 112x76 mm
  • Cut-Out Dimensions: 100 mm
  • Warranty: 3 years

Luminous Flux

1450
lm

Power Draw

18 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

36°

mounting type

Light Direction

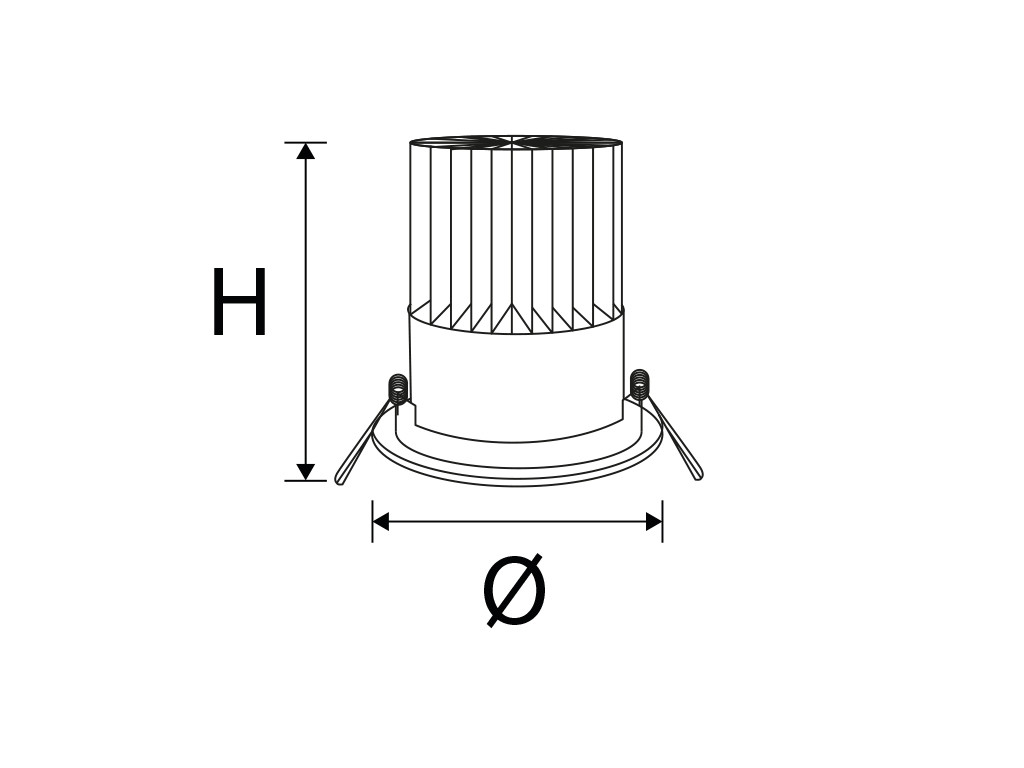

Dimensions

(ØxH) in mm
112x76

Warranty

3 years

LED Downlight   Litegear® Integra LED ceiling lights are able to replace... more
Product information "Integra Midi Recessed Spotlight 18-830-1450lm"
LED Downlight

Litegear® Integra LED ceiling lights are able to replace conventional energy saving bulbs. They are very energy friendliy and can save up to 60% of energy costs.  By the low power consumption and the high life it concerns a "Green Energy technology" product. Big heatsinks guarantee a low temperature on the LED Chip and have an excellent airstream for convectional cooling. Litegear LED downlights are available in different sizes and different colour temperatures. Due to it's extended lifespan you will save on maintenance cost as well. Compared to a Energy saving lamp a downlight can replace a downlight with 2 x ESL.

Litegear® LED lights are developed in Germany and are manufactured under stady testing and in line with the European regulations.
Related links to "Integra Midi Recessed Spotlight 18-830-1450lm"
Technical Details:

Luminous Flux: 1450 lm
LED Output: 17 W
Light Yield: 81 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Beam Angle: 36 °
Light Emission: downward
LED-Chip Manufacturer: Sharp/Citizen
LED-Chip: COB
Number of LED: 1
Ignition Time: <0,5 s
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 18 W
Contains Driver: ja
Driver Manufacturer: Tridonic
Power Factor (PF): >0.95
Input Driver: terminal
Output of Driver: DC 20 - 36V, 500mA
CC/CV: CC
Input Lamp: plug connector
Switching Cycles: >50.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 40°C
Dimensions: 112x76 mm
Cut-Out Dimensions: 100 mm
Mounting: Decke
Montageart: recessed
Pivot Range tilt: 25 °
IP Class: 20
Housing Color white
Housing Material: aluminum
Coating: lacquered
Cover: Linse
Net Weight: 535 g
Type of Packaging: box
Dimensions of Packaging: 140x155x140
Weight incl. Packaging: 0.648 kg
Content Master Package: 24
Dimensions of Master Package: 434x296x620 mm
Weight Master Package: 15,98 kg
Product Line: Advance Line
Warranty 3 years, 20.000 h
Operating Hours: >35.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,RoHS,EMC,LVD,D
Barcode: 4250557806273
geringe Blendung
low glare rate
