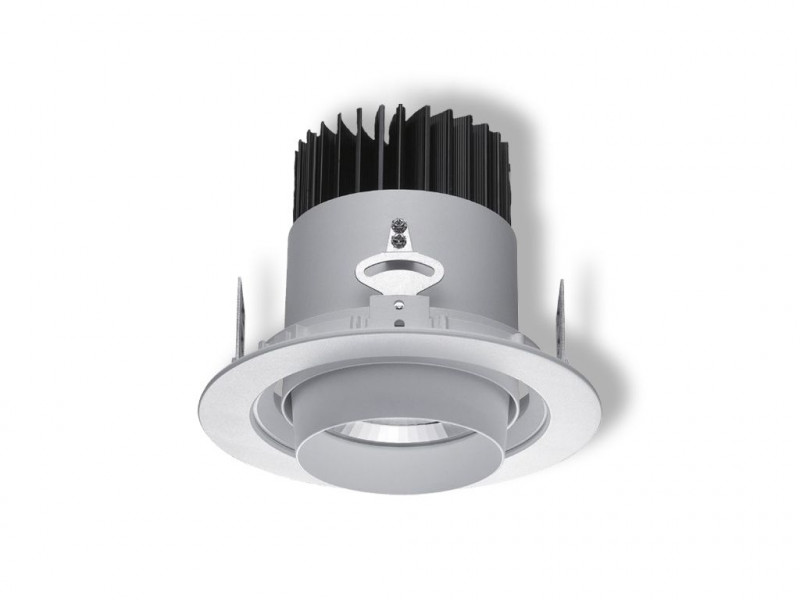

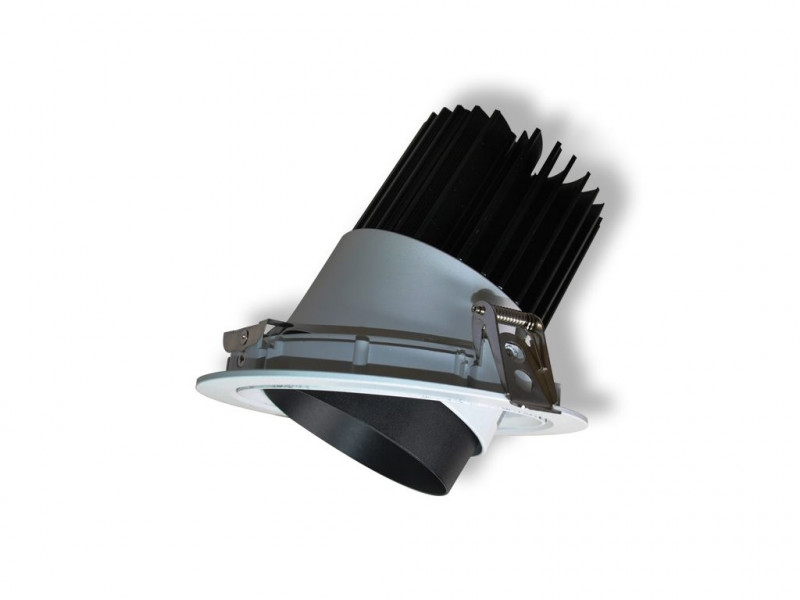

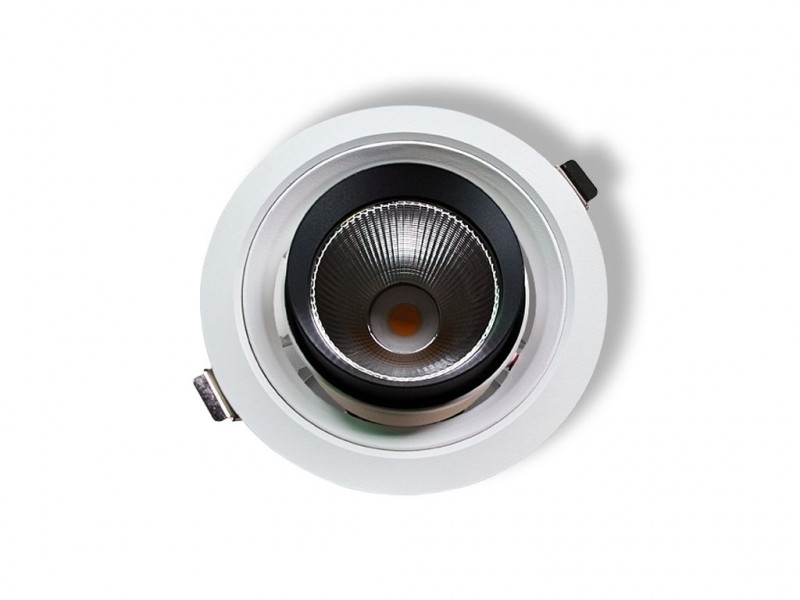

Integra R Recessed Spotlight 42-830-2760LM

LG10166
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG10166
  • Luminous Flux: 2760 lm
  • Power Draw: 36 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 220 - 240V, 320mA, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20
  • Beam Angle: 45°
  • LED-Chip: Sharp COB
  • Housing Color: white
  • Dimensions: 170x187 mm
  • Cut-Out Dimensions: 150 mm
  • Warranty: 3 years

Luminous Flux

2760
lm

Power Draw

36 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

45°

mounting type

Light Direction

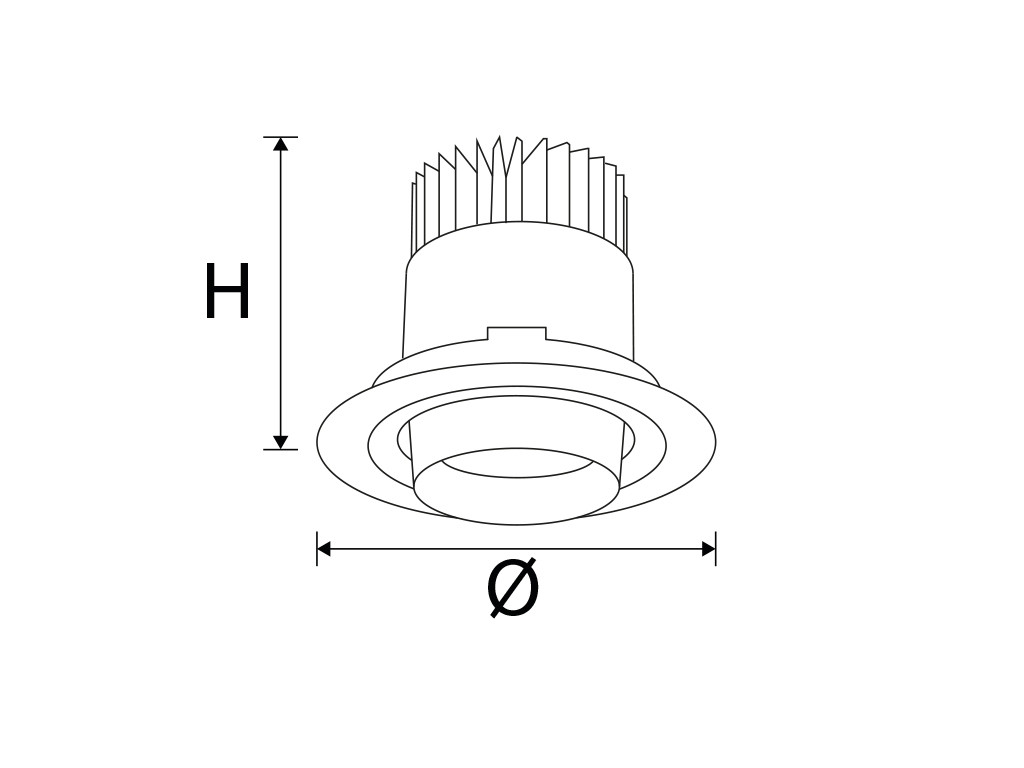

Dimensions

(ØxH) in mm
170x187

Warranty

3 years

LED Downlight   Litegear® Integra LED ceiling lights are able to replace... more
Product information "Integra R Recessed Spotlight 42-830-2760LM"
LED Downlight

Litegear® Integra LED ceiling lights are able to replace traditional discharge bulbs from 50-70W. They are very energy friendliy and can save up to 60% of energy costs.  By the low power consumption and the high life it concerns a "Green Energy technology" product. Big heatsinks guarantee a low temperature on the LED Chip and have an excellent airstream for convectional cooling. Litegear LED downlights are available in different sizes and different colour temperatures. Due to it's extended lifespan you will save on maintenance cost as well.
Litegear® LED lights are developed in Germany and are manufactured under stady testing and in line with the European regulations.
We can offer dimmable drivers on demand.
applications:
shop and showroom
entrance halls
Related links to "Integra R Recessed Spotlight 42-830-2760LM"
Technical Details:

Luminous Flux: 2760 lm
LED Output: 34 W
Light Yield: 77 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <4
Beam Angle: 45 °

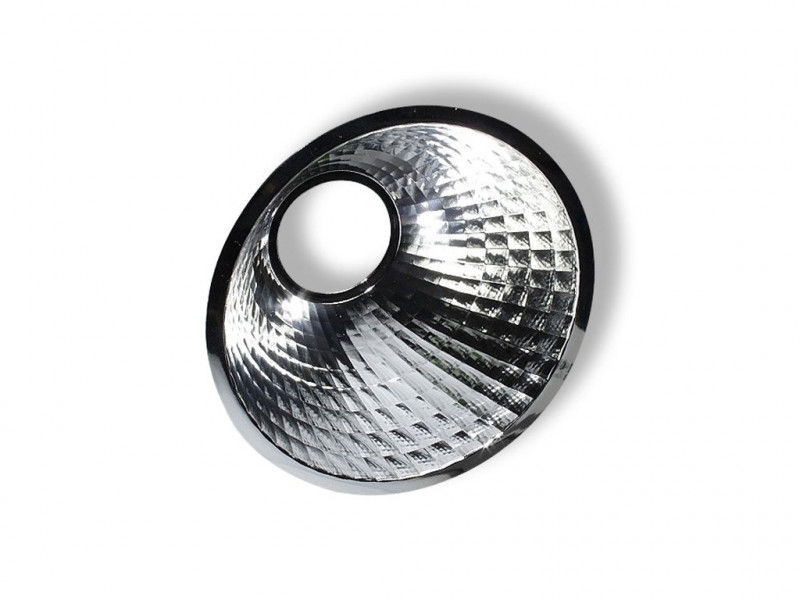

Swappable Reflector: ja
Light Emission: downward
LED-Chip Manufacturer: Sharp
LED-Chip: COB
Number of LED: 1
Ignition Time: <1 s
Input Current: AC 220 - 240V, 320mA, 50/60Hz
Power Consumption: 36 W
Contains Driver: ja
Power Factor (PF): >0.9
Input Driver: terminal
Output of Driver: DC 32-40V, 900mA
CC/CV: CC
Input Lamp: plug connector
Switching Cycles: >50.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 40°C
Dimensions: 170x187 mm
Cut-Out Dimensions: 150 mm
Mounting: Decke
Montageart: recessed
Pivot Range pan: 350 °
Pivot Range tilt: 30 °
IP Class: 20
Housing Color white
Housing Color (RAL Code): 9003
Housing Material: aluminum
Coating: powder-coated
Net Weight: 1063 g
Type of Packaging: box
Dimensions of Packaging: 200x205x200
Weight incl. Packaging: 1.337 kg
Content Master Package: 6
Dimensions of Master Package: 625x220x410 mm
Weight Master Package: 8,50 kg
Product Line: Advance Line
Warranty 3 years
Operating Hours: >35.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,RoHS,EMC,LVD
Barcode: 4250557806778
