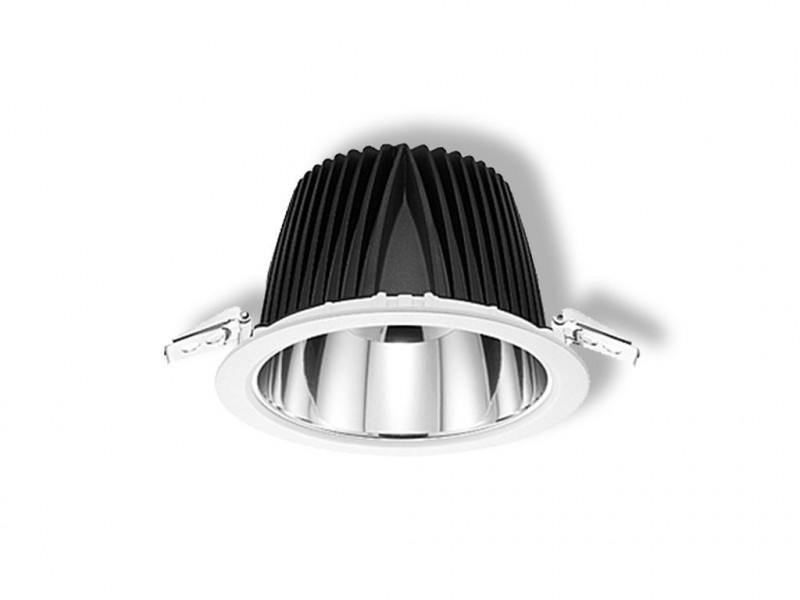

Integra SMD 45-830-3950LM UGR<19
Order number: LG10183
Prices are only visible after login.
Last Stock
Availability: low stock
Dimensions
- Order number: : LG10183
- Luminous Flux: 3950 lm
- Power Draw: 45 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 220 - 240V, 50Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 65°
- LED-Chip: Nichia
- Housing Color: white
- Dimensions: 215x125 mm
- Cut-Out Dimensions: 200 mm
- Warranty: 3 years
LED Downlight The Integra SMD can be easily integrated into ceilings. They... more
Product information "Integra SMD 45-830-3950LM UGR<19"
LED Downlight
The Integra SMD can be easily integrated into ceilings. They distinguish themselves by a high light efficiency and a long lifetime. We offer the Integra-Series in different achievement classes and beam angels. Therefore the different ranges of application, as for example flat illumination can be realised for foyers, halls shops or offices. The Integra SMD Series in which the light is bundled up by a reflector is suited ideally for product presentations in shops and boutiques. Due to it´s very low glare it is perfect for computer screens. Litegear® Integra SMD has a very strong but light housing made of aluminum alloy, which is used in air planes. The LED light is generated by several SMD chips in a separate light chamber and protected by a frosted cover. Reflectors will guide the light. Integra SMD has a very high light efficency.
Related links to "Integra SMD 45-830-3950LM UGR<19"
Technical Details:
| Luminous Flux: | 3950 lm |
| LED Output: | 45 W |
| Light Yield: | 88 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Beam Angle: | 65 ° |
| Unified Glare Rating (UGR): | 17 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Nichia |
| Number of LED: | 65 |
| Ignition Time: | <1 s |
| Input Current: | AC 220 - 240V, 50Hz |
| Power Consumption: | 45 W |
| Power Factor (PF): | >0.95 |
| Output of Driver: | DC 36 - 42V, 1050mA |
| CC/CV: | CC |
| Switching Cycles: | >100.000 |
| Ambient Temperature (TA): | -20°C - 40°C |

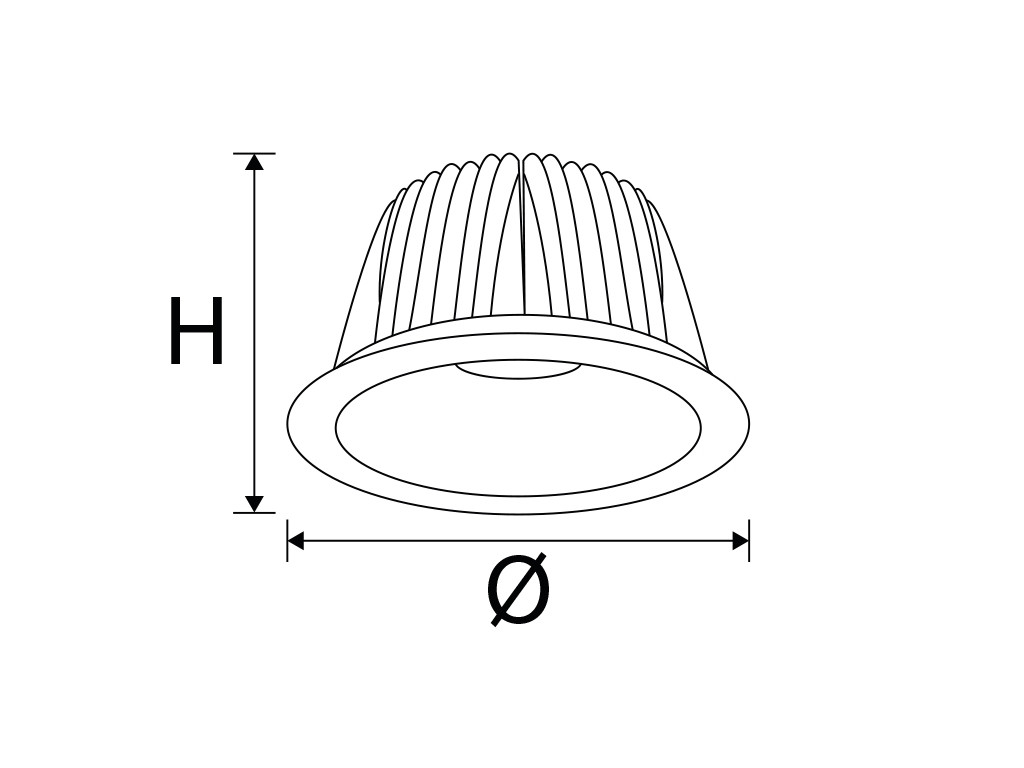

| Dimensions: | 215x125 mm |
| Installation Depth: | 125 mm |
| Cut-Out Dimensions: | 200 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9003 |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Net Weight: | 865 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 1.131 kg |
| Content Master Package: | 9 |
| Dimensions of Master Package: | 695x250x530 mm |
| Weight Master Package: | 10,9 kg |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L70/B50 |
| Disposal Obligation: |  |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557804521 |
