Order number: LG11251
Preise sind erst nach der Anmeldung sichtbar.
Availability: low stock
Short information
- Order number: : LG11251
- Luminous Flux: 2800 lm
- Power Draw: 38 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 36°
- LED-Chip: Sharp COB
- Housing Color: white
- Dimensions: 180x180x170 mm
- Cut-Out Dimensions: 161x163 mm
- Warranty: 3 years
Luminous Flux
2800
lm
Power Draw
38 W
Light Color
4000 K
neutralwhite
Color Rendering Index (CRI)
CRI
>80 Ra
IP Code
IP 20
Beam Angle
36°
Light Direction
Dimensions
(LxBxH) in mm
180x180x170
Warranty
3 years
LED Downlight Litegear® Integra LED ceiling lights are able to replace... more

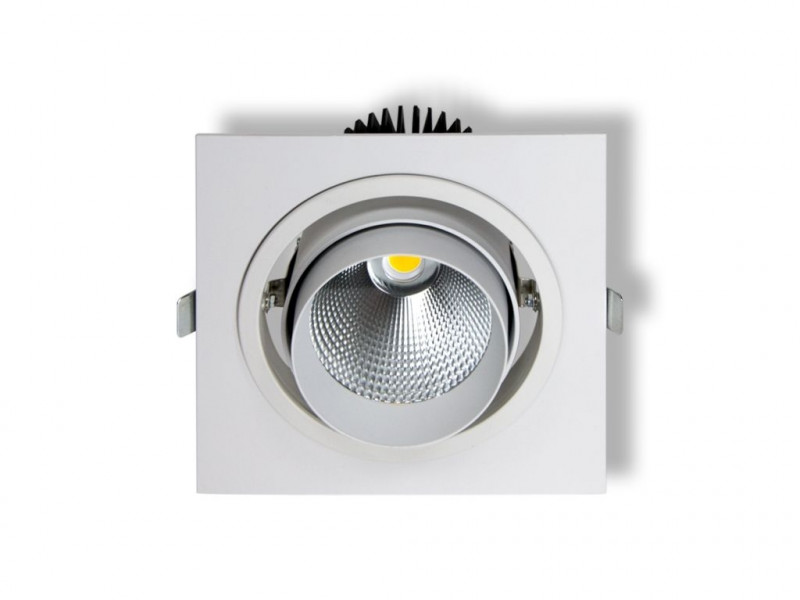

Product information "Integra Square Recessed Spotlight"
LED Downlight
Litegear® Integra LED ceiling lights are able to replace conventional energy saving bulbs. They are very energy friendliy and can save up to 60% of energy costs. By the low power consumption and the high life it concerns a "Green Energy technology" product. Big heatsinks guarantee a low temperature on the LED Chip and have an excellent airstream for convectional cooling. Litegear LED downlights are available in different sizes and different colour temperatures. Due to it's extended lifespan you will save on maintenance cost as well. Compared to a Energy saving lamp a downlight can replace a downlight with 2 x ESL.
Litegear® LED lights are developed in Germany and are manufactured under stady testing and in line with the European regulations.
Related links to "Integra Square Recessed Spotlight"
Technical Details:
Luminous Flux: | 2800 lm |
LED Output: | 35 W |
Light Yield: | 74 lm/W |
Light Temperature: | 4000 K |
Light Color: | neutralwhite |
Color Rendering Index: | ≥80 Ra |
Beam Angle: | 36 ° |
Swappable Reflector: | |
Light Emission: | downward |
LED-Chip Manufacturer: | Sharp |
LED-Chip: | COB |
Number of LED: | 1 |
Ignition Time: | <0,5 s |
Input Current: | AC 220 - 240V, 50/60Hz |
Power Consumption: | 38 W |
Contains Driver: | |
Driver Manufacturer: | Tridonic |
Power Factor (PF): | >0.94 |
Input Driver: | terminal |
Output of Driver: | DC 20 - 90V |
CC/CV: | CC |
Input Lamp: | plug connector |
Switching Cycles: | >100.000 |
Ambient Temperature (TA): | -20°C - 40°C |
Dimensions: | 180x180x170 mm |
Cut-Out Dimensions: | 161x163 mm |
Mounting: | Decke |
Pivot Range pan: | 350 ° |
Pivot Range tilt: | 50 ° |
IP Class: | 20 |
Housing Color | white |
Housing Material: | aluminum |
Coating: | lacquered |
Net Weight: | 1169 g |
Type of Packaging: | box |
Weight incl. Packaging: | 1.281 kg |
Warranty | 3 years |
Operating Hours: | >40.000 h L70/B20 |
Disposal Obligation: | |
Customs Tariff Number: | 9405409990 |
Certifications | CE,RoHS |
Barcode: | 4250557806983 |
