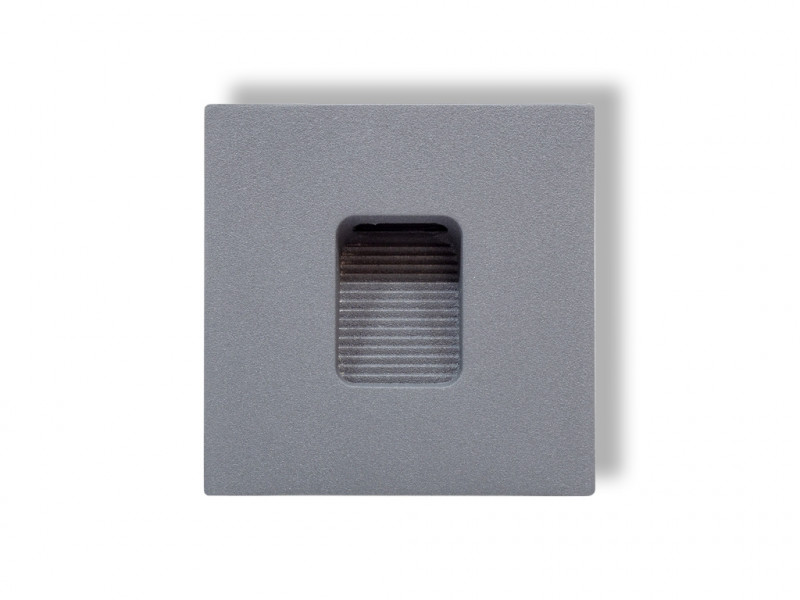

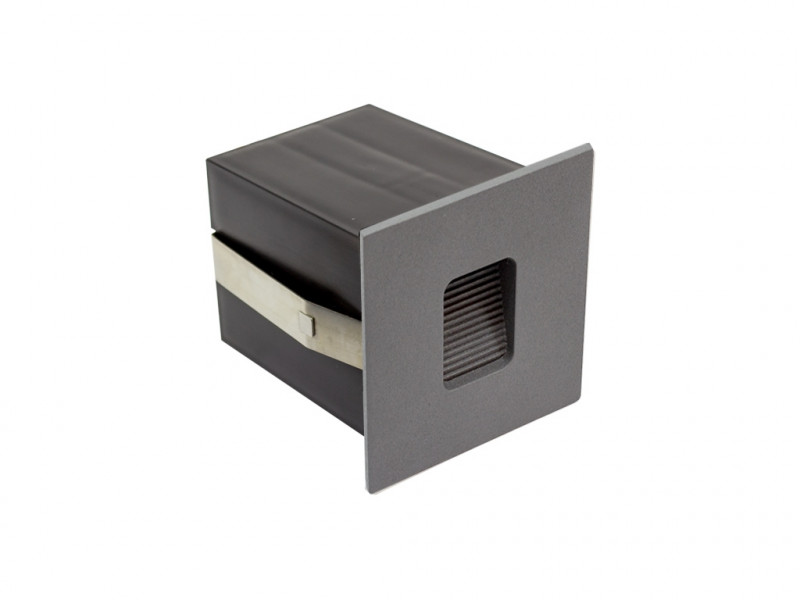

Lipal Sockellicht 3-830-48LM AZ
Order number: LG40297
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG40297
- Luminous Flux: 48 lm
- Power Draw: 3 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 100 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥84 Ra
- IP Code: 65
- Beam Angle: 83°
- LED-Chip: Cree High-Power
- Housing Color: grey
- Dimensions: 80x80x90 mm
- Cut-Out Dimensions: 65,5x65,5 mm
- Warranty: 2 years
LED pedestal light The Litegear® Lipal is a decorative and elegant LED... more
Product information "Lipal Sockellicht 3-830-48LM AZ"
LED pedestal light

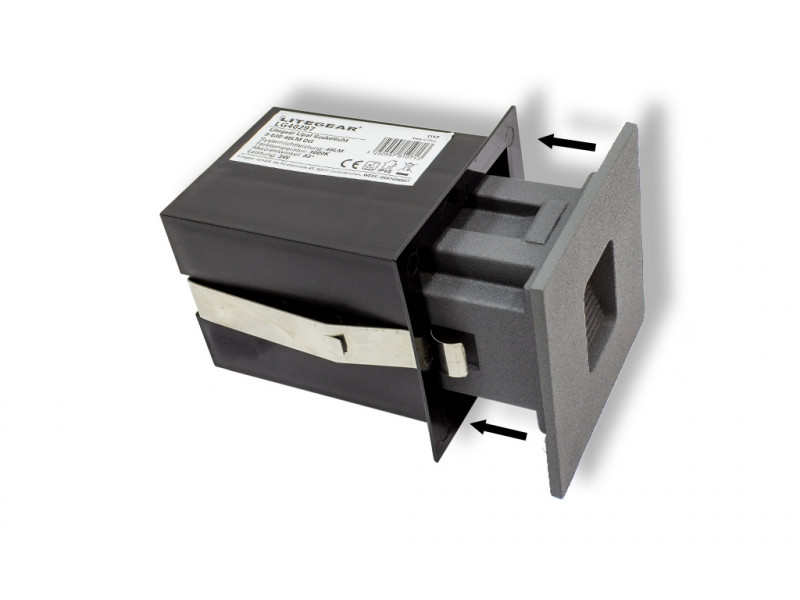

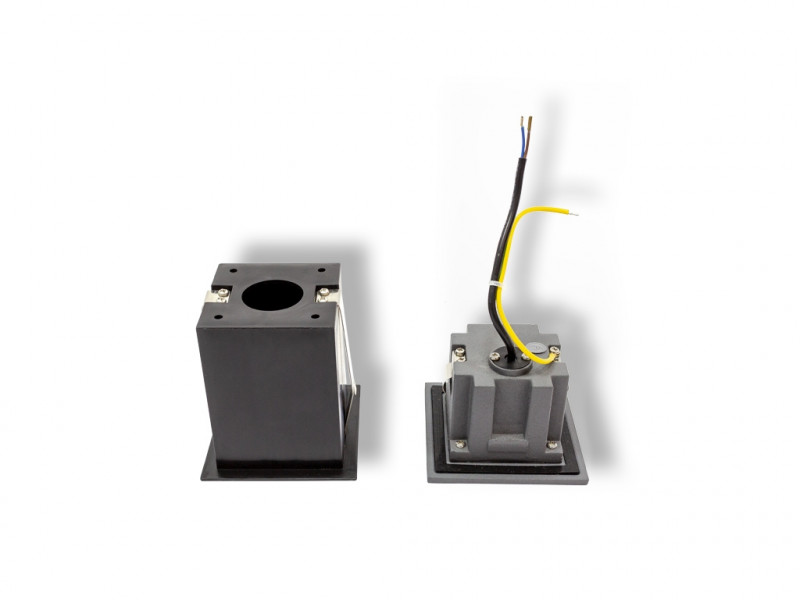

The Litegear® Lipal is a decorative and elegant LED pedestal light made of high quality aluminum for wall mounting. An LED radiates indirectly and glare-free via a stepped profile downwards. Lipal is the ideal recessed luminaire to illuminate stairs, corridors and sidewalks discreetly and decoratively. An efficient and durable LED technology ensures a reliable, long-lasting operation. The perfect, timeless design harmoniously adapts to any environment. Lipal comes with a inwall-mounted box and is protected against dust and humidity outdoors according to the IP65 standard. Since the luminaire depth is only 56mm there is enough space in the wall socket to connect the 230V wiring. The inwall box can be fixed by means of two lateral brackets or alternatively glued.
Lipal is available with white or anthracite colored housing.
Applications:
⦁ living room
⦁ bedroom
⦁ corridor
⦁ staircase
Related links to "Lipal Sockellicht 3-830-48LM AZ"
Technical Details:
| Luminous Flux: | 48 lm |
| LED Output: | 2 W |
| Light Yield: | 16 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥84 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 83 ° |
| Light Emission: | sideward |
| LED-Chip Manufacturer: | Cree |
| LED-Chip: | High-Power |
| Number of LED: | 1 |
| Ignition Time: | <1 s |
| Input Current: | AC 100 - 240V, 50/60Hz |
| Power Consumption: | 3 W |
| Contains Driver: |  |
| Driver Manufacturer: | Eagle Rise |
| Power Factor (PF): | >0.5 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 2,5-4V, 700mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >25.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 40°C |
| Dimensions: | 80x80x90 mm |
| Installation Depth: | 56 mm |
| Cut-Out Dimensions: | 65,5x65,5 mm |
| Mounting: | Wand |
| Montageart: | recessed |
| IP Class: | 65 |
| Housing Color | grey |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Cover: | clear |
| Net Weight: | 256 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 105x90x90 |
| Weight incl. Packaging: | 0.284 kg |
| Content Master Package: | 50 |
| Dimensions of Master Package: | 470x200x400 mm |
| Weight Master Package: | 14,94 kg |
| Product Line: | ECO Line |
| Warranty | 2 years |
| Operating Hours: | >30.000 h L70/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,LM80,D |
| Barcode: | 4250557810713 |
Dekorative LED-Treppeneinbauleuchte aus Aluminium für den Einbau mediums Wanddose more
Dekorative LED-Treppeneinbauleuchte aus Aluminium für den Einbau mediums Wanddose
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 65,5x65,5 mm
Einbautiefe: 56 mm
Temperaturbereich: -20°C - 40°C
Lichtstrom: 48 lm
LED-Leistung: 3 W
Leuchten-Lichtausbeute: 16 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >84
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 83°
Lichtaustritt: direkt
Maße: 80x80x90 mm
Montageart: Einbau (Wand)
Schutzart (DIN EN 60529): IP65
Außenfarbe: grey
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: klar
Nettogewicht: 256 g
Garantie: 2 Jahre
Mittlere Lebensdauer (L70/B20): 30000 h
Vorschaltgerät: LED-Treiber
Deckenausschnitt: 65,5x65,5 mm
Einbautiefe: 56 mm
Temperaturbereich: -20°C - 40°C
Lichtstrom: 48 lm
LED-Leistung: 3 W
Leuchten-Lichtausbeute: 16 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >84
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 83°
Lichtaustritt: direkt
Maße: 80x80x90 mm
Montageart: Einbau (Wand)
Schutzart (DIN EN 60529): IP65
Außenfarbe: grey
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: klar
Nettogewicht: 256 g
Garantie: 2 Jahre
Mittlere Lebensdauer (L70/B20): 30000 h
