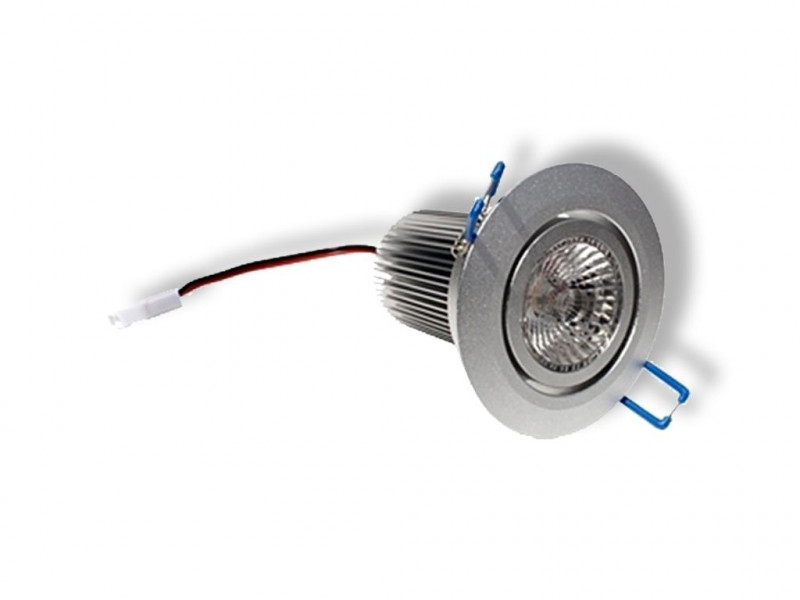

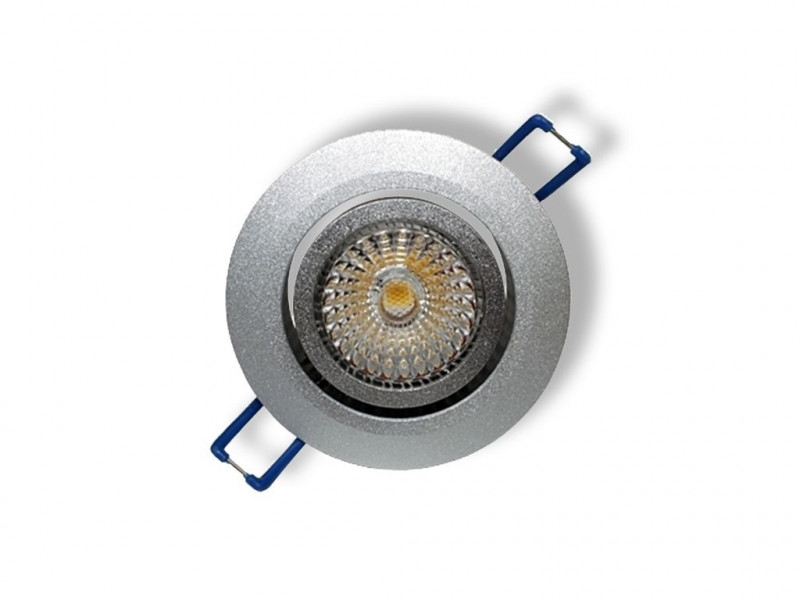

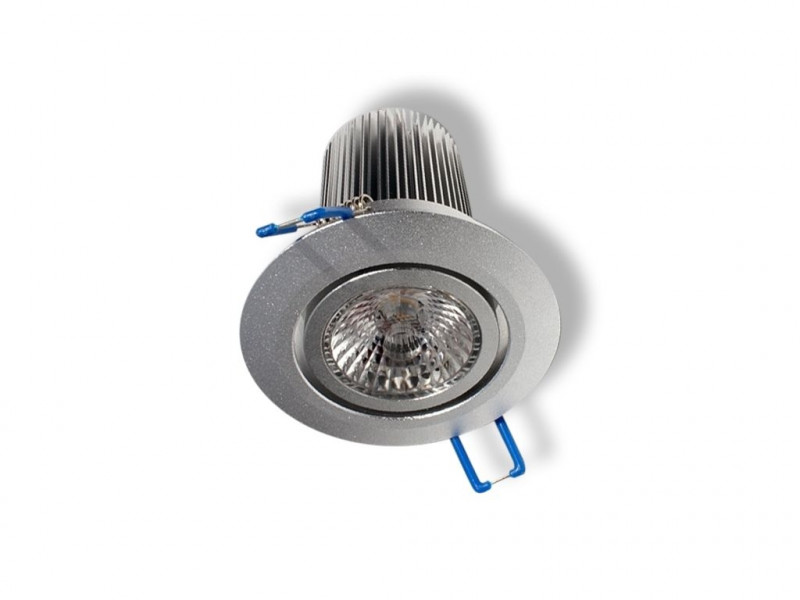

Paraflecta Downlight 9-830-560LM
Order number: LG10223
Prices are only visible after login.
Last Stock
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG10223
- Luminous Flux: 560 lm
- Power Draw: 9 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 38°
- LED-Chip: Sharp COB
- Housing Color: silver
- Dimensions: 85x71 mm
- Cut-Out Dimensions: 72 mm
- Warranty: 3 years
LED Downlight Recessed LED Downlight with COB LED Chip and Paraflecta lens.... more
Product information "Paraflecta Downlight 9-830-560LM"
LED Downlight
Recessed LED Downlight with COB LED Chip and Paraflecta lens.
Elegant and timeless design, tiltable LED unit (+/-25°).
Including LED driver (DC power supply)
Beamangle: 38°
housing color: silver and white
CCT: warm white
applications: indoor IP 20, livingroom, bedroom, office, shop, corridors
Related links to "Paraflecta Downlight 9-830-560LM"
Technical Details:
| Luminous Flux: | 560 lm |
| LED Output: | 8 W |
| Light Yield: | 62 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 38 ° |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | "Triac Phasenan-/abschnitt" |
| LED-Chip Manufacturer: | Sharp |
| LED-Chip: | COB |
| Number of LED: | 1 |
| Ignition Time: | <1 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 9 W |
| Contains Driver: | |
| Power Factor (PF): | >0.9 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 25 - 42V, 180mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 40°C |

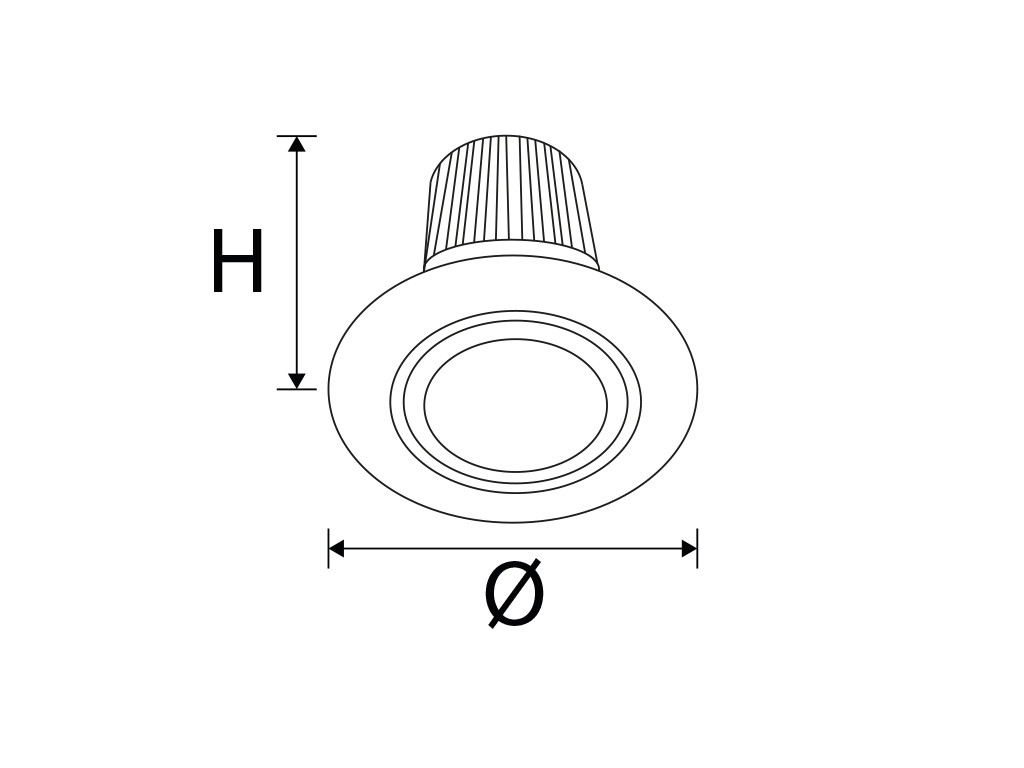

| Dimensions: | 85x71 mm |
| Installation Depth: | 71 mm |
| Cut-Out Dimensions: | 72 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| Pivot Range tilt: | 25 ° |
| IP Class: | 20 |
| Housing Color | silver |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Cover: | Lens |
| Net Weight: | 297 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 130x95x115 |
| Weight incl. Packaging: | 0.354 kg |
| Content Master Package: | 24 |
| Dimensions of Master Package: | 310x250x540 mm |
| Weight Master Package: | 8,88 kg |
| Product Line: | Essential Line |
| Warranty | 3 years |
| Operating Hours: | >30.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE |
| Barcode: | 4250557802152 |
Runder modularer LED-Einbauspot inkl. 3 Frontblenden, wählbarer Lichtfarbe und Leistungsanpassung... more
Runder modularer LED-Einbauspot inkl. 3 Frontblenden, wählbarer Lichtfarbe und Leistungsanpassung für 65-70mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Deckenausschnitt: 72 mm
Einbautiefe: 71 mm
Temperaturbereich: -20°C - 40°C
Lichtstrom: 560 lm
LED-Leistung: 9 W
Leuchten-Lichtausbeute: 62 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 38°
Lichtaustritt: direkt
Maße: 85x71 mm
Montageart: Einbau (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: silver
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: Linse
Nettogewicht: 297 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 30000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Deckenausschnitt: 72 mm
Einbautiefe: 71 mm
Temperaturbereich: -20°C - 40°C
Lichtstrom: 560 lm
LED-Leistung: 9 W
Leuchten-Lichtausbeute: 62 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 38°
Lichtaustritt: direkt
Maße: 85x71 mm
Montageart: Einbau (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: silver
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: Linse
Nettogewicht: 297 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 30000 h
