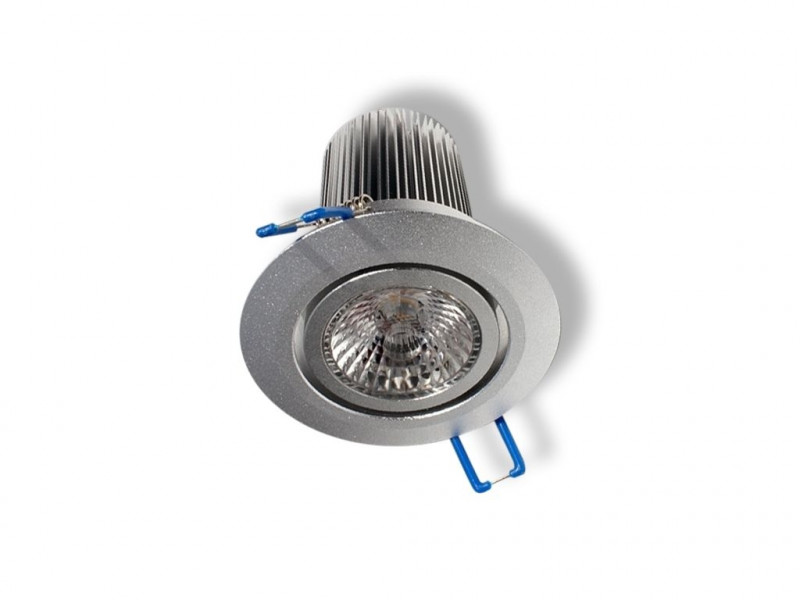

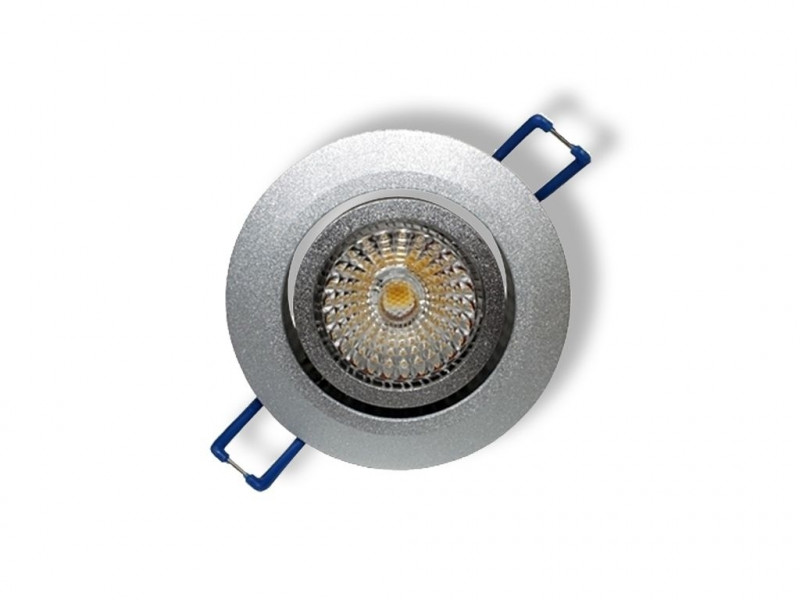

Paraflecta Downlight 9-830-560LM

Preise sind erst nach der Anmeldung sichtbar.

Availability: low stock


  • LG10255
  • Luminous Flux: 560 lm
  • Power Draw: 9 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 220 - 240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20
  • Beam Angle: 38°
  • LED-Chip: Sharp COB
  • Housing Color: white
  • Dimensions: 85x71 mm
  • Cut-Out Dimensions: 72 mm
  • Warranty: 3 years

Luminous Flux


Power Draw

9 W

Light Color

3000 K

Color Rendering Index (CRI)

>80 Ra

IP Code

IP 20

Beam Angle


mounting type

Light Direction

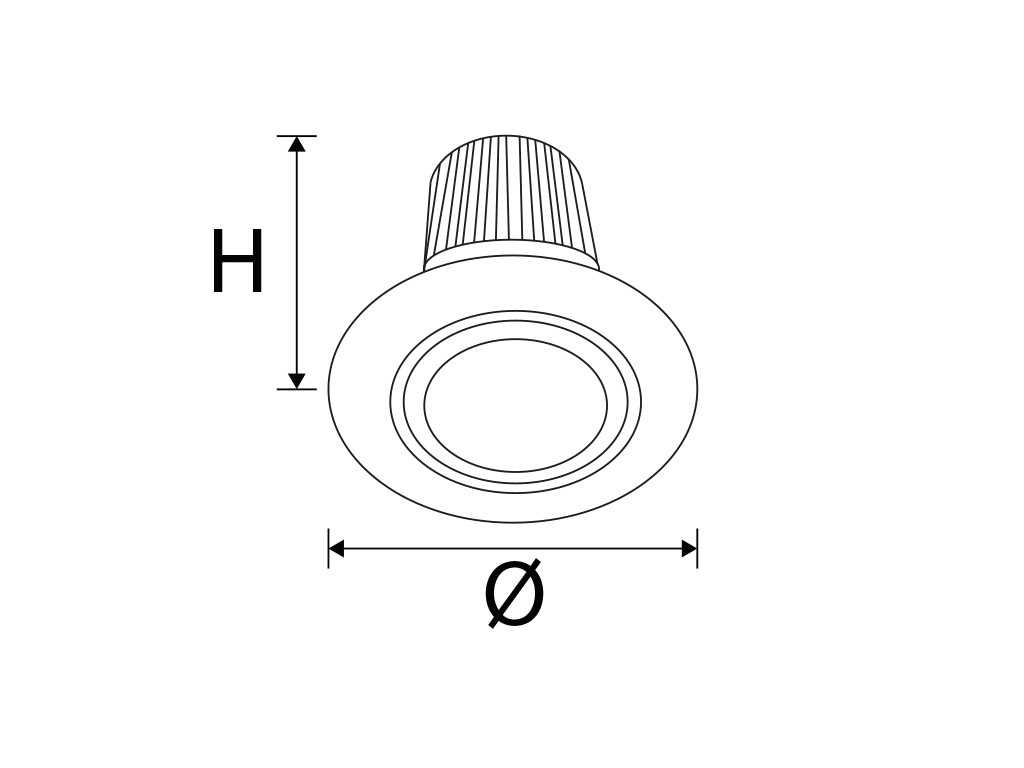

(ØxH) in mm


3 years

LED Downlight   Recessed LED Downlight with COB LED Chip and Paraflecta lens.... more
Product information "Paraflecta Downlight 9-830-560LM"
LED Downlight
Recessed LED Downlight with COB LED Chip and Paraflecta lens.
Elegant and timeless design, tiltable LED unit (+/-25°).
Including LED driver (DC power supply)
Beamangle: 38°
housing color: silver and white
CCT: warm white
applications: indoor IP 20, livingroom, bedroom, office, shop, corridors
Related links to "Paraflecta Downlight 9-830-560LM"
Technical Details:
Luminous Flux: 560 lm
LED Output: 8 W
Light Yield: 62 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Beam Angle: 38 °
Light Emission: downward
LED-Chip Manufacturer: Sharp
Number of LED: 1
Ignition Time: <0,5 s
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 9 W
Contains Driver: ja
Power Factor (PF): >0.9
Input Driver: cable with flying leads
Output of Driver: DC 18 - 32V, 255mA
Input Lamp: plug connector
Switching Cycles: >50.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 40°C
Dimensions: 85x71 mm
Installation Depth: 71 mm
Cut-Out Dimensions: 72 mm
Mounting: Decke
Montageart: recessed
Pivot Range pan: 360 °
Pivot Range tilt: 25 °
IP Class: 20
Housing Color white
Housing Material: aluminum
Coating: lacquered
Net Weight: 297 g
Type of Packaging: box
Dimensions of Packaging: 130x95x115
Weight incl. Packaging: 0.354 kg
Content Master Package: 24
Dimensions of Master Package: 310x250x540 mm
Weight Master Package: 8,88 kg
Product Line: ECO Line
Warranty 3 years
Operating Hours: >30.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,RoHS,EMC,LVD,D
Barcode: 4250557805290
