Szena Drop Eco 36/30-830-2490LM

LG10441
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG10441
  • Luminous Flux: 2490 lm
  • Power Draw: 30 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 220 - 240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20
  • Beam Angle: 36°
  • LED-Chip: Sharp COB
  • Housing Color: white
  • Dimensions: 140x153 mm
  • Cut-Out Dimensions: 129 mm
  • Warranty: 3 years

Luminous Flux

2490
lm

Power Draw

30 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

36°

mounting type

Dimensions

(ØxH) in mm
140x153

Warranty

3 years

LED Celling-Spot light Scena Drop in the variant as a surface light LED spot, takes... more
Product information "Szena Drop Eco 36/30-830-2490LM"
LED Celling-Spot light

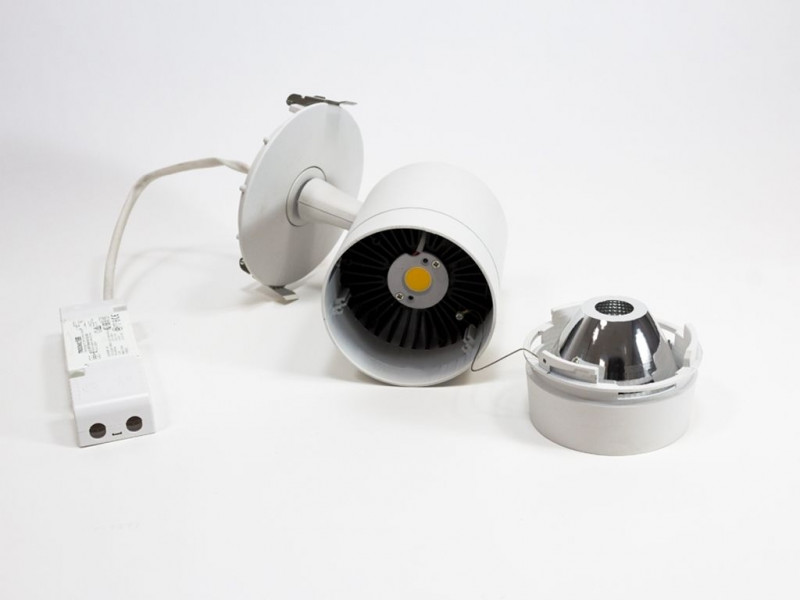

Scena Drop in the variant as a surface light LED spot, takes over the proven technology of the Scena Eco series. Szena Drop is a special version as an surface mount spotlight for suspendet ceilings with round cut outs. The enclosed ballast can then be elegantly hidden in the suspendet plaster board ceiling. The swivel range (90 ° x 330 °) is much larger than with built-in spots and thus also easily reaches higher-positioned goods and products in a sales room. Mounting by means of ceiling clamps in the round cutout.
Related links to "Szena Drop Eco 36/30-830-2490LM"
Technical Details:

Luminous Flux: 2490 lm
LED Output: 28 W
Light Yield: 83 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <4
Beam Angle: 36 °
Swappable Reflector: ja
Light Emission: sideward
LED-Chip Manufacturer: Sharp
LED-Chip: COB
Ignition Time: <0,5 s
Input Current: AC 220 - 240V, 50/60Hz
Power Consumption: 30 W
Contains Driver: ja

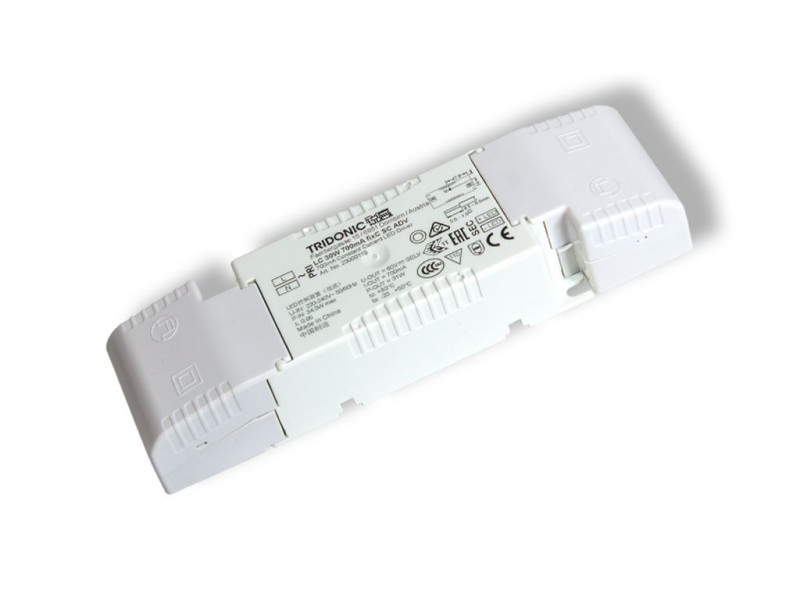

Driver Manufacturer: Tridonic
Power Factor (PF): >0.96
Input Driver: cable with flying leads
Output of Driver: DC 22 - 45V, 700mA
CC/CV: CC
Input Lamp: cable with flying leads
Switching Cycles: >100.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 40°C
Dimensions: 140x153 mm
Cut-Out Dimensions: 129 mm
Mounting: Decke
Montageart: recessed
Pivot Range pan: 330 °
Pivot Range tilt: 90 °
IP Class: 20
Housing Color white
Housing Material: aluminum
Coating: powder-coated
Special Feature of Housing: Anbaugehäuse
Net Weight: 983 g
Type of Packaging: box
Dimensions of Packaging: 165x245x165
Weight incl. Packaging: 1.114 kg
Content Master Package: 12
Dimensions of Master Package: 510x345x505 mm
Weight Master Package: 14,21 kg
Product Line: ECO Line
Warranty 3 years
Operating Hours: >40.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,RoHS,EMC,LVD,Reach
Barcode: 4250557808758
