Szena Drop Eco 36/30-840-2690LM
Order number: LG10442
Preise sind erst nach der Anmeldung sichtbar. ![Dimensions]( "Dimensions")
Availability: Ready to ship today, Delivery time appr. 1-3 workdays

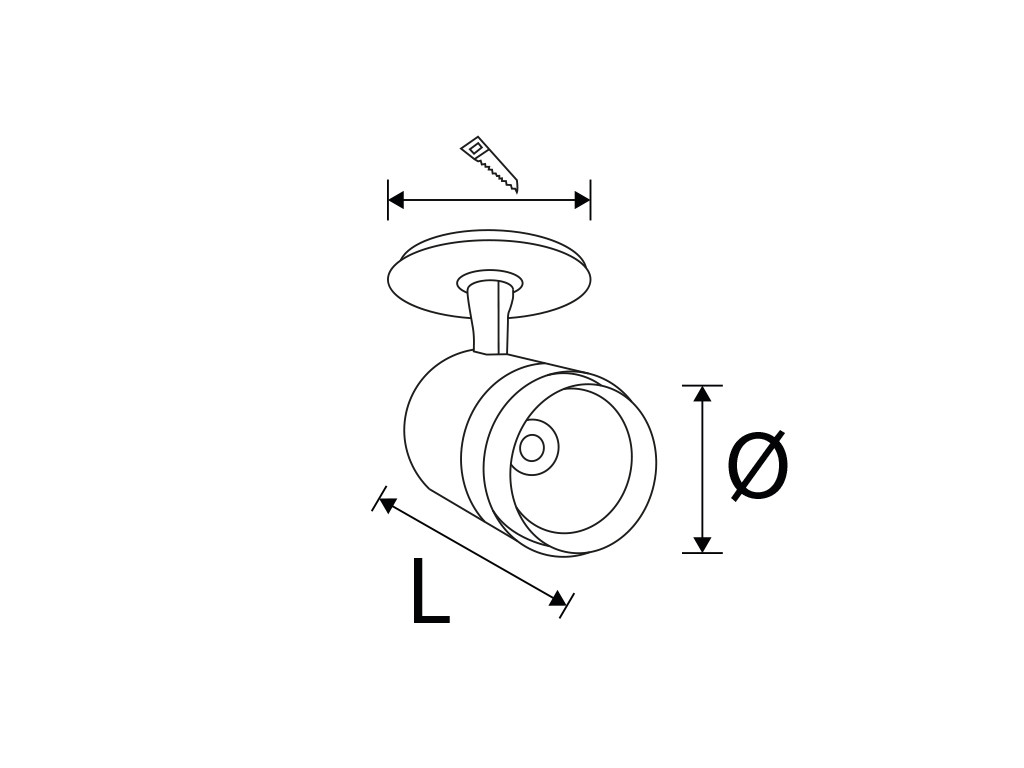

Dimensions
- Order number: : LG10442
- Luminous Flux: 2690 lm
- Power Draw: 30 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 36°
- LED-Chip: Sharp COB
- Housing Color: white
- Dimensions: 140x153 mm
- Cut-Out Dimensions: 129 mm
- Warranty: 3 years
LED Celling-Spot light Scena Drop in the variant as a surface light LED spot, takes... more
Product information "Szena Drop Eco 36/30-840-2690LM"
LED Celling-Spot light
Scena Drop in the variant as a surface light LED spot, takes over the proven technology of the Scena Eco series. Szena Drop is a special version as an surface mount spotlight for suspendet ceilings with round cut outs. The enclosed ballast can then be elegantly hidden in the suspendet plaster board ceiling. The swivel range (90 ° x 330 °) is much larger than with built-in spots and thus also easily reaches higher-positioned goods and products in a sales room. Mounting by means of ceiling clamps in the round cutout.
Related links to "Szena Drop Eco 36/30-840-2690LM"
Technical Details:
| Luminous Flux: | 2690 lm |
| LED Output: | 28 W |
| Light Yield: | 90 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Beam Angle: | 36 ° |
| Swappable Reflector: |  |
| LED-Chip Manufacturer: | Sharp |
| LED-Chip: | COB |
| Number of LED: | 1 |
| Ignition Time: | <1 s |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 30 W |
| Contains Driver: | |

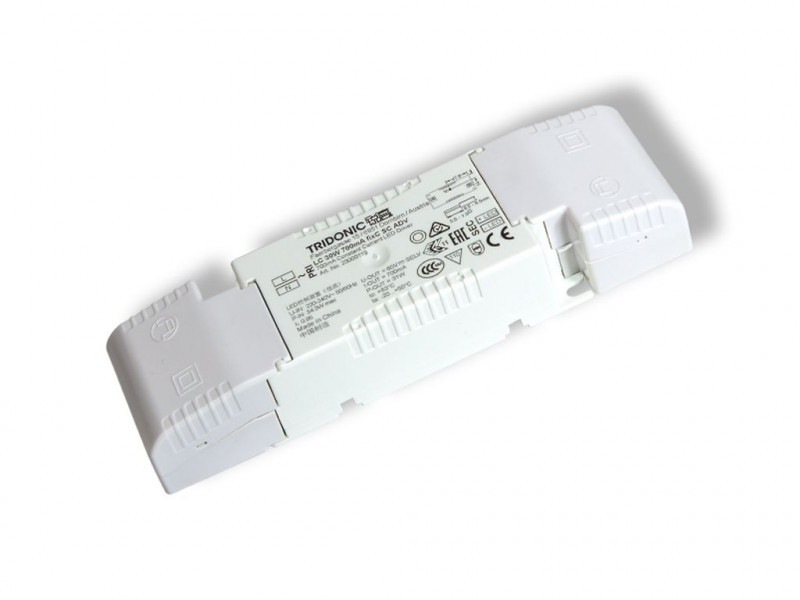

| Driver Manufacturer: | Tridonic |
| Power Factor (PF): | >0.96 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 22 - 45V, 700mA |
| CC/CV: | CC |
| Input Lamp: | cable with flying leads |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 45°C |
| Dimensions: | 140x153 mm |
| Cut-Out Dimensions: | 129 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| Pivot Range pan: | 330 ° |
| Pivot Range tilt: | 90 ° |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | Surface mounted spot |
| Net Weight: | 983 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 165x245x165 |
| Weight incl. Packaging: | 1.114 kg |
| Content Master Package: | 12 |
| Dimensions of Master Package: | 510x345x505 mm |
| Weight Master Package: | 14,21 kg |
| Product Line: | ECO Line |
| Warranty | 3 years |
| Operating Hours: | >40.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,RoHS,EMC,LVD,Reach |
| Barcode: | 4250557808765 |
