Preview: PARAFLECTA Downlight 8-60-827/857-760LM IP65 front

PARAFLECTA Downlight 8-60-827/857-760LM IP65 front

Product Info (PDF)

Order number: LG10407

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG10407
Luminous Flux: 760 lm
Power Draw: Power Select (5, 8 W)
Light Color: CCT Select (2700, 3000, 4000, 5700 K)
Input Current: AC 220 - 240V, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20 (65 room side)

Beam Angle: 60°
LED-Chip: SMD2835
Housing Color: black/white
Dimensions: 90x45 mm
Cut-Out Dimensions: 65-70 mm
Warranty: 3 years

Luminous Flux

760
lm

Power Draw

8 W

Light Color

2700, 3000, 4000, 5700 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

IP Class Room Side

IP 65
room side

Beam Angle

60°

mounting type

Light Direction

Dimensions

(ØxH) in mm
90x45

Warranty

3 years

Litegear ® universal Retrofit LED-Module suitable for recessed MR16 downlight... more

Close menu

Product information "PARAFLECTA Downlight 8-60-827/857-760LM IP65 front"

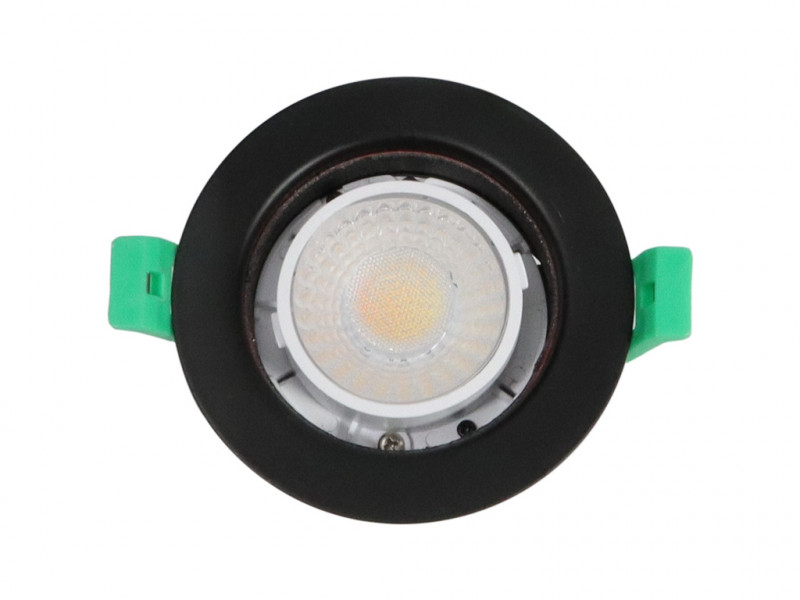

Litegear ® universal Retrofit LED-Module suitable for recessed MR16 downlight fittings

One Fit all

perfect replacement for konventional downlights with halogen MR16 GU5,3 or GU10 socket
interchangeable bezel (not included)
high system effcency up to 100lm/W (475-760lm)
selectable output power 5/8W via switch (5W: 475-550lm / 8W: 640-760lm)
CCT selectable 2700, 3000, 4000, 5700 Kelvin via switch

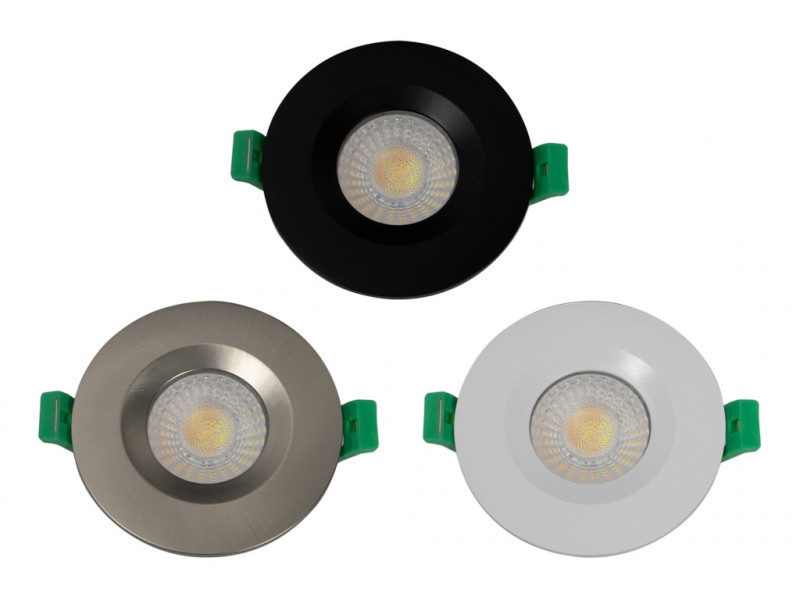

Including 3 bezels: white, black, silver brushed
beamangle: 60°
Triac dimmable with common dimmers
compact dimensions: 90mm Dimensions: and only 45mm high for recessed ceilings with limited space cut out: 65mm

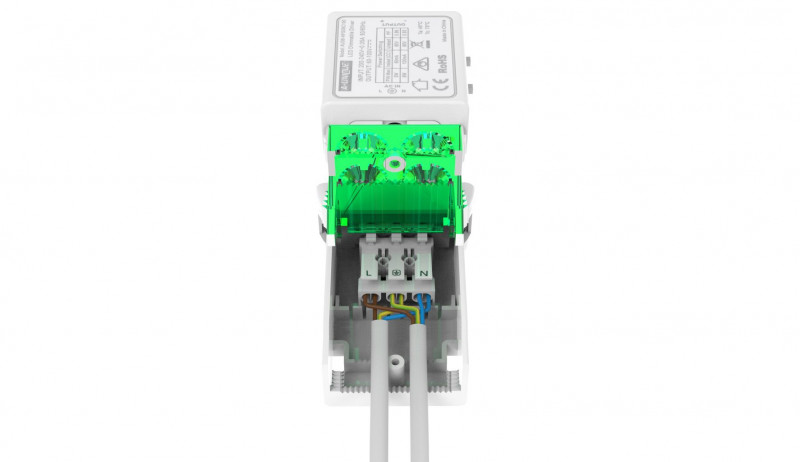

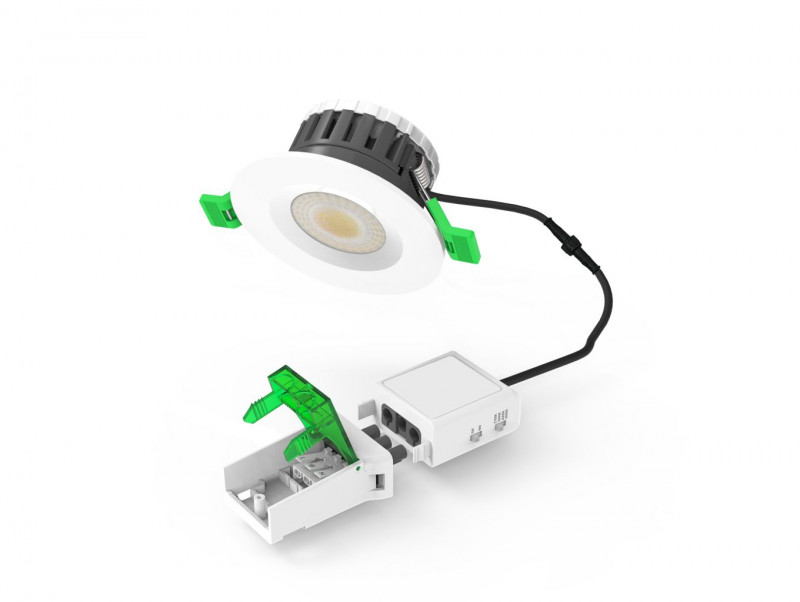

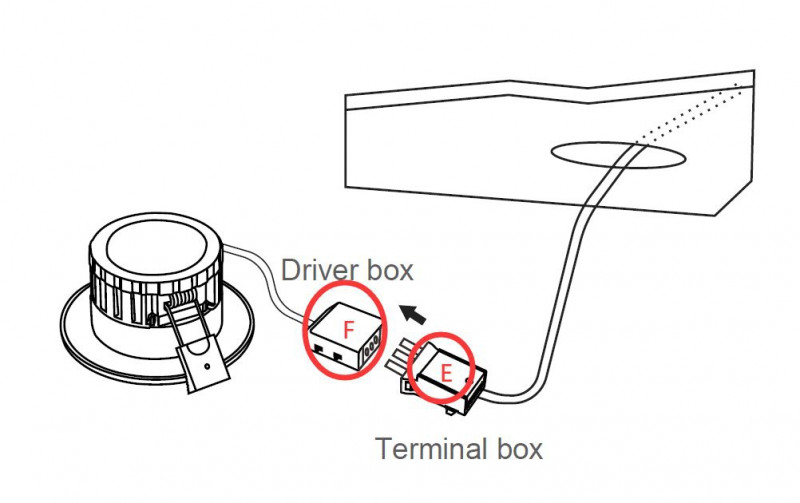

tool free, plugable terminal box for power loop 240V AC, perfect for replacing the driver or renovations
Fire rated downlight: 90mins - BS476-21 (for Europe)
IP65 waterproof from front side
good color rendering index: CRI >80
flicker free light

Related links to "PARAFLECTA Downlight 8-60-827/857-760LM IP65 front"

Zurück

Technical Details:

Luminous Flux:	760 lm
LED Output:	7.5 W
Light Yield:	95 lm/W
Light Temperature:	2700, 3000, 4000, 5700 K
Light Color:	CCT Select
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<5
Beam Angle:	60 °
Light Emission:	downward
Dimmable:
Method of Dimming:	"Triac Phasenan-/abschnitt"
LED-Chip:	SMD2835
Ignition Time:	<0,5 s

Input Current:	AC 220 - 240V, 50/60Hz
Power Consumption:	Power Select (5, 8 W)
Contains Driver:
Driver Manufacturer:	Litegear
Input Driver:	terminal
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	plug connector
Switching Cycles:	>50.000
Electrical Protection Class:	II
Loop-Through Cabling:
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-40°C - 60°C

Dimensions:	90x45 mm
Cut-Out Dimensions:	65-70 mm
Mounting:	Decke
Montageart:	recessed
IP Class:	20 (65 room side)
IK Code:	10
Housing Color	black/white
Housing Material:	Aluminium/plastic
Coating:	lacquered
Cover:	Lens
Net Weight:	260 g

Type of Packaging:	box
Dimensions of Packaging:	100x100x85
Weight incl. Packaging:	0.318 kg
Content Master Package:	48
Dimensions of Master Package:	410x315x360 mm
Weight Master Package:	14,5 kg

Product Line:	Advance Line
Warranty	3 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,LM80,ERP
Barcode:	4250557822570
Universelles, modulares Downlight
wechselbare Frontblende (nicht enthalten)
kompatibel mit den meisten Phasenan-/abschnitsdimm
campatible with most Triac dimmer
flickerfree and fire rated downlight

Technical Data Sheet (PDF)

Runder modularer LED-Einbauspot inkl. 3 Frontblenden, wählbarer Lichtfarbe und Leistungsanpassung... more

Zurück

Runder modularer LED-Einbauspot inkl. 3 Frontblenden, wählbarer Lichtfarbe und Leistungsanpassung für 65-70mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Deckenausschnitt: 65-70 mm
Temperaturbereich: -20°C - 45°C
Lichtstrom: 760 lm
LED-Leistung: Power Select (5, 8 W)
Leuchten-Lichtausbeute: 95 lm/W
Farbtemperatur: 2700, 3000, 4000, 5700 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 60°
Lichtaustritt: direkt
Maße: 90x45 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20 (IP65 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: black/white
Gehäusematerial: Aluminium/plastic
Gehäusebeschichtung: lackiert
Abdeckung: Linse
Nettogewicht: 260 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h

Zurück
