Preview: OMNIA Downlight 4/6-60-927/960-600LM max. IP65 front Triac Dim

OMNIA Downlight 4/6-60-927/960-600LM max. IP65 front Triac Dim

Product Info (PDF)

Order number: LG10480

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG10480
Luminous Flux: 600 lm
Power Draw: Power Select (4, 6 W)
Light Color: CCT Select (2700, 3000, 4000, 6000 K)
Input Current: AC 220 - 240V, 100mA, 50/60Hz
Color Rendering Index (CRI): ≥90 Ra
IP Code: 20 (65 room side)

Beam Angle: 60°
LED-Chip: San'an SMD2835

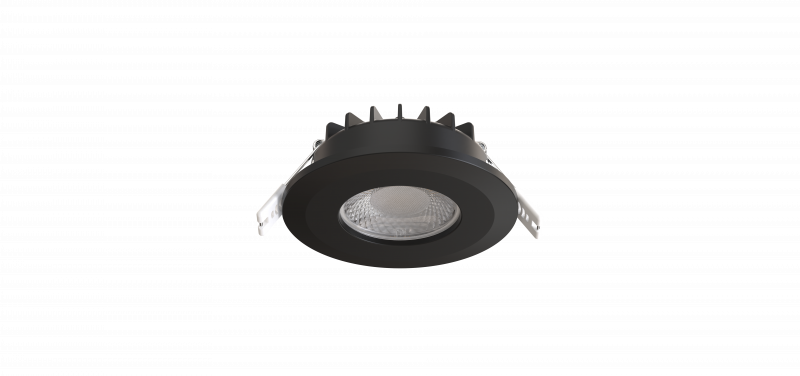

Housing Color: black/white
Dimensions: 88x40 mm
Cut-Out Dimensions: 68-70 mm
Warranty: 3 years

Luminous Flux

600
lm

Power Draw

6 W

Light Color

2700, 3000, 4000, 6000 K
CCT Select

Color Rendering Index (CRI)

CRI
>90 Ra

IP Code

IP 20

IP Class Room Side

IP 65
room side

Beam Angle

60°

mounting type

Light Direction

Dimensions

(ØxH) in mm
88x40

Warranty

3 years

The light source cannot be replaced

The driver cannot be replaced

Litegear ® universal LED-Downlight - One Fit all ... more

Close menu

Product information "OMNIA Downlight 4/6-60-927/960-600LM max. IP65 front Triac Dim"

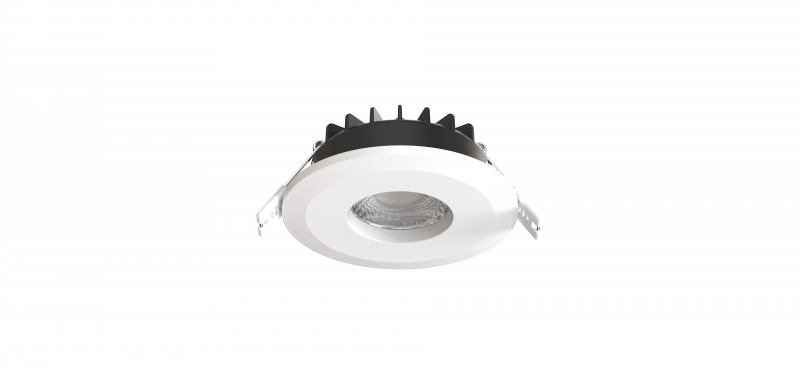

Litegear ® universal LED-Downlight - One Fit all

Triac dimmable Downlight for leading- or trailing edge dimming
perfect replacement for konventional downlights with halogen MR16 GU5,3 or GU10 socket
Damp proof luminaire IP65 front

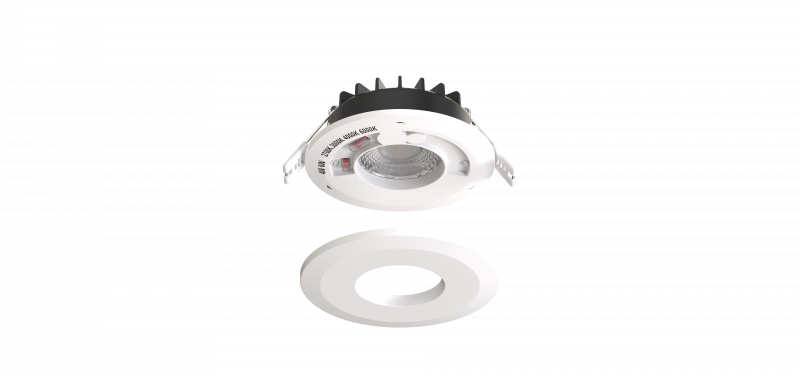

interchangeable magnetic bezel (white color ring included)
high system effcency up to 105lm/W (440-660lm) High CRI: >90
Power select: 4/6W switchable

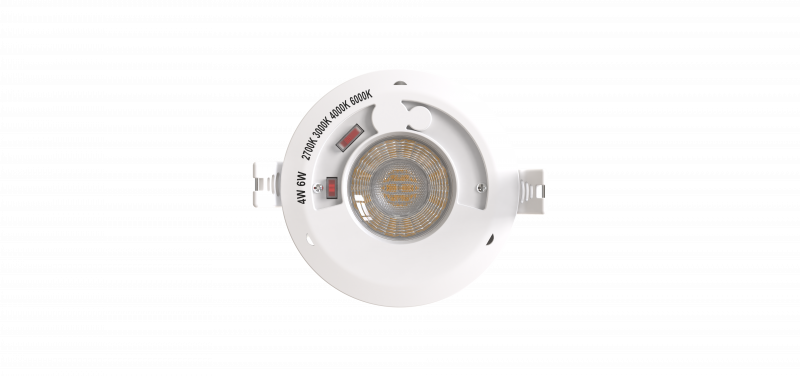

CCT selectable 2700, 3000, 4000, 6000 Kelvin via switch behind the bezel

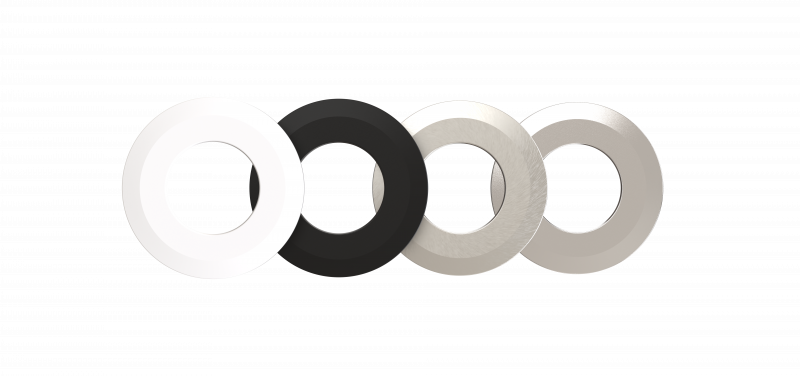

optional other bezel colours available: black, silver brushed
beamangle: 60°
compact dimensions: 88mm Dimensions: and only 35mm high for recessed ceilings with limited space cut out: 68-70mm only 32mm deep

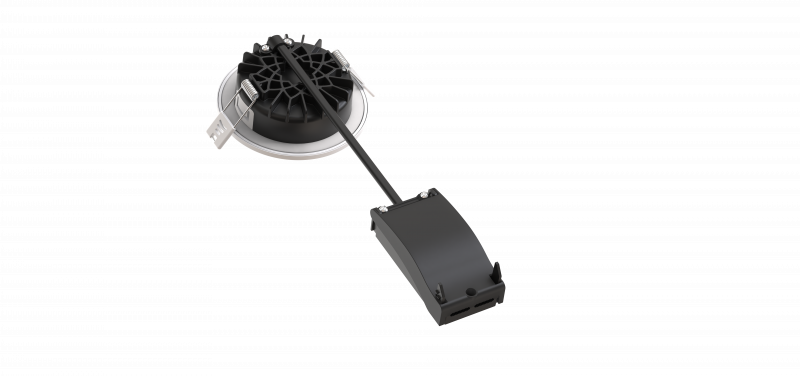

plugable terminal box for power loop 240V AC
Master/Slave function: 1 to 2 Omnia Smart Downlights can control several pasive Omnia downlight from same range up to 200W load as salves

Applications:

hall way, storage rooms, toilet, dressing room, seller, balcony, entrance door, outside under cannopies, Terrace,attica, walkways

Related links to "OMNIA Downlight 4/6-60-927/960-600LM max. IP65 front Triac Dim"

Zurück

Technical Details:

Luminous Flux:	600 lm
LED Output:	4.5 W
Light Yield:	110 lm/W
Light Temperature:	2700, 3000, 4000, 6000 K
Light Color:	CCT Select
Color Rendering Index:	≥90 Ra
Color Consistency (SDCM):	<6
Beam Angle:	60 °
Unified Glare Rating (UGR):	30
Light Emission:	downward
Dimmable:
Method of Dimming:	"Triac Phasenan-/abschnitt"
LED-Chip Manufacturer:	San'an
LED-Chip:	SMD2835
Number of LED:	20
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

Input Current:	AC 220 - 240V, 100mA, 50/60Hz
Power Consumption:	Power Select (4, 6 W)
Contains Driver:
Power Factor (PF):	>0.5
Input Driver:	terminal
CC/CV:	CC
Input Lamp:	Terminal Anschlußdose
Switching Cycles:	>100.000
Electrical Protection Class:	II
Loop-Through Cabling:
Ambient Temperature (TA):	-20°C - 40°C
Storage Temperature:	-40°C - 60°C

Dimensions:	88x40 mm
Installation Depth:	32 mm
Cut-Out Dimensions:	68-70 mm
Mounting:	Decke
Montageart:	recessed
IP Class:	20 (65 room side)
IK Code:	02
Housing Color	black/white
Housing Color (RAL Code):	similar 9005
Housing Material:	Aluminium/PC
Coating:	powder-coated
Special Feature of Housing:	flaches Gehäuse, Terminal
Cover:	Lens
Net Weight:	144 g

Type of Packaging:	box
Dimensions of Packaging:	100x90x40
Weight incl. Packaging:	0.184 kg
Content Master Package:	40
Dimensions of Master Package:	480x220x310 mm
Weight Master Package:	7,73 kg

Product Line:	Advance Line
Warranty	3 years
Operating Hours:	>50.000 h L70/B50
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,LM80,ERP
Barcode:	4250557827520
Universelles, flaches LED-Downlight m. Anschlußdos
wechselbare magnetische Frontblende white enthalten
Power- and CCT selectable

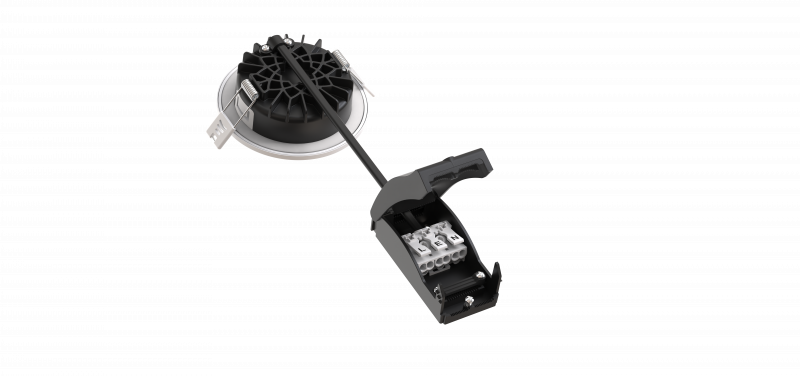

incl. Terminalbox 3 pin, power loop in/out
incl. white bezel, inkl. whiteer Belnde

Technical Data Sheet (PDF)

Runder modularer LED-Einbauspot inkl. 3 Frontblenden, wählbarer Lichtfarbe und Leistungsanpassung... more

Zurück

Runder modularer LED-Einbauspot inkl. 3 Frontblenden, wählbarer Lichtfarbe und Leistungsanpassung für 65-70mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Deckenausschnitt: 68-70 mm
Einbautiefe: 32 mm
Temperaturbereich: -20°C - 40°C
Lichtstrom: 600 lm
LED-Leistung: Power Select (4, 6 W)
Leuchten-Lichtausbeute: 110 lm/W
Farbtemperatur: 2700, 3000, 4000, 6000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 60°
UGR: 30
Lichtaustritt: direkt
Maße: 88x40 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20 (IP65 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK02
Außenfarbe: black/white (9005)
Gehäusematerial: Aluminium/PC
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 144 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 50000 h
