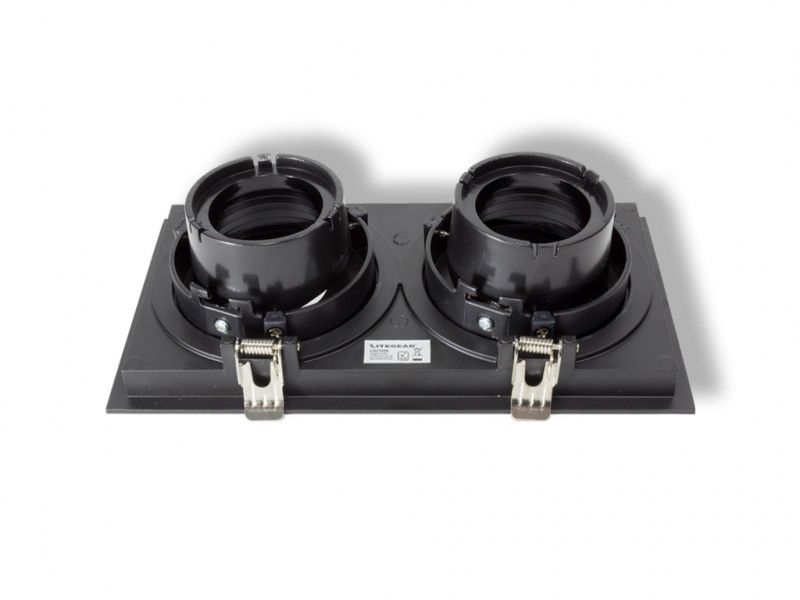

Plaja Frame Double Slot Square
Order number: LG21018
Prices are only visible after login.
Availability: on request
Dimensions
Short information
- Order number: : LG21018
- Housing Color: black
- Dimensions: 203x111x54 mm
- Cut-Out Dimensions: 190x98 mm
- Warranty: 2 years
mounting type
Light Direction
Dimensions
(LxBxH) in mm
203x111x54
Warranty
2 years
Plaja With the Plaja downlight series Litegear® has created a... more
Product information "Plaja Frame Double Slot Square"
Plaja
With the Plaja downlight series Litegear® has created a flexible, modular and usefull LED based downlight for lighting designers. Different LED modules can be mixed and combined with a wide variety of downlight frames.
The LED modules are available in different light colours and optics. The frames are available in white and black housing color. Within seconds the modul can be attached on the suitable frame.
This wide variety makes Plaja usefull for different applications like: restaurant, hotel, shop or residential lighting. A strong, unique tool for creative lighting designers.
suitable light sources: Plaja LED module or GU10 PAR16
Related links to "Plaja Frame Double Slot Square"
Technical Details:
| Light Emission: | downward |
| Ambient Temperature (TA): | -10°C - 40°C |
| Dimensions: | 203x111x54 mm |
| Installation Depth: | 52 mm |
| Cut-Out Dimensions: | 190x98 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| Pivot Range pan: | 30 ° |
| Housing Color | black |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Net Weight: | 300 g |
| Type of Packaging: | bag |
| Dimensions of Packaging: | 300x180x1 |
| Weight incl. Packaging: | 0.305 kg |
| Content Master Package: | 40 |
| Dimensions of Master Package: | 625x220x410 mm |
| Weight Master Package: | 14,64 kg |
| Warranty | 2 years |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE |
| Barcode: | 4250557809816 |
Rundes oder quadratisches komplett modulares LED-Einbaudownlight mit zahlreichen... more
Rundes oder quadratisches komplett modulares LED-Einbaudownlight mit zahlreichen Kombinationsmöglichkeiten und wählbaren Einbaurahmen
Vorschaltgerät: nicht enthalten
Deckenausschnitt: 190x98 mm
Einbautiefe: 52 mm
Temperaturbereich: -10°C - 40°C
Lichtaustritt: direkt
Maße: 203x111x54 mm
Montageart: Einbau (Decke)
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 300 g
Garantie: 2 Jahre
Vorschaltgerät: nicht enthalten
Deckenausschnitt: 190x98 mm
Einbautiefe: 52 mm
Temperaturbereich: -10°C - 40°C
Lichtaustritt: direkt
Maße: 203x111x54 mm
Montageart: Einbau (Decke)
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 300 g
Garantie: 2 Jahre
