Plaja Modul 9W-830/840lm
Order number: LG20536
Prices are only visible after login.
Last Stock
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG20536
- Luminous Flux: 840 lm
- Power Draw: 9 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 220-240V, 50/60Hz
- Color Rendering Index (CRI): ≥83 Ra
- IP Code: 20
- Beam Angle: 36°
- LED-Chip: Cree COB
- Housing Color: black

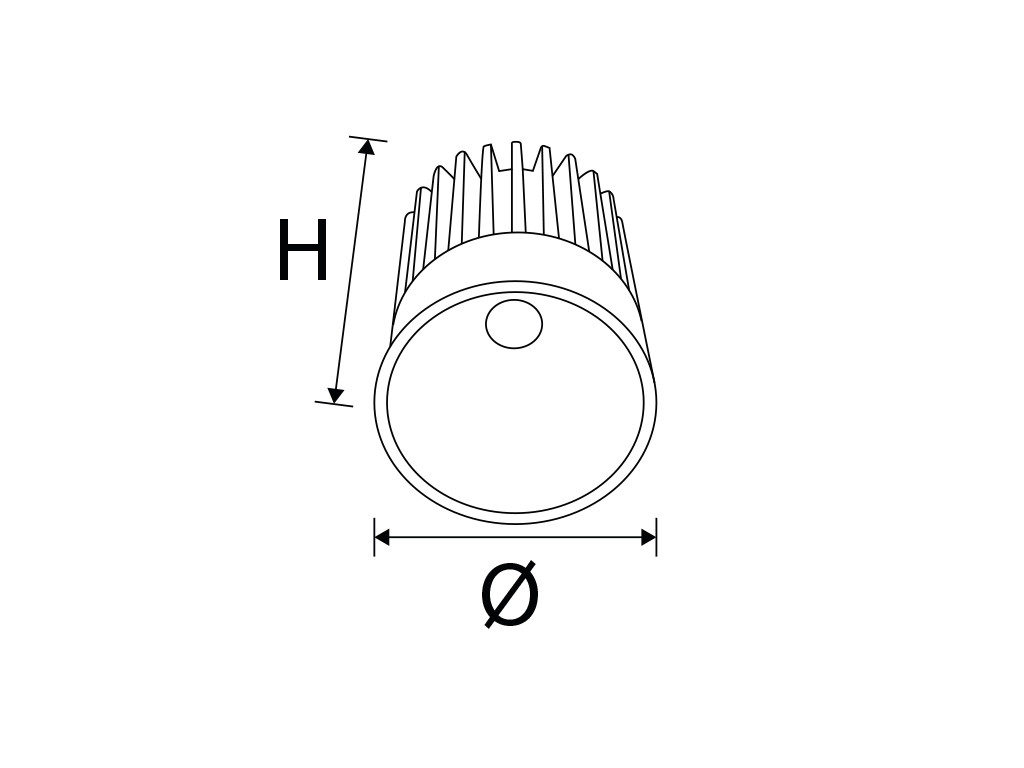

- Dimensions: 59x71 mm
- Warranty: 3 years
Plaja With the Plaja downlight series Litegear® has created a... more
Product information "Plaja Modul 9W-830/840lm"
Plaja
With the Plaja downlight series Litegear® has created a flexible, modular and usefull LED based downlight for lighting designers. Different LED modules can be mixed and combined with a wide variety of downlight frames.
The LED modules are available in different light colours and optics. The frames are available in white and black housing color. Within seconds the modul can be attached on the suitable frame.
This wide variety makes Plaja usefull for different applications like: restaurant, hotel, shop or residential lighting. A strong, unique tool for creative lighting designers.
suitable light sources: Plaja LED module or GU10 PAR16
Related links to "Plaja Modul 9W-830/840lm"
Technical Details:
| Luminous Flux: | 840 lm |
| LED Output: | 9 W |
| Light Yield: | 93 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥83 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 36 ° |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Cree |
| LED-Chip: | COB |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220-240V, 50/60Hz |
| Power Consumption: | 9 W |
| Driver Manufacturer: | Philips |
| Power Factor (PF): | >0.57 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 32-40V, 200mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >50.000 |
| Ambient Temperature (TA): | -10°C - 40°C |
| Dimensions: | 59x71 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | black |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Net Weight: | 156 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 85X65X65 |
| Weight incl. Packaging: | 0.175 kg |
| Content Master Package: | 100 |
| Dimensions of Master Package: | 345x345x360 mm |
| Weight Master Package: | 6,5 kg |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Operating Hours: | >30.000 h L70/B50 |
| Disposal Obligation: |  |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,LM80 |
| Barcode: | 4250557812182 |
Rundes oder quadratisches komplett modulares LED-Einbaudownlight mit zahlreichen... more
Rundes oder quadratisches komplett modulares LED-Einbaudownlight mit zahlreichen Kombinationsmöglichkeiten und wählbaren Einbaurahmen
Vorschaltgerät: nicht enthalten
Temperaturbereich: -10°C - 40°C
Lichtstrom: 840 lm
LED-Leistung: 9 W
Leuchten-Lichtausbeute: 93 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >83
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 36°
Lichtaustritt: direkt
Maße: 59x71 mm
Montageart: Einbau (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 156 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 30000 h
Vorschaltgerät: nicht enthalten
Temperaturbereich: -10°C - 40°C
Lichtstrom: 840 lm
LED-Leistung: 9 W
Leuchten-Lichtausbeute: 93 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >83
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 36°
Lichtaustritt: direkt
Maße: 59x71 mm
Montageart: Einbau (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Nettogewicht: 156 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L70/B50): 30000 h
