RENOVIA 127/36-40-830-4800LM BAP, PMMA

LG59085
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG59085
  • Luminous Flux: 4800 lm
  • Power Draw: 40 W
  • Light Color: warmwhite (3000 K)
  • Input Current: AC 220-240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 40
  • Beam Angle: 90°
  • LED-Chip: SMD
  • Housing Color: white
  • Dimensions: 1270x360x55 mm
  • Warranty: 5 years

Luminous Flux

4800
lm

Power Draw

40 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 40

Beam Angle

90°

ceiling, wall

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1270x360x55

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Surface mounting renovation luminaire   Renovia serves as a replacement for... more
Product information "RENOVIA 127/36-40-830-4800LM BAP, PMMA"
Surface mounting renovation luminaire

Renovia serves as a replacement for traditional surface mounted louver luminaires with fluorescent tubes. The larger housing can easily cover dirty edges outside the old luminaire housing, so no need for a complete ceiling coating.

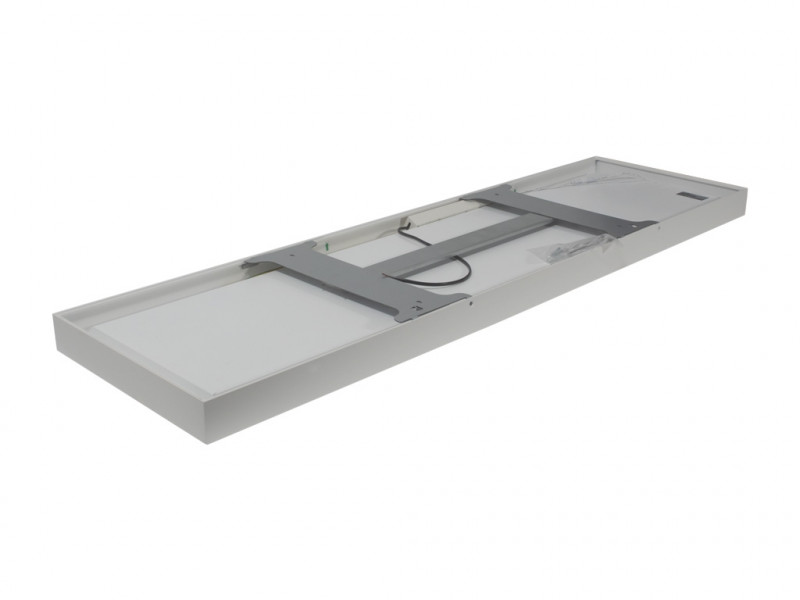

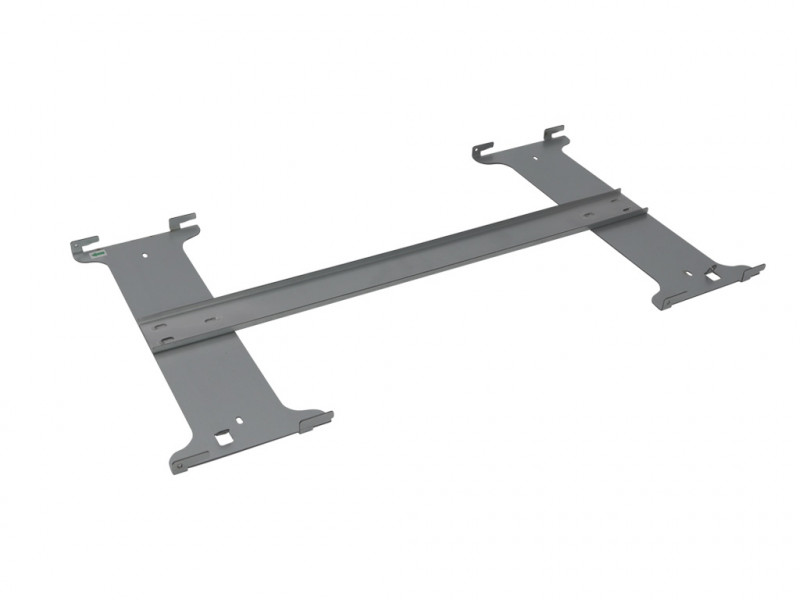

Easy installation due to separate ceiling mount plate with electronic ballast and terminal. The LED light is simply hung in the holder, easy for service! Uniform, wide light distribution with low glare due to microprismatics optical material. Optical part made of UV and temperature-resistant polymethyl methacrylate (PMMA). Eye-friendly, flicker-free LED light. Long life electronic driver > 50,000 hours.

Optionally available in dimmable version: Dali, Push-Dim, 1-10V, Radio, Zigbee
Available in 3 different sizes and power ranges.

Applications:

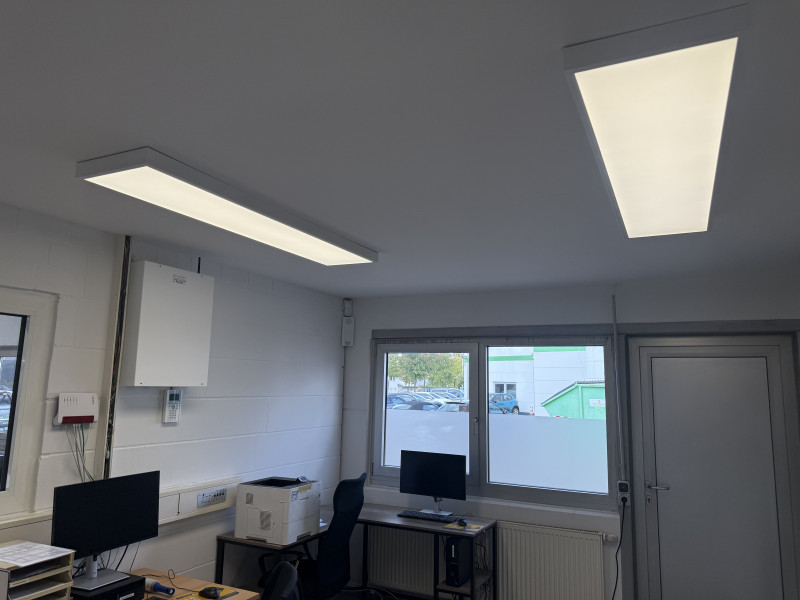

  • Office, conference room, computer workstation BAP UGR <19
  • laboratory, hospital, fitness center
  • hall and reception
  • Sanitary facilities and corridoors
Related links to "RENOVIA 127/36-40-830-4800LM BAP, PMMA"
Technical Details:

Luminous Flux: 4800 lm
LED Output: 39 W
Light Yield: 120 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <3
Beam Angle: 90 °
Unified Glare Rating (UGR): 19
Light Emission: downward
LED-Chip: SMD
Number of LED: 80
Ignition Time: <0,5 s
Input Current: AC 220-240V, 50/60Hz
Power Consumption: 40 W
Contains Driver: ja
Driver Manufacturer: AGT
Power Factor (PF): >0.95
Input Driver: terminal
Output of Driver: DC 32-42V, 850-1050mA
CC/CV: CC
Input Lamp: plug connector
Switching Cycles: >100.000
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 40°C
Storage Temperature: -20°C - 50°C
Dimensions: 1270x360x55 mm
Mounting: ceiling,wall
Montageart: surface mounted
IP Class: 40
IK Code: 03
Housing Color white
Housing Color (RAL Code): similar 9016
Housing Material: aluminum
Coating: powder-coated
Special Feature of Housing: zweiget. Anbaugehäuse
Cover: Mikroprismatisch PMMA
Net Weight: 5500 g
Type of Packaging: box
Weight incl. Packaging: 5.49 kg
Content Master Package: 4
Dimensions of Master Package: 1330x375x420 mm
Weight Master Package: 23,78 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >50.000 h L80/B10
Disposal Obligation: ja
Customs Tariff Number: 9405119090
Certifications CE,D
Barcode: 4250557823324
Power Select: 36-40W / 850, 950, 1050mA
PMMA Lightguideplate, anti yellow
blendfrei: Bildschirmarbeitsplatztauglich
Flickerfree
