Preview: KITALPHA HighBay 80-830/840-11200LM GEG

Product Info (PDF)

Order number: LG13300

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG13300
Luminous Flux: 11200 lm
Power Draw: Power Select (25, 40, 60, 80 W)
Light Color: dualwhite (3000/4000 K)
Input Current: AC 100-277V, 50/60Hz, DC 180-260V
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20

Beam Angle: 90°
LED-Chip: SMD 2835
Housing Color: grey
Dimensions: 230x290 mm
Warranty: 5 years

Luminous Flux

11200
lm

Power Draw

80 W

Light Color

3000/4000 K
dualwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

90°

mounting type

Light Direction

Dimensions

(ØxH) in mm
230x290

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Kitalpha Highbay - Efficient, Durable, and Versatile The Kitalpha... more

Close menu

Product information "KITALPHA HighBay 80-830/840-11200LM GEG"

Kitalpha Highbay - Efficient, Durable, and Versatile

The Kitalpha Highbay stands out for its high energy efficiency, flexible control options, and long-lasting quality. With a luminous efficacy of 140 lm/W and a total luminous flux of up to 11,200 lumens, it provides powerful and uniform illumination - ideal for retail areas, exhibitions, showrooms, as well as commercial and industrial environments.

Thanks to the dual white function (3000 K / 4000 K), the color temperature can be individually adjusted, while the 1-10 V dimming allows smooth brightness control. The Power-Select function enables easy adjustment of the power level between 25 W, 40 W, 60 W, and 80 W - ensuring maximum flexibility and energy savings.

Key Benefits

High luminous efficacy: 140 lm/W with up to 11,200 lumens
Dual white (3000 / 4000 K) with CRI ≥ 80 for natural color rendering
Dimmable via 1-10 V interface
Power-Select function: selectable output 25 / 40 / 60 / 80 W
Durable and robust: aluminum housing, protection class IP20, impact resistance IK06
Height incl. refractor: 460mm
Includes Lifud driver with high power factor > 0.96

Typical Applications

Retail areas and shops, Exhibitions and showrooms, Reception and presentation spaces, Commercial and industrial facilities

Related links to "KITALPHA HighBay 80-830/840-11200LM GEG"

Zurück

Technical Details:

Luminous Flux:	11200 lm
Light Yield:	140 lm/W
Light Temperature:	3000/4000 K
Light Color:	dualwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<5
Beam Angle:	90 °
Unified Glare Rating (UGR):	19
Light Emission:	downward
Dimmable:
Method of Dimming:	1-10V
LED-Chip:	SMD 2835
Number of LED:	364
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

Input Current:	AC 100-277V, 50/60Hz, DC 180-260V
Power Consumption:	Power Select (25, 40, 60, 80 W)
Contains Driver:
Driver Manufacturer:	Lifud
Power Factor (PF):	>0.96
Input Driver:	cable with flying leads
Output of Driver:	DC 245V, 300mA
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	terminal
Switching Cycles:	>100.000
Electrical Protection Class:	I
Ambient Temperature (TA):	-30°C - 45°C

Dimensions:	230x290 mm
Mounting:	Decke
Montageart:	surface mounted
IP Class:	20
IK Code:	06
Housing Color	grey
Housing Material:	aluminum
Coating:	powder-coated
Cover:	Lens
Net Weight:	1542 g

Type of Packaging:	box
Dimensions of Packaging:	350x270x270
Weight incl. Packaging:	2.028 kg
Content Master Package:	1
Dimensions of Master Package:	350x270x270 mm
Weight Master Package:	2,028 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B10
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,LM80
Barcode:	4250557826134

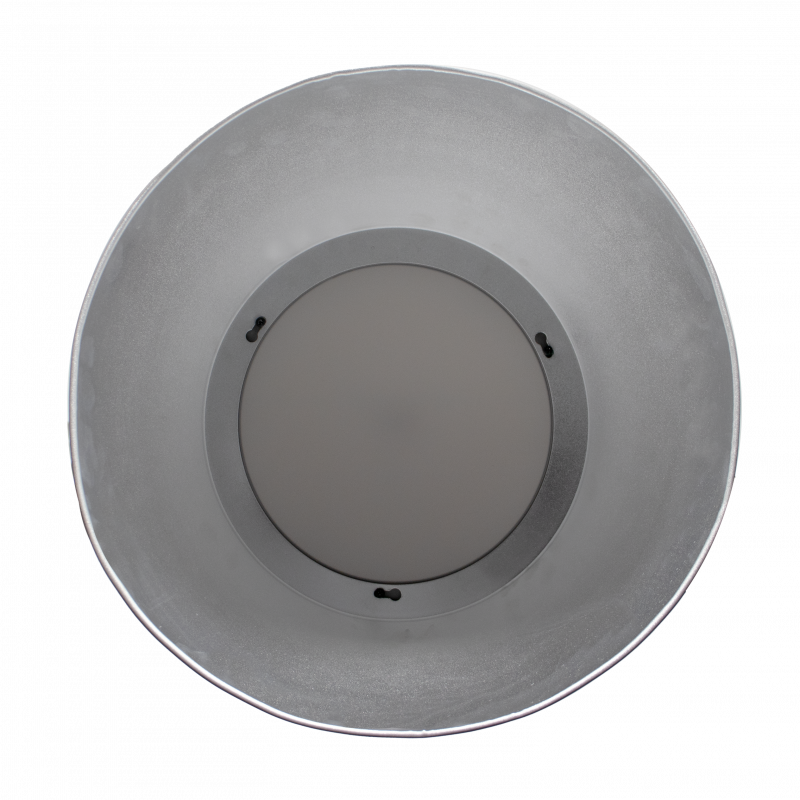

ohne Reflektor
without reflector
0-10V dimmable, Dali via oiptional Adapter
Power select: 25-80W
CCT select: 3000, 4000K

Technical Data Sheet (PDF)
