Phirna HighBay 150-850-21000LM

LG13292
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG13292
  • Luminous Flux: 21000 lm
  • Power Draw: 150 W
  • Light Color: daylight (5000 K)
  • Input Current: AC 220-240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 65
  • Beam Angle: 110°
  • LED-Chip: Everlight SMD 2835
  • Housing Color: white
  • Dimensions: 560x147,1 mm
  • Warranty: 3 years

Luminous Flux

21000
lm

Power Draw

150 W

Light Color

5000 K
daylight

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 65

Beam Angle

110°

mounting type

Light Direction

Dimensions

(ØxH) in mm
560x147,1

Warranty

3 years

LED Highbay   Litegear® Phirna LED-highbay is made of high-quality aluminum... more
Product information "Phirna HighBay 150-850-21000LM"
LED Highbay

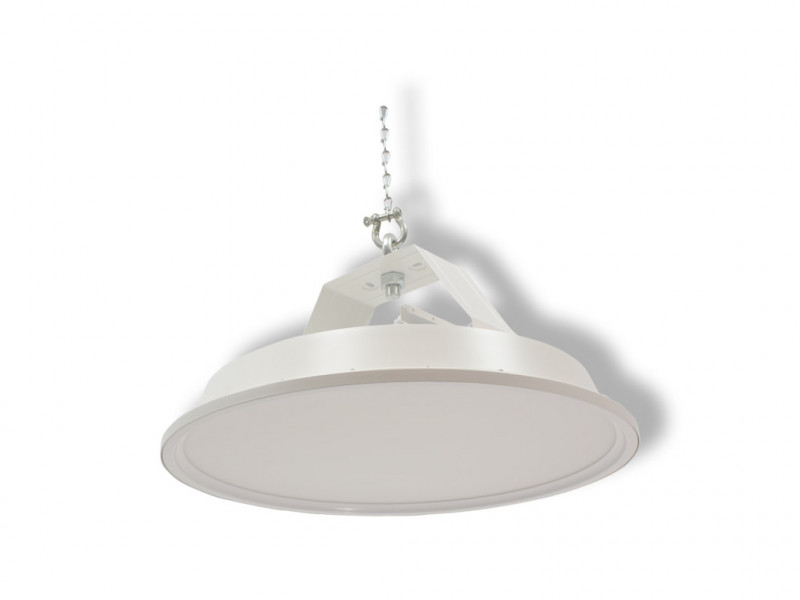

Litegear® Phirna LED-highbay is made of high-quality aluminum and with an optical, opal PC cover underneath the LED light sources. Phirna convinces with a very good system efficiency of up to 150 lumen / watt. With over 22,000 lumens of total luminous flux, this Litegear highbay luminaire is at a similar level to other LED spotlights with 180-200 watt power consumption. Thanks to its IP65 design, the LED light can also be used outdoors or in halls with high dust levels. Phirna is also ideal as a sports hall lamp. The flicker-free, emissive light protects the eyes and the broad beam angle produces a large, homogeneous illumination. Optionally, the lamp can also be equipped with dimmable LED drivers. The light color is similar to the daylight. This hall floodlight can be suspended by means of steel cables or chains or screwed directly to ceilings.

Comparability with discharge lamps:

150W Phirna LED equals: 400W HQL

advantages:
  • very low weight
  • optimum heat dissipation through large-surface aluminum housing
  • weatherproof: IP65-IK08 suitable for outdoor use
  • High system efficiency: up to 150lm / W
  • long life: up to 50,000 hours L80B10
  • optional extensive accessories

Applications:
Industry, sports halls, retail space, exhibition, showroom, warehouses, loading areas and canopies

You can connect up to 9 pcs. Phirna highbay on a 10A C circuit breaker or 15 pcs. on a 16A C circuit breaker.
Related links to "Phirna HighBay 150-850-21000LM"
Technical Details:

Luminous Flux: 21000 lm
LED Output: 150 W
Light Yield: 140 lm/W
Light Temperature: 5000 K
Light Color: daylight
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <6
Beam Angle: 110 °
Light Emission: downward
Dimmable: ja
Method of Dimming: 1-10V,PWM
LED-Chip Manufacturer: Everlight
LED-Chip: SMD 2835
Number of LED: 648
Ignition Time: <0,5 s
Input Current: AC 220-240V, 50/60Hz
Power Consumption: 150 W
Contains Driver: ja
Power Factor (PF): >0.9
Input Driver: cable with flying leads
Output of Driver: DC 305-365V, 480mA
CC/CV: CC
Input Lamp: cable with flying leads
Switching Cycles: >50.000
Electrical Protection Class: II
Dimensions: 560x147,1 mm
Mounting: Decke
Montageart: surface mounted
IP Class: 65
IK Code: 08
Housing Color white
Housing Material: aluminum
Coating: lacquered
Special Feature of Housing: ALU + PC
Cover: opal
Net Weight: 4206 g
Type of Packaging: box
Dimensions of Packaging: 720x170x725
Weight incl. Packaging: 5.394 kg
Content Master Package: 1
Dimensions of Master Package: 720x170x725 mm
Weight Master Package: 5,56 kg
Product Line: Advance Line
Warranty 3 years
Operating Hours: >35.000 h L70/B10
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,RoHS,LM80,EMC,LVD,D
Barcode: 4250557812113
High Efficency
Perfect for Sports like Tennis
Flickerfree
