Phirna HighBay Bügel mit Ringöse für Ketten-/Seilabhängung

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG13294
  • Housing Color: white
  • Warranty: 3 years

mounting type

Light Direction


3 years

Suspension bracket with eye bolt for Phirna LED Highbay   Accessorie for... more
Product information "Phirna HighBay Bügel mit Ringöse für Ketten-/Seilabhängung"

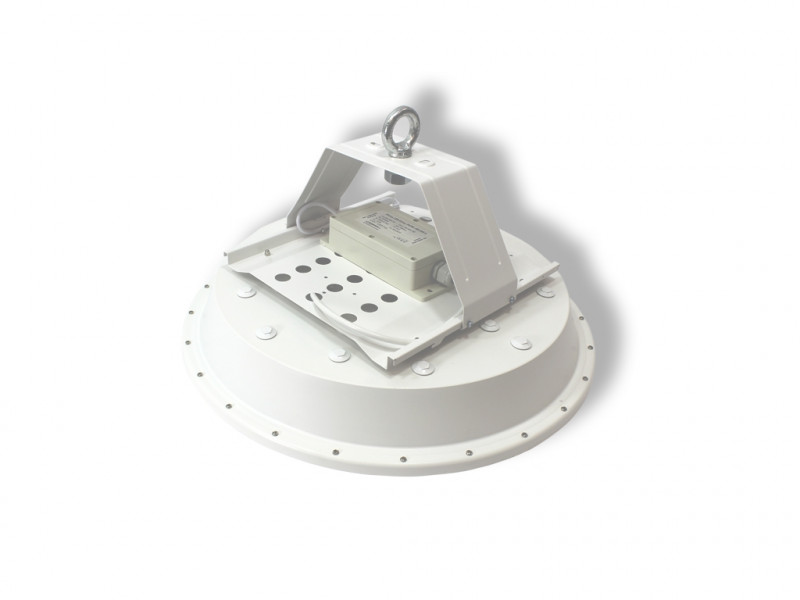

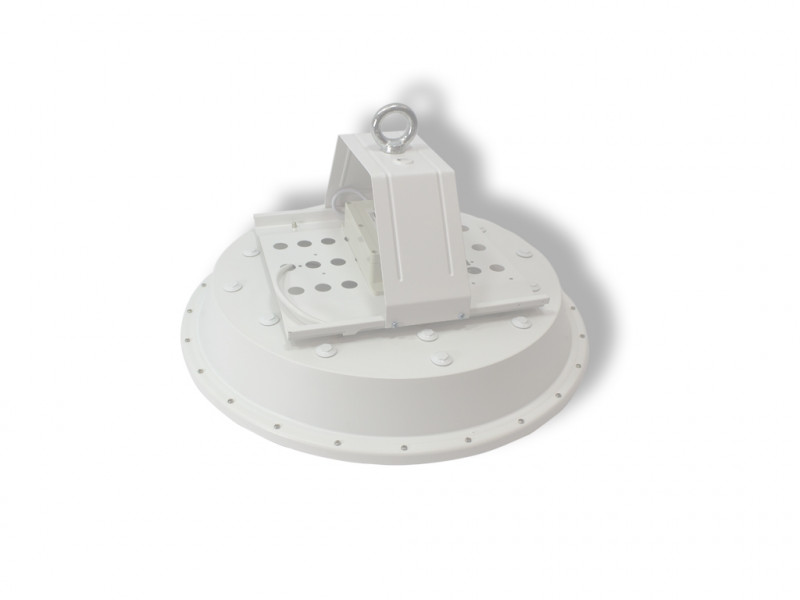

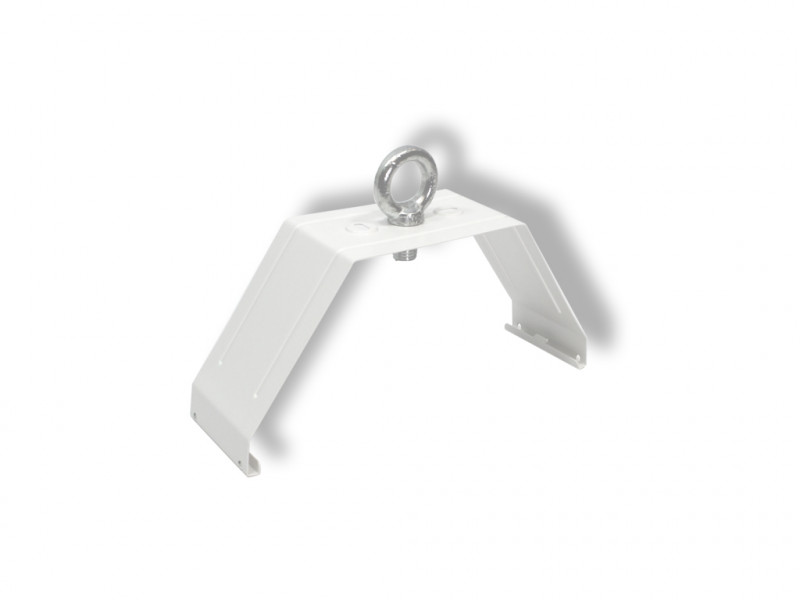

Suspension bracket with eye bolt for Phirna LED Highbay

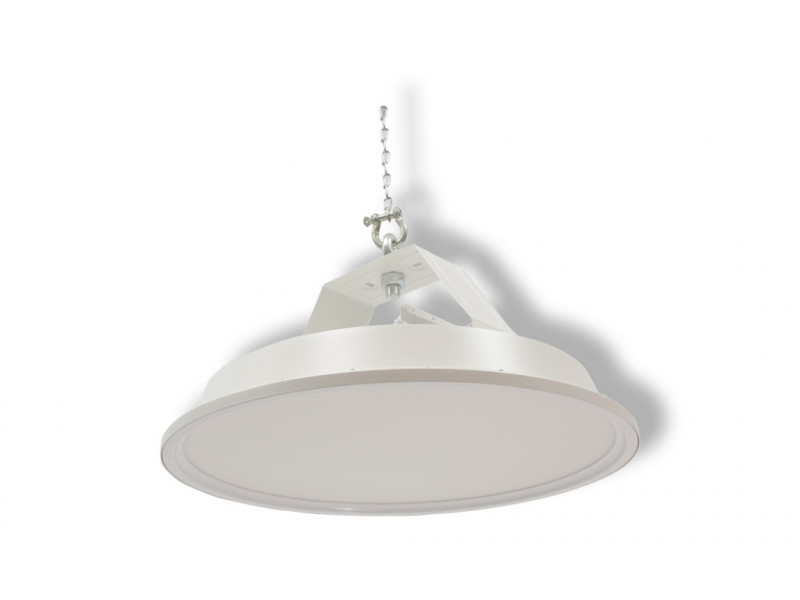

Accessorie for Litegear® Phirna LED-highbay is made of high-quality aluminum and with an optical, opal PC cover underneath the LED light sources. Phirna convinces with a very good system efficiency of up to 150 lumen / watt. With over 22,000 lumens of total luminous flux, this Litegear highbay luminaire is at a similar level to other LED spotlights with 180-200 watt power consumption. Thanks to its IP65 design, the LED light can also be used outdoors or in halls with high dust levels. Phirna is also ideal as a sports hall lamp. The flicker-free, emissive light protects the eyes and the broad beam angle produces a large, homogeneous illumination. Optionally, the lamp can also be equipped with dimmable LED drivers. The light color is similar to the daylight. This hall floodlight can be suspended by means of steel cables or chains or screwed directly to ceilings.
Comparability with discharge lamps:
150W Phirna LED equals: 400W HQL
  • very low weight
  • optimum heat dissipation through large-surface aluminum housing
  • weatherproof: IP65-IK08 suitable for outdoor use
  • High system efficiency: up to 150lm / W
  • long life: up to 50,000 hours L80B10
  • optional extensive accessories
Industry, sports halls, retail space, exhibition, showroom, warehouses, loading areas and canopies
You can connect up to 9 pcs. Phirna highbay on a 10A C circuit breaker or 15 pcs. on a 16A C circuit breaker.
Related links to "Phirna HighBay Bügel mit Ringöse für Ketten-/Seilabhängung"
Technical Details:
Light Emission: downward
Dimmable: ja
Method of Dimming: 1-10V,PWM
Input Driver: cable with flying leads
Electrical Protection Class: II
Ambient Temperature (TA): -20°C - 50°C
Mounting: Decke
Montageart: surface mounted
Housing Color white
Housing Material: aluminum
Coating: lacquered
Special Feature of Housing: ALU + PC
Cover: opal
Net Weight: 685 g
Type of Packaging: none
Weight incl. Packaging: 0.685 kg
Content Master Package: 30
Dimensions of Master Package: 515x375x345 mm
Weight Master Package: 20,62 kg
Product Line: Advance Line
Warranty 3 years
Disposal Obligation: ja
Customs Tariff Number: 8308100090
Certifications CE,LM80,D
Barcode: 4250557812090
