SATURNA HighBay 150-240-850-44400LM 185lm/W DIM 0-10V
Order number: LG13265
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
- Order number: : LG13265
- Luminous Flux: 44400 lm
- Power Draw: Power Select (150, 200, 240 W)
- Input Current: AC 90-305V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 65
- Beam Angle: 90°
- LED-Chip: Liteon SMD 5050
- Housing Color: black
- Dimensions: 320x120 mm
- Warranty: 5 years
LED Highbay Litegear® Saturna LED Highbay made of durable and lightweight... more
Product information "SATURNA HighBay 150-240-850-44400LM 185lm/W DIM 0-10V"
LED Highbay

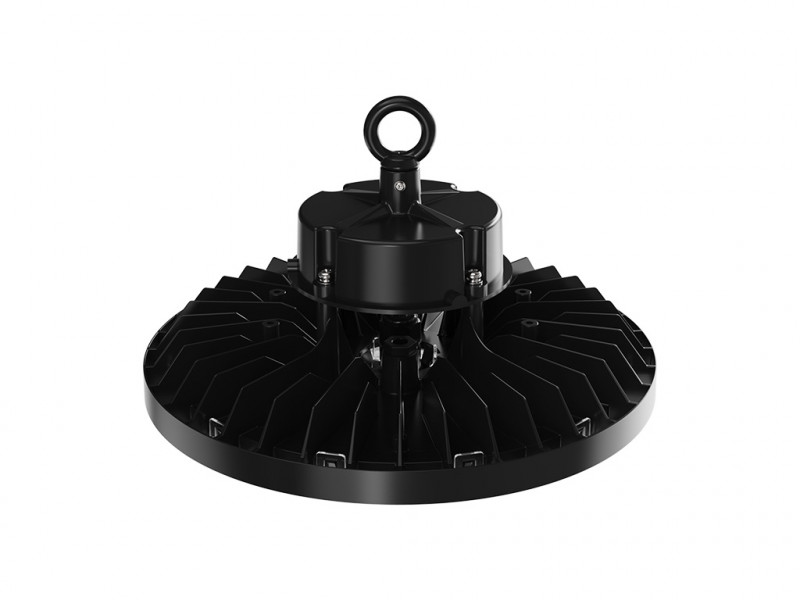

Litegear® Saturna LED Highbay made of durable and lightweight alluminum. Perfect heat dissipation through large, vertical cooling fins with low dirt deposition to optimise the heat dissipation. LED board with high quality SMD5050 LED chips from Liteon. The ballast and the LED board are protected against dust and moisture according to the IP65 directive. Light chamber with impact-resistant protective glass according to IK08 specification.
The beam angle is 90 ° with a added lenscover. However, this can be adapted by means of a lens or reflector to the requirements of the user.
High-quality components promise a long, lifespan of up to 100,000 operating hours L70 / B50 for the LED chips. High system efficiency of up to 185 lumens / watt guarantees high efficiency with low maintenance costs and fast amortization when you replace old discharge Highbays with our Saturna LED light.

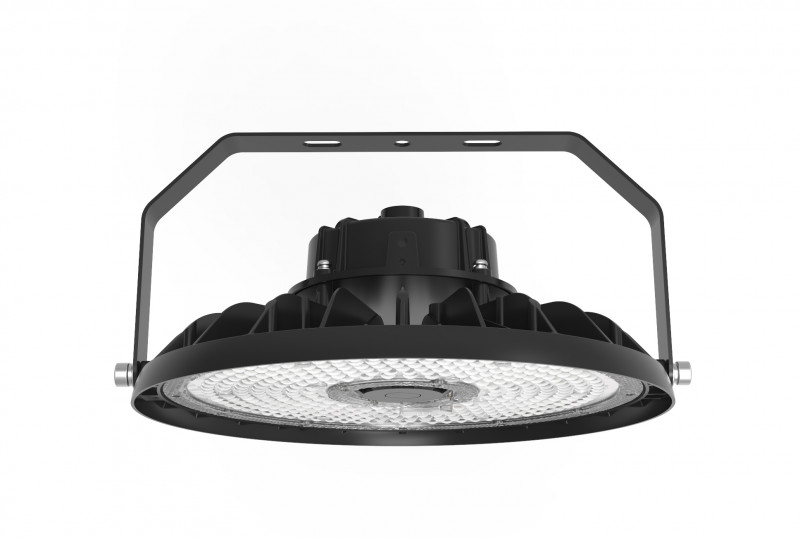

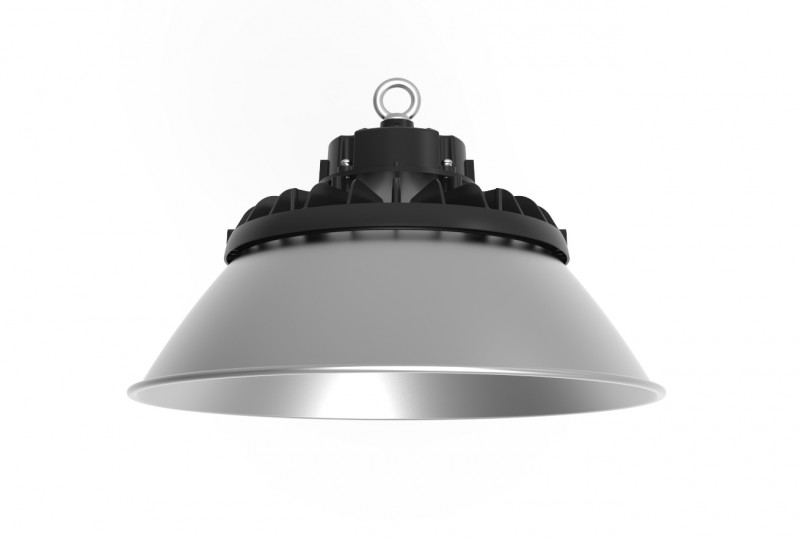

The luminaire can be attached to steel cables or chains by means of a ring eyebolt. Optionally, we also offer a mounting bracket for attachment to concrete ceilings or walls. As an accessory, we offer a comprehensive range of suitable sensors, reflectors, lenses, ball guards and dust covers.
LED driver with Aux output: DC12V, 50mA and 0-10V dimming option can be used for sensor
Comparability with discharge lamps:
- 100W Osira LED equals 250W HQI
- 150W Osira LED equals: 400W HQL
- 200W Osira LED corresponds to 400 / 500W HQI
- 160-170lm/W system efficiency
Applications:
Industry, sports halls, retail space, exhibition, showroom, warehouses, loading areas and canopies
Related links to "SATURNA HighBay 150-240-850-44400LM 185lm/W DIM 0-10V"
Technical Details:
| Luminous Flux: | 44400 lm |
| Light Yield: | 185 lm/W |
| Light Temperature: | 5000 K |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 25 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | 1-10V,PWM |
| LED-Chip Manufacturer: | Liteon |
| LED-Chip: | SMD 5050 |
| Number of LED: | 306 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 90-305V, 50/60Hz |
| Power Consumption: | Power Select (150, 200, 240 W) |
| Contains Driver: | |
| Driver Manufacturer: | Sosen |
| Power Factor (PF): | >0.95 |
| Input Driver: | cable with flying leads |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -40°C - 50°C |
| Storage Temperature: | -40°C - 70°C |
| Dimensions: | 320x120 mm |
| Mounting: | Decke |
| Montageart: | surface mounted |
| IP Class: | 65 |
| IK Code: | 08 |
| Housing Color | black |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Cover: | Lens |
| Net Weight: | 2600 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 4.1 kg |
| Content Master Package: | 1 |
| Dimensions of Master Package: | 375x375x200 mm |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >100.000 h L70/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,LM80,D |
| Barcode: | 4250557823997 |
| Alugehäuse mit hoher Wärmeleitfähigkeit | |
| TGIC Beschichtung/Coating | |
| UGR <19 mit 60° Linse | |
| 1-10V Dim und 12V DC Ausgang für Sensor | |
| vorbereitet für Radar Sensor | |
