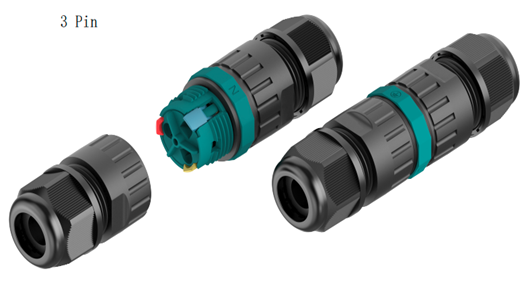

IP68 Terminalconnector 3 pin medium für 3 x 0,75-2,5mm²
Order number: LG13277
Available soon
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays

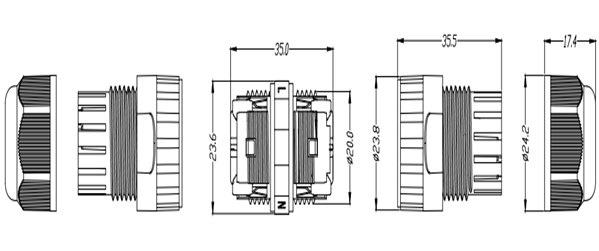

Dimensions
Short information
- Order number: : LG13277
- IP Code: 68
- Housing Color: black
- Dimensions: 24,2x87,7 mm
- Warranty: 2 years
IP Code
IP 68
Dimensions
(ØxH) in mm
24,2x87,7
Warranty
2 years
IP68 weatherproof terminal box 3-pin for easy connection of signal cables and... more
Product information "IP68 Terminalconnector 3 pin medium für 3 x 0,75-2,5mm²"
- IP68 weatherproof terminal box 3-pin for easy connection of signal cables and supply lines
Related links to "IP68 Terminalconnector 3 pin medium für 3 x 0,75-2,5mm²"
Technical Details:
| Input Lamp: | Terminal |
| Ambient Temperature (TA): | -20°C - 55°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 24,2x87,7 mm |
| IP Class: | 68 |
| IK Code: | 08 |
| Housing Color | black |
| Housing Material: | plastic |
| Special Feature of Housing: | Schraubverbinder 3-pol. |
| Net Weight: | 26.5 g |
| Weight incl. Packaging: | 0.027 kg |
| Product Line: | Advance Line |
| Warranty | 2 years |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE |
| 3 pol. IP68 Schraubverbinder | |
| 3 pin. IP68 terminal connector | |
