Catena COB FlexStrip 14,4W/m

LG54185
Preise sind erst nach der Anmeldung sichtbar.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG54185
  • Luminous Flux: 6250 lm
  • Power Draw: 72 W
  • Light Color: warmwhite (2700 K)
  • Input Current: DC 24V
  • Color Rendering Index (CRI): ≥90 Ra
  • IP Code: 20
  • Beam Angle: 170°
  • LED-Chip: COB
  • Housing Color: white
  • Dimensions: 5000x8x2,1 mm
  • Warranty: 3 years

Luminous Flux

6250
lm

Power Draw

72 W

Light Color

2700 K
warmwhite

Color Rendering Index (CRI)

CRI
>90 Ra

IP Code

IP 20

Beam Angle

170°

Dimensions

(LxBxH) in mm
5000x8x2,1

Warranty

3 years

LED Flexstrip Flexible high performance LED Strip on reel from Litegear® with... more
Product information "Catena COB FlexStrip 14,4W/m"
LED Flexstrip
Flexible high performance LED Strip on reel from Litegear® with internal constant current regulation by special IC. Easy installation with doubleside adhessiv tape. High brightness performance with SMD Chips. Real color rendering index specially required for fashion and food. LED don´t emmit no UV or IR light band, hence no influence on colors, textiles and fresh food. Catena Premio strips can be cut individually on each cutting marked symboled with a scissor. To drive the strip you need a external power supply. Automatic thermosensing will reduce the current when the strip becomes to hot. Because of very high light output and bigger heat emmission always use aluminum profiles for better heat dissipation to extend lifespan. You can find different suitable profiles in oure range. Our technical sales team will support you and recommend the perfect profiles for your application. Catena Premio strips are available in different power and CCT color. For outdoor use or in dusty invironment we have special versions with high IP protection.
Features:
  • SMD LED Flexible Strip is totally and genuinely flexible strip light. It can be used as edge-lighting of transparent or diffused materials, illuminated signs and path/contour marking.
  • SMD Flex makes it possible to use LED lighting in places that could not be reached before. Curves, cone and round objects can now be furnished with LED lighting.
  • long lifetime
Scope:
  • for indoor decoration, Bar, KTV, Hotel, stage
  • Backlight or edge lighting for signage
  • Path and contour marking
  • Marine light, Task lighting
  • replacement of fluorescent light
  • decorative lights for holiday, event, show, exhibition
  • Architectural lights for canopy, corridor, window, archway
DIY lights for home use
Related links to "Catena COB FlexStrip 14,4W/m"
Technical Details:

Luminous Flux per Meter: 1250 lm
Output per Meter: 14.4 W
Luminous Flux: 6250 lm
LED Output: 52 W
Light Yield: 87 lm/W
Light Temperature: 2700 K
Light Color: warmwhite

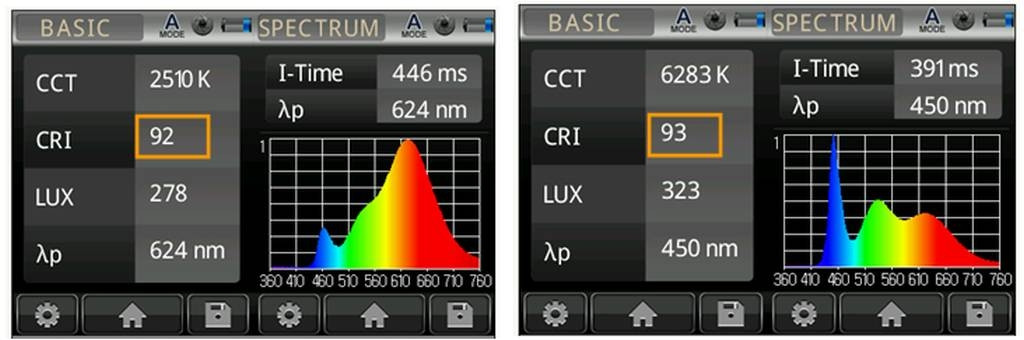

Color Rendering Index: ≥90 Ra
Color Consistency (SDCM): <4
Beam Angle: 170 °
LED-Chip: COB
LED per Meter: 528
Cut After: 45.45 mm
Number of LED: 2640
Ignition Time: <1 s
Input Current: DC 24V
Power Consumption: 72 W
Output of Driver: DC 24V
CC/CV: CV
Input Lamp: cable with flying leads
Ambient Temperature (TA): -20°C - 45°C
Storage Temperature: -20°C - 50°C
Dimensions: 5000x8x2,1 mm
IP Class: 20
Housing Color white
Net Weight: 70 g
Type of Packaging: bag
Dimensions of Packaging: 210x230x10
Product Line: Advance Line
Warranty 3 years
Operating Hours: >50.000 h L70/B50
Disposal Obligation: ja
Customs Tariff Number: 9405409990
Certifications CE,RoHS,EMC,LVD
Barcode: 4250557819464
keine sichtbaren LED Punkte dank COB Technology
no visible LED dots due to COB technology
nur in Verwendung mit geeignetem Aluprofil
use only with suitable alu profile
3M tape 300LSE, High CRI >90
