Product Info (PDF)

Order number: LG54187

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

X Product information sheet (PDF)

Product information sheet

Dimensions

Menü schließen

Order number: : LG54187
Luminous Flux: 7000 lm
Power Draw: 72 W
Light Color: neutralwhite (4000 K)
Input Current: DC 24V
Color Rendering Index (CRI): ≥90 Ra
IP Code: 20

LED-Chip: COB
Housing Color: white
Dimensions: 5000x8x2,1 mm
Warranty: 3 years

Luminous Flux

7000
lm

Power Draw

72 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>90 Ra

IP Code

IP 20

Dimensions

(LxBxH) in mm
5000x8x2,1

Warranty

3 years

LED Flexstrip Flexible high performance LED Strip on reel from Litegear®... more

Close menu

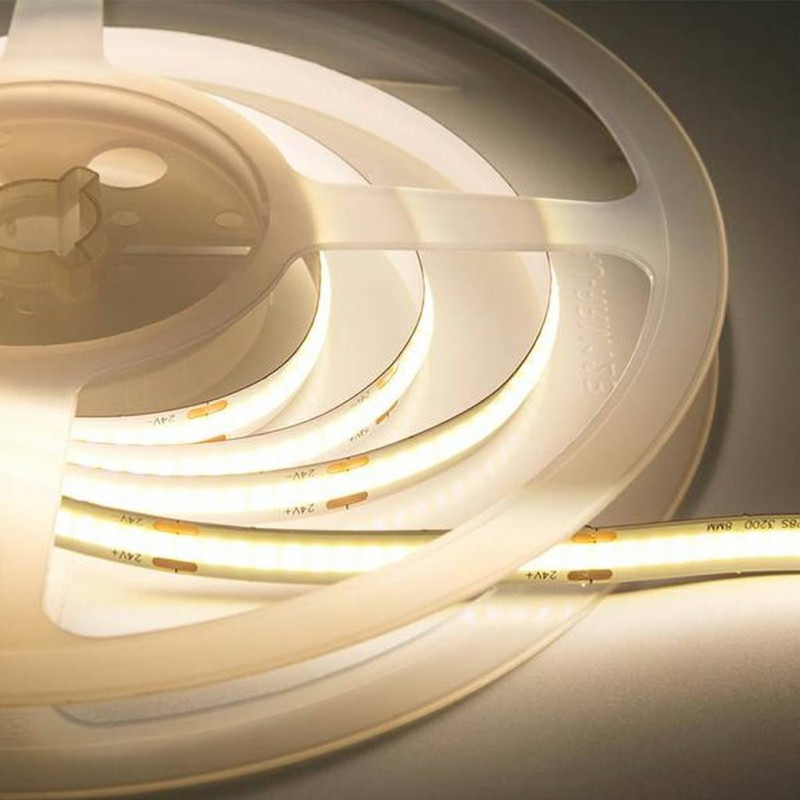

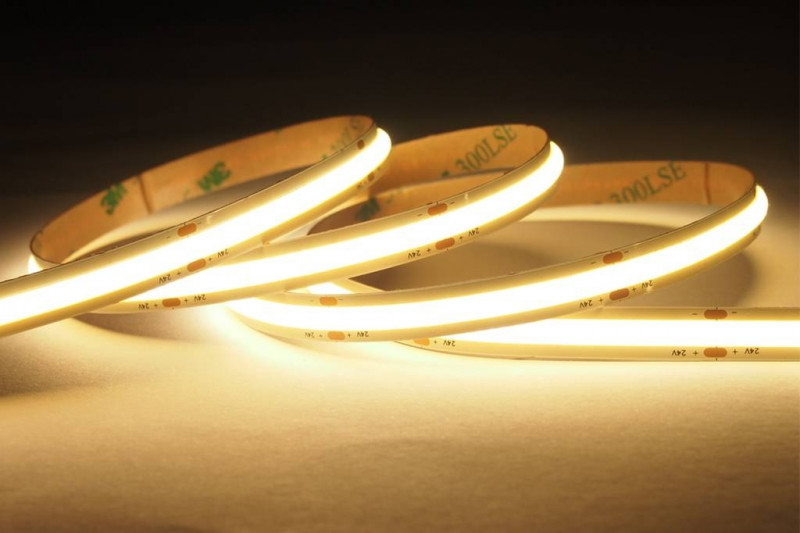

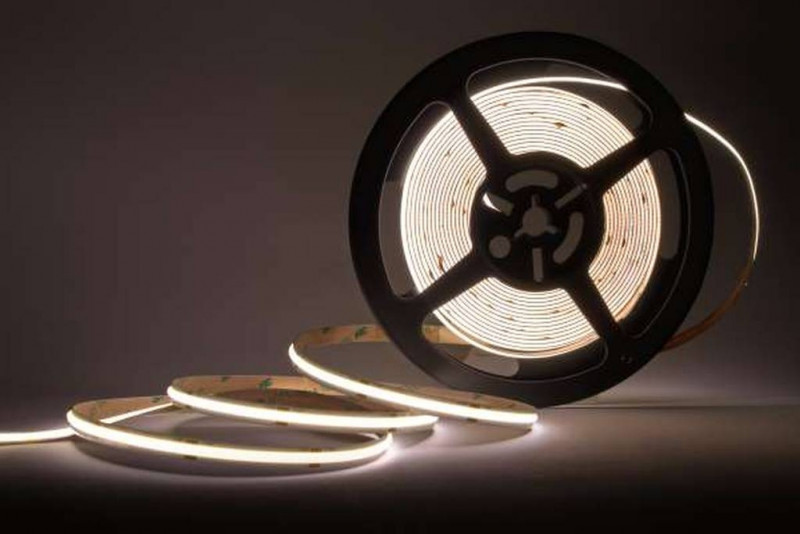

Product information "Catena COB FlexStrip 14W/m"

LED Flexstrip

Flexible high performance LED Strip on reel from Litegear® with internal constant current regulation by special IC. Easy installation with doubleside adhessiv tape. High brightness performance with SMD Chips. Real color rendering index specially required for fashion and food. LED don´t emmit no UV or IR light band, hence no influence on colors, textiles and fresh food. Catena Premio strips can be cut individually on each cutting marked symboled with a scissor. To drive the strip you need a external power supply. Automatic thermosensing will reduce the current when the strip becomes to hot. Because of very high light output and bigger heat emmission always use aluminum profiles for better heat dissipation to extend lifespan. You can find different suitable profiles in oure range. Our technical sales team will support you and recommend the perfect profiles for your application. Catena Premio strips are available in different power and CCT color. For outdoor use or in dusty invironment we have special versions with high IP protection.

Features:

SMD LED Flexible Strip is totally and genuinely flexible strip light. It can be used as edge-lighting of transparent or diffused materials, illuminated signs and path/contour marking.
SMD Flex makes it possible to use LED lighting in places that could not be reached before. Curves, cone and round objects can now be furnished with LED lighting.
long lifetime

Scope:

for indoor decoration, Bar, KTV, Hotel, stage
Backlight or edge lighting for signage
Path and contour marking
Marine light, Task lighting
replacement of fluorescent light
decorative lights for holiday, event, show, exhibition
Architectural lights for canopy, corridor, window, archway

DIY lights for home use

Related links to "Catena COB FlexStrip 14W/m"

Zurück

Technical Details:

Luminous Flux per Meter:	1400 lm
Output per Meter:	14.4 W
Luminous Flux:	7000 lm
LED Output:	52 W
Light Yield:	97 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥90 Ra
Color Consistency (SDCM):	<4
LED-Chip:	COB
LED per Meter:	528
Cut After:	45.45 mm
Number of LED:	2640
Ignition Time:	<1 s

Input Current:	DC 24V
Power Consumption:	72 W
Output of Driver:	DC 24V
CC/CV:	CV
Input Lamp:	cable with flying leads
Input Strip:	Kabel mit offenen Enden - both sides
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-20°C - 50°C

Dimensions:	5000x8x2,1 mm
IP Class:	20
Housing Color	white
Net Weight:	70 g

Type of Packaging:	bag
Dimensions of Packaging:	210x230x10

Product Line:	Advance Line
Warranty	3 years
Operating Hours:	>50.000 h L50/B20
Disposal Obligation:
Customs Tariff Number:	8539510000
Certifications	CE
Barcode:	4250557819471
keine sichtbaren LED Punkte dank COB Technology
no visible LED dots due to COB technology
nur in Verwendung mit geeignetem Aluprofil
use only with suitable alu profile
3M tape 300LSE, High CRI >90
