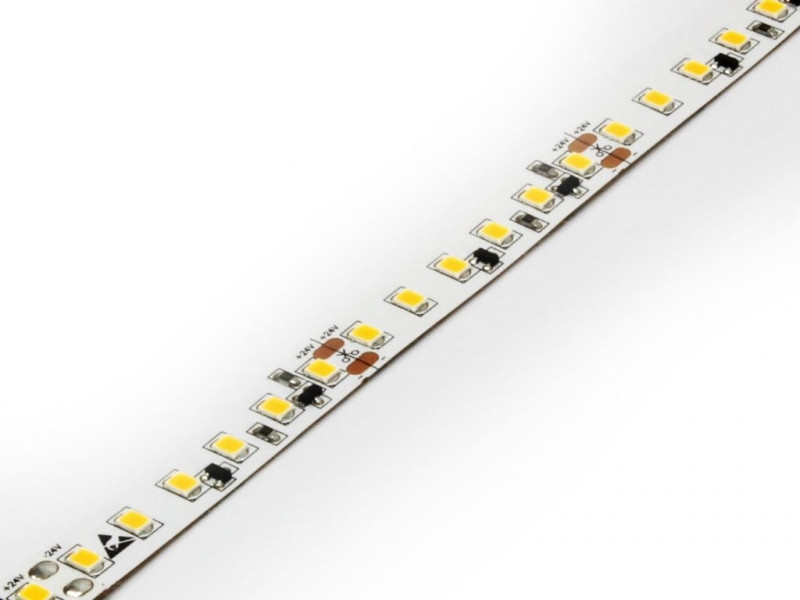

Catena FlexStrip Premio CV 120R, High Efficency 28,8W/m -2650lm/m

LG54130
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Product information sheet
  • LG54130
  • Luminous Flux: 13250 lm
  • Power Draw: 144 W
  • Light Color: warmwhite (3000 K)
  • Input Current: DC 24V
  • Color Rendering Index (CRI): ≥92 Ra
  • IP Code: 20
  • Beam Angle: 120°
  • LED-Chip: SMD 2835
  • Dimensions: 5000x10x1,5 mm
  • Warranty: 3 years

Luminous Flux

13250
lm

Power Draw

144 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>92 Ra

IP Code

IP 20

Beam Angle

120°

Dimensions

(LxBxH) in mm
5000x10x1,5

Warranty

3 years

LED Flexstrip   Flexible high performance LED Strip on reel from Litegear®... more
Product information "Catena FlexStrip Premio CV 120R, High Efficency 28,8W/m -2650lm/m"
LED Flexstrip

Flexible high performance LED Strip on reel from Litegear® with internal constant current regulation by special IC. Easy installation with doubleside adhessiv tape. High brightness performance with SMD Chips. Real color rendering index specially required for fashion and food. LED don´t emmit no UV or IR light band, hence no influence on colors, textiles and fresh food. Catena Premio strips can be cut individually on each cutting marked symboled with a scissor. To drive the strip you need a external power supply. Automatic thermosensing will reduce the current when the strip becomes to hot. Because of very high light output and bigger heat emmission always use aluminum profiles for better heat dissipation to extend lifespan. You can find different suitable profiles in oure range. Our technical sales team will support you and recommend the perfect profiles for your application. Catena Premio strips are available in different power and CCT color. For outdoor use or in dusty invironment we have special versions with high IP protection.

Features:
  • SMD LED Flexible Strip is totally and genuinely flexible strip light. It can be used as edge-lighting of transparent or diffused materials, illuminated signs and path/contour marking.
  • SMD Flex makes it possible to use LED lighting in places that could not be reached before. Curves, cone and round objects can now be furnished with LED lighting.
  • long lifetime

Scope:
  • for indoor decoration, Bar, KTV, Hotel, stage
  • Backlight or edge lighting for signage
  • Path and contour marking
  • Marine light, Task lighting
  • replacement of fluorescent light
  • decorative lights for holiday, event, show, exhibition
  • Architectural lights for canopy, corridor, window, archway
DIY lights for home use
Related links to "Catena FlexStrip Premio CV 120R, High Efficency 28,8W/m -2650lm/m"
Technical Details:

Luminous Flux per Meter: 2650 lm
Output per Meter: 28.8 W
Luminous Flux: 13250 lm
Light Yield: 92 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥92 Ra
Color Consistency (SDCM): <3
Beam Angle: 120 °
LED-Chip: SMD 2835
LED per Meter: 120
Cut After: 50 mm
Input Current: DC 24V
Power Consumption: 144 W
Output of Driver: DC 24V
CC/CV: CV
Input Lamp: cable with flying leads
Input Strip: cable with flying leads - one side
Ambient Temperature (TA): -20°C - 40°C
Storage Temperature: -40°C - 55°C
Dimensions: 5000x10x1,5 mm
IP Class: 20
Net Weight: 119 g
Type of Packaging: bag
Dimensions of Packaging: 210x230x10
Warranty 3 years
Operating Hours: >50.000 h L70/B50
Disposal Obligation: ja
Customs Tariff Number: 8539510000
Certifications CE
Barcode: 4250557820347
