Lareda 30-930-3000LM DALI DIM WH
Order number: LG14466DA
Prices are only visible after login.
Availability: low stock
Dimensions
- Order number: : LG14466DA
- Luminous Flux: 3000 lm
- Power Draw: 30 W
- Light Color: warmwhite (3000 K)
- Input Current: AC 198 - 264V, 50/60Hz
- Color Rendering Index (CRI): ≥90 Ra
- IP Code: 20
- Beam Angle: 36°
- LED-Chip: Bridgelux COB
- Housing Color: white
- Dimensions: 208x85x184 mm
- Warranty: 3 years
LED Tracklight for 3-phase track Lareda is a very elegant and timeless... more
Product information "Lareda 30-930-3000LM DALI DIM WH"

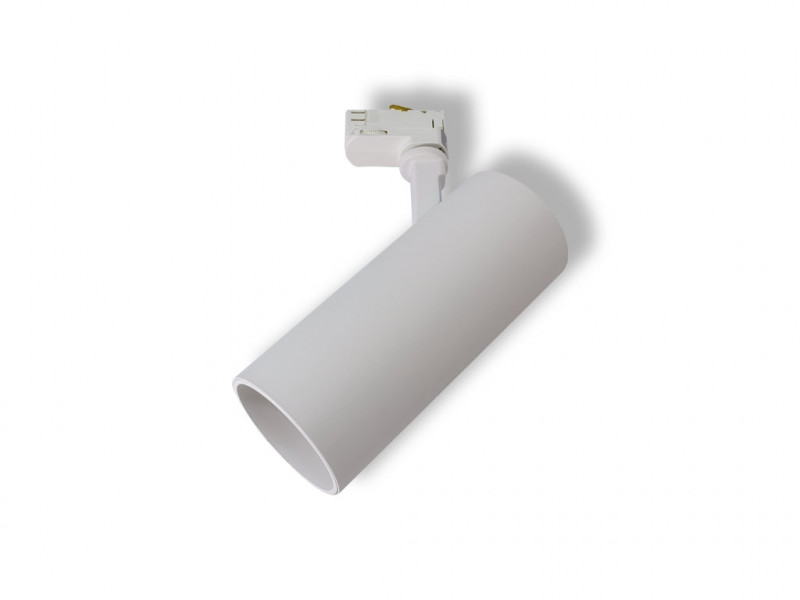

LED Tracklight for 3-phase track
Lareda is a very elegant and timeless spotlight for single-phase track systems.

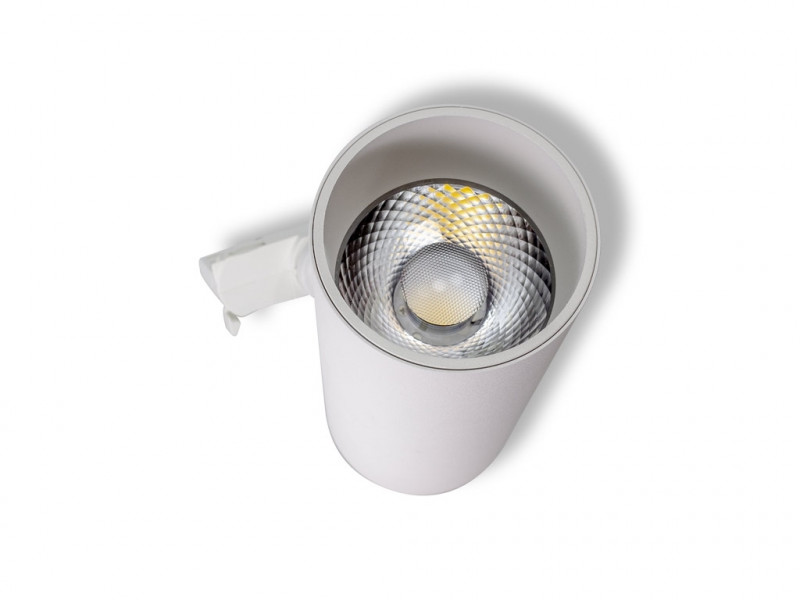

Lareda has a perfect glare limitation and a directional beam angle of 36 ° using a removable lens.
High-quality aluminum housing for better heat dissipation. Integrated LED driver with up to 30,000 hours lifetime.
Large swivel range for perfect alignment.
Other lenses with smaller beamangle are available as an option. 15°, 24°
Related links to "Lareda 30-930-3000LM DALI DIM WH"
Technical Details:
| Luminous Flux: | 3000 lm |
| LED Output: | 28 W |
| Light Yield: | 100 lm/W |
| Light Temperature: | 3000 K |
| Light Color: | warmwhite |
| Color Rendering Index: | ≥90 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 36 ° |
| Swappable Reflector: |  |
| Unified Glare Rating (UGR): | 17 |
| Light Emission: | sideward |
| Dimmable: | |
| Method of Dimming: | DALI |
| LED-Chip Manufacturer: | Bridgelux |
| LED-Chip: | COB |
| Number of LED: | 1 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 198 - 264V, 50/60Hz |
| Power Consumption: | 30 W |
| Contains Driver: | |

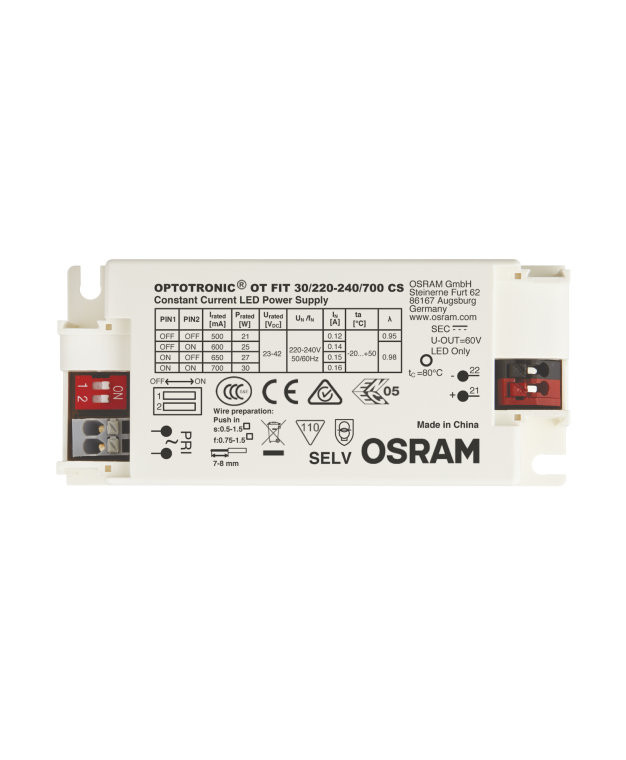

| Driver Manufacturer: | Osram |
| Power Factor (PF): | >0.98 |
| Input Driver: | lighting track |
| Output of Driver: | DC 23-42V, 500-700mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Power rail |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | 0°C - 35°C |
| Storage Temperature: | -20°C - 50°C |
| Dimensions: | 208x85x184 mm |
| Mounting: | Decke,Wand,Stromschiene |
| Montageart: | surface mounted |
| Pivot Range pan: | 350 ° |
| Pivot Range tilt: | 90 ° |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | 3-Phase Track Adapter |
| Cover: | Lens |
| Net Weight: | 978 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 90*90*295 |
| Weight incl. Packaging: | 1.038 kg |
| Content Master Package: | 12 |
| Dimensions of Master Package: | 385x290x320 mm |
| Weight Master Package: | 12,74 kg |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Operating Hours: | >35.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,LM80 |
| Barcode: | 4250557820330 |
| perfekte Blendungsbegrenzung | |
| für Wohnraum, Museum, Shop oder Deko | |
| max. 25 Spots auf einer 16A Sicherung | |
| Treiber einstellbar.: 500, 600, 650, 700mA 21-30W | |
Eleganter Stromschienenstrahler für 3-Phasenstromschiene mit einem Farbwiedergabeindex >90Ra more
Eleganter Stromschienenstrahler für 3-Phasenstromschiene mit einem Farbwiedergabeindex >90Ra
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: 0°C - 35°C
Lichtstrom: 3000 lm
LED-Leistung: 30 W
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 36°
UGR: 17
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 208x85x184 mm
Montageart: Aufbau (Decke,Wand,Stromschiene)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 978 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B10): 35000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: 0°C - 35°C
Lichtstrom: 3000 lm
LED-Leistung: 30 W
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 36°
UGR: 17
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 208x85x184 mm
Montageart: Aufbau (Decke,Wand,Stromschiene)
Schutzart (DIN EN 60529): IP20
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 978 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B10): 35000 h
