Allestra MKII 30/60-727/740-9600LM IP66 IK08 0-10V PWM Dim
Order number: LG10945
Available from 05/2026
Prices are only visible after login.
Availability: on request
Dimensions
- Order number: : LG10945
- Luminous Flux: 9600 lm
- Power Draw: Power Select (30, 45, 60 W)
- Light Color: CCT Select (2700, 3000, 4000 K)
- Input Current: AC 100-277V, 50/60Hz
- Color Rendering Index (CRI): ≥70 Ra
- IP Code: 66
- Beam Angle: 140x70°
- LED-Chip: Manlux SMD5050
- Housing Color: grey
- Dimensions: 450x246x122 mm
- Warranty: 5 years
LED Street Light OneFitAll® concept Litegear® Allestra is a versatile... more
Product information "Allestra MKII 30/60-727/740-9600LM IP66 IK08 0-10V PWM Dim"
LED Street Light OneFitAll® concept
- Litegear® Allestra is a versatile LED streetlight with PWM 0-10V dimming interface, Zhags socket for Sesnors and wireless adapters.
- Build in SDP 10KV surge protection
- Selectable CCT: 2700K, 3200K, 4000K
- Power Select: 30W, 45W, 60W
- It can be used on roads or parking areas. It is highly efficient up to 160lm/W with interchangeable lens modules. Due to its long lifespan maintenance cost will decrease dramatically. Due to its low power consumption and long lifespan users will have a quick return on investment.
- Nice sleek, modular design guarantees an excellently performing product with very low dust accumulation.
- ENEC certified
Allestra Series has an outstanding price to performance ratio! It is water and dust proof with protection class IP66. With its wide beam angle you can cover wide areas on streets, parking areas or along factory buildings.

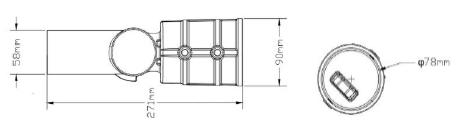

The ideal installation height is 4 - 10 meters. It can be mounted on all poles with 60/76mm tube dimensions due to integrated reduction adapter to 60mm dimension. Polemount adapter can be adjusted from 0-90 degree.
Related links to "Allestra MKII 30/60-727/740-9600LM IP66 IK08 0-10V PWM Dim"
Technical Details:
| Luminous Flux: | 9600 lm |
| LED Output: | 58 W |
| Light Yield: | 160 lm/W |
| Light Temperature: | 2700, 3000, 4000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥70 Ra |
| Color Consistency (SDCM): | <5 |
| Beam Angle: | 140x70 ° |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | 0-10V,PWM,"Power Select" |
| LED-Chip Manufacturer: | Manlux |
| LED-Chip: | SMD5050 |
| Number of LED: | 216 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 100-277V, 50/60Hz |
| Power Consumption: | Power Select (30, 45, 60 W) |
| Contains Driver: | |
| Driver Manufacturer: | Inventronic |
| Power Factor (PF): | >0.95 |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Kabel offenen Enden 60cm |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -40°C - 50°C |
| Storage Temperature: | -40°C - 60°C |
| Dimensions: | 450x246x122 mm |
| Montageart: | surface mounted |
| IP Class: | 66 |
| IK Code: | 08 |
| Housing Color | grey |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Special Feature of Housing: | Mastadapter drehbar 90° |
| Cover: | Lens |
| Net Weight: | 4100 g |
| Type of Packaging: | box |
| Content Master Package: | 1 |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >100.000 h L70/B50 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405409990 |
| Certifications | CE,LM80 |
| Masthülse: 78mm + 60mm Reduzieradapter | |
| polemount: 78mm + 60mm reducer adapter | |
| Power Select: 30, 45, 60W 0-10V PWM dim | |
| CCT Select: 2700/3000/4000K umschaltbar | |
| Zhaga Socket 7-pin., SPD 10KV, | |
