Order number: LG58316S
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : LG58316S
- Luminous Flux: 800 lm
- Power Draw: Power Select (5,9 W)
- Light Color: dualwhite
- Input Current: AC 220 - 240V, 60mA, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 66
- Beam Angle: 110°
- LED-Chip: SMD 2835
- Housing Color: black
- Dimensions: 270x74 mm
- Warranty: 5 years
Luminous Flux
800
lm
Power Draw
9 W
Color Rendering Index (CRI)
CRI
>80 Ra
IP Code
IP 66
Beam Angle
110°
ceiling, wall
mounting type
Light Direction
Dimensions
(ØxH) in mm
270x74
Warranty
5 years
The light source may only be replaced by qualified persons
The driver may only be replaced by qualified persons
LED wall / ceiling lamp outdoor The Litegear® CANTANA LED luminaire... more

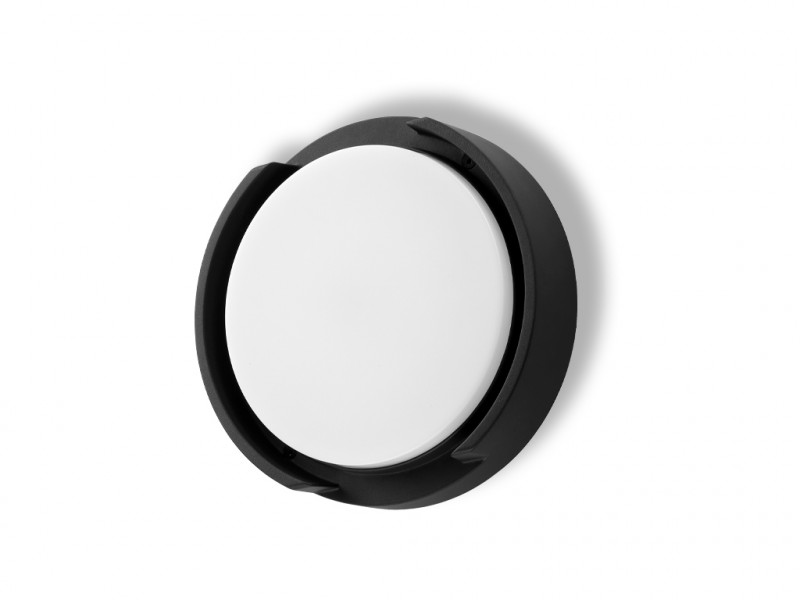

Product information "Cantana 9-830/840-800LM SENSOR IP66 IK10"
LED wall / ceiling lamp outdoor

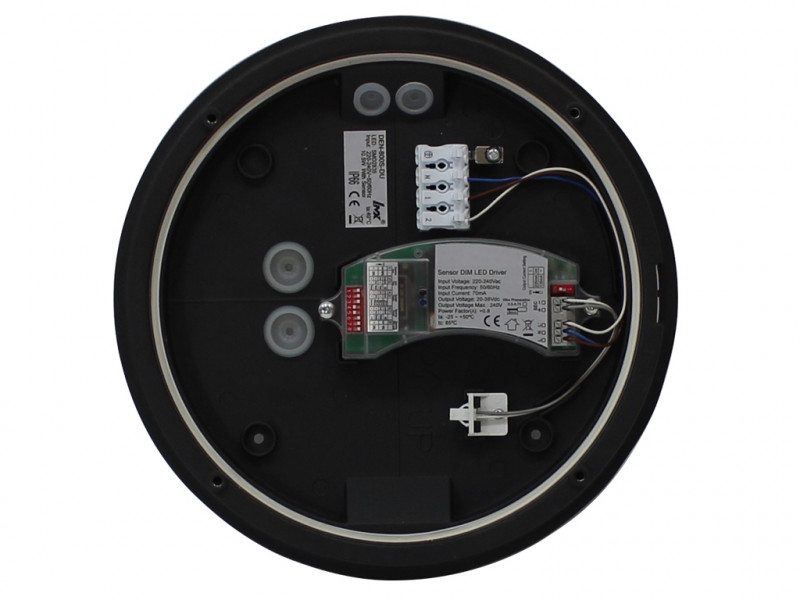

The Litegear® CANTANA LED luminaire convinces with a timeless, round design. Cantana is weatherproof IP66 and therefore suitable for permanent outdoor use. LED ceiling light has a sturdy aluminum housing with a milky plastic cover. Due to the milky diffuser, the light from the LEDs is distributed very evenly over a large area, ideal for illuminating entrances to houses, on facades, ceilings or under canopies. The ease of installation makes this product all the more versatile and enjoyable for any installer. Easy access to the exchangeable LED board with driver and terminal block. The surface-mounted luminaire has numerous rear cable entries in the middle or laterally at the edge. This Outdoor LED light can be easily mounted on almost any surface.
- Long life up to 50,000 operating hours
- With integrated microwave motion sensor
- Settings of the sensor: detection range, light level, standby time and standby level or off
- Selectable CCT: 3000K or 4000K by internal switch
- Power select: 5W, 9W (400lm, 800lm)
Related links to "Cantana 9-830/840-800LM SENSOR IP66 IK10"
Technical Details:
Luminous Flux: | 800 lm |
LED Output: | 8 W |
Light Yield: | 89 lm/W |
Light Color: | dualwhite |
Color Rendering Index: | ≥80 Ra |
Color Consistency (SDCM): | <3 |
Beam Angle: | 110 ° |
Unified Glare Rating (UGR): | 22 |
Light Emission: | downward |
LED-Chip: | SMD 2835 |
Number of LED: | 88 |
Ignition Time: | <0,5 s |
Glow Wire Test 650°C/30s |
Input Current: | AC 220 - 240V, 60mA, 50/60Hz |
Power Consumption: | Power Select (5,9 W) |
Contains Driver: | |
Power Factor (PF): | >0.8 |
Input Driver: | terminal |
Output of Driver: | DC 23-38V, 130/220mA |
CC/CV: | CC |
Input Lamp: | terminal |
Switching Cycles: | >100.000 |
Electrical Protection Class: | II |
Compatible with Emergency Current: | |
Loop-Through Cabling: | |
Ambient Temperature (TA): | -20°C - 45°C |
Storage Temperature: | -40°C - 60°C |
Dimensions: | 270x74 mm |
Mounting: | ceiling,wall |
Montageart: | surface mounted |

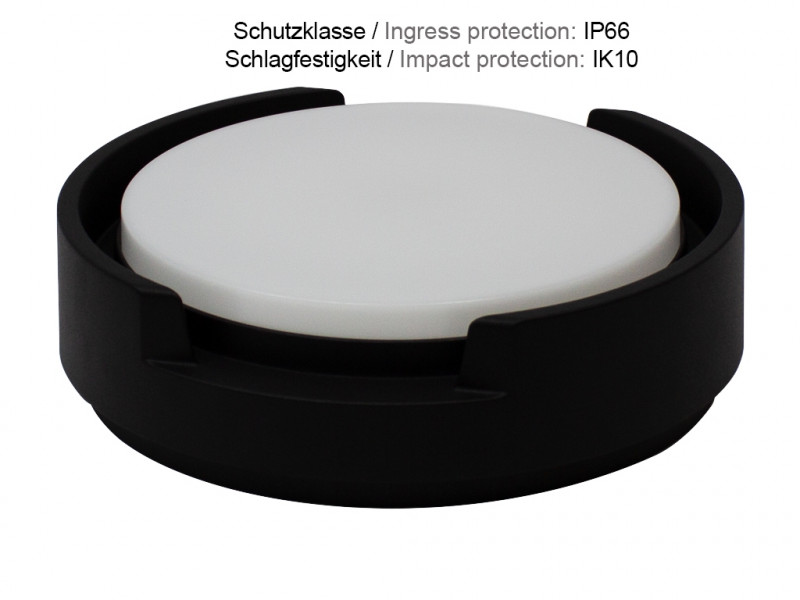

IP Class: | 66 |
IK Code: | 10 |
Housing Color | black |
Housing Material: | aluminum |
Coating: | powder-coated |
Special Feature of Housing: | shockproof |
Cover: | opal |
Net Weight: | 1742 g |
Type of Packaging: | box |
Dimensions of Packaging: | 280x280x86 |
Weight incl. Packaging: | 1.93 kg |
Content Master Package: | 10 |
Dimensions of Master Package: | 465x295x585 mm |
Weight Master Package: | 19,7 kg |
Product Line: | Premio Line |
Warranty | 5 years |
Operating Hours: | >50.000 h L80/B20 |
Disposal Obligation: | |
Customs Tariff Number: | 9405499090 |
Certifications | CE,LM80,D |
Barcode: | 4250557819556 |
Farbwahl/CCT select: 3000/4000 Kelvin | |
Leistungswahl/Power select: 5/9 Watt | |
integr. Microwave Bewegungssensor | |
schlagfest |
Runde LED-Wand-/Deckenleuchte mit multifunktionellem Sensor, wählbarer Lichtfarbe sowie... more
Runde LED-Wand-/Deckenleuchte mit multifunktionellem Sensor, wählbarer Lichtfarbe sowie Leistungsanpassung
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 800 lm
LED-Leistung: Power Select (5,9 W)
Leuchten-Lichtausbeute: 89 lm/W
Lichtfarbe: dualwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 110°
UGR: 22
Lichtaustritt: direkt
Maße: 270x74 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: opal
Nettogewicht: 1742 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 800 lm
LED-Leistung: Power Select (5,9 W)
Leuchten-Lichtausbeute: 89 lm/W
Lichtfarbe: dualwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 110°
UGR: 22
Lichtaustritt: direkt
Maße: 270x74 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: opal
Nettogewicht: 1742 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
