SOLVELA BRICK 6-730-900LM IP65

LG11966
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG11966
  • Luminous Flux: 900 lm
  • Power Draw: 6 W
  • Light Color: warmwhite (3000 K)
  • Input Current: DC 3,7V, 3000mAHmA
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 65
  • Beam Angle: 140x70°
  • LED-Chip: SMD 2835
  • Housing Color: white
  • Dimensions: 230x97x42,7 mm
  • Warranty: 2 years

Luminous Flux

900
lm

Power Draw

6 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 65

Beam Angle

140x70°

wall

mounting type

Light Direction

Dimensions

(LxBxH) in mm
230x97x42,7

Warranty

2 years

Solvela Brick SOLAR LED wall light   Self-sufficient LED wall light with... more
Product information "SOLVELA BRICK 6-730-900LM IP65"

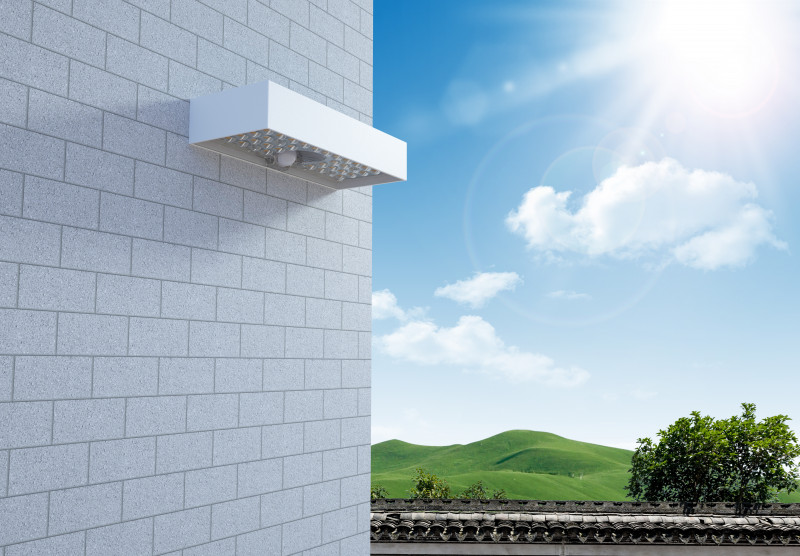

Solvela Brick SOLAR LED wall light

  • Self-sufficient LED wall light with integrated solar panel, asymmetrically radiating LED modules and PIR motion sensor with daylight harvesting
  • Ideal for mounting on facades to illuminate walkways or as safety lighting
  • BEAM ANGLE. Type. III 140° x 70°
  • High light output up to 135 lumen/watt at 6W = 850lm
  • Battery: Li-Ion
  • 2 operating modes:
A: 5% orientation light + 100% light when movement detected @ >30% battery, <30% battery: off + 100% when movement detected
B: max. 5 hours with 50% orientation light and 100% light when motion is detected. When less than 30% battery capacity off + 100% with motion detection
  • Maximum battery life: 2-4 nights depending on sunshine, battery status and mode
  • Modes and settings changeable.
  • Motion sensor with 120° detection range 6m at 2.0-4.0m installation height
  • UV-stable, flame-retardant ABS plastic
  • maximum mounting height: 4m
  • quick, easy installation using screws and dowels (incl.)
  • Period of use: approx. 4 years

Applications:

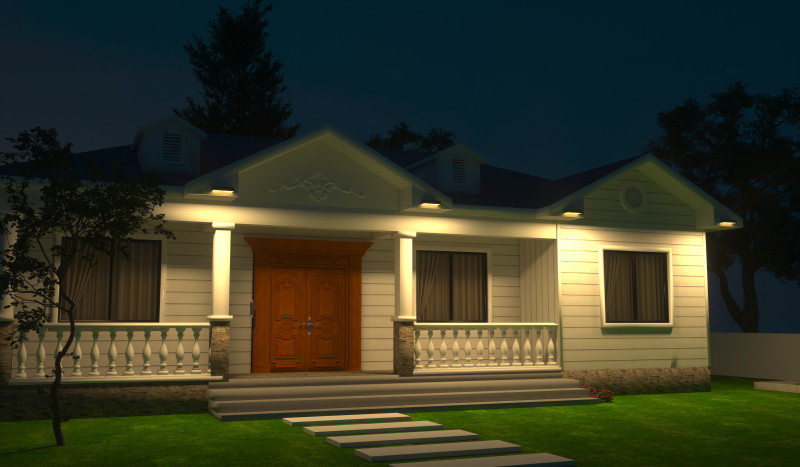

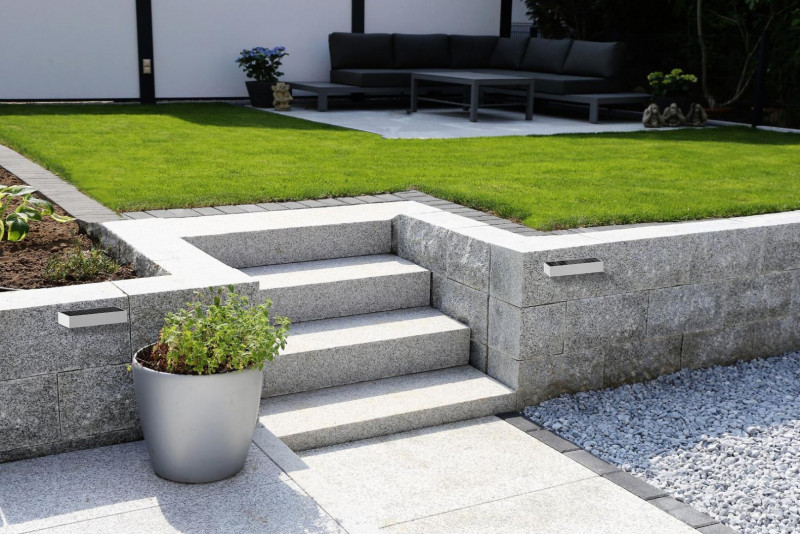

Outside on walls and facades: on outside stairs, garages, sidewalks, as security lighting or for decorative purposes (architectural lighting)
Related links to "SOLVELA BRICK 6-730-900LM IP65"
Technical Details:

Luminous Flux: 900 lm
LED Output: 6 W
Light Yield: 150 lm/W
Light Temperature: 3000 K
Light Color: warmwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <5
Beam Angle: 140x70 °
Light Emission: downward
LED-Chip: SMD 2835
Number of LED: 35
Ignition Time: <1 s
Glow Wire Test 650°C/30s ja
Input Current: DC 3,7V, 3000mAHmA
Power Consumption: 6 W
CC/CV: CV
Switching Cycles: >15.000
Ambient Temperature (TA): -10°C - 45°C
Storage Temperature: 0°C - 50°C
Dimensions: 230x97x42,7 mm
Mounting: Wand
Montageart: surface mounted
IP Class: 65
Housing Color white
Housing Material: ABS+PC, Anti UV,V0 firep.
Special Feature of Housing: Sensor 6m /Solarpanel
Cover: Lens
Net Weight: 0.585 g
Type of Packaging: box
Weight incl. Packaging: 0.653 kg
Content Master Package: 24
Dimensions of Master Package: 500x310x230 mm
Weight Master Package: 15,42 kg
Product Line: ECO Line
Warranty 2 years
Operating Hours: >15.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 9405413990
Certifications CE
Barcode: 4250557822419
Solarleuchte für Wandmontage, modernes Design
solar wall pack light stylish design, 2 work modes
integrierter Bewegungssensor mit Dimmung/Standby
integrated motion sensor 120° <6m
replaceable battery pack 18650/3000mA/3,7V/11,1Wh
