Preview: Cetara Vario MKIII Square 6262 36-827/865-3800LM BAP

Cetara Vario MKIII Square 6262 36-827/865-3800LM BAP

Product Info (PDF)

Order number: LG59012

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG59012
Luminous Flux: 3800 lm
Power Draw: 36 W
Light Color: dualwhite
Input Current: AC 220-240V, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 40 (43 room side)

Beam Angle: 90°
LED-Chip: San'an SMD 4014
Housing Color: white
Dimensions: 620x620x10 mm
Warranty: 3 years

Luminous Flux

3800
lm

Power Draw

36 W

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 40

IP Class Room Side

IP 43
room side

Beam Angle

90°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
620x620x10

Warranty

3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Panel Cetara Vario Series Varaiable adjustable and dimmable color... more

Close menu

Product information "Cetara Vario MKIII Square 6262 36-827/865-3800LM BAP"

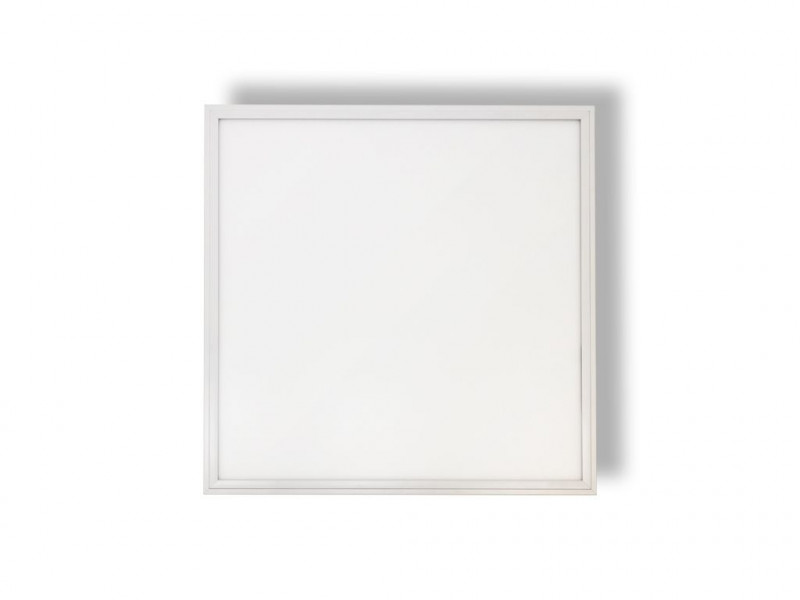

LED Panel Cetara Vario Series

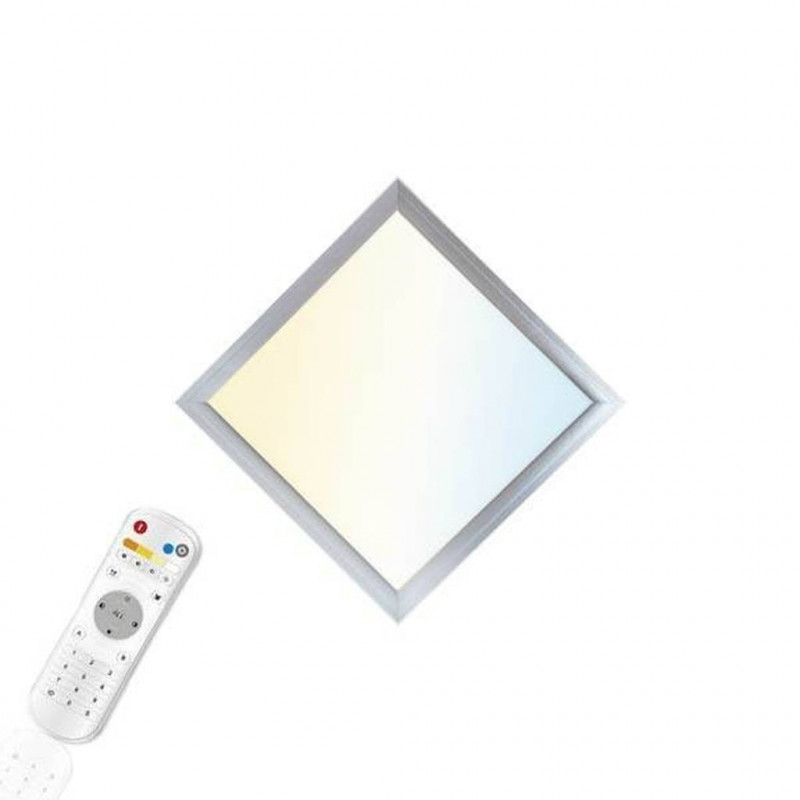

Varaiable adjustable and dimmable color temperature via wireless remote or wall controller from 2700K warm white to 6500K daylight with additional infinitely variable dimming funktion.

Suitable Remotes: LG59011

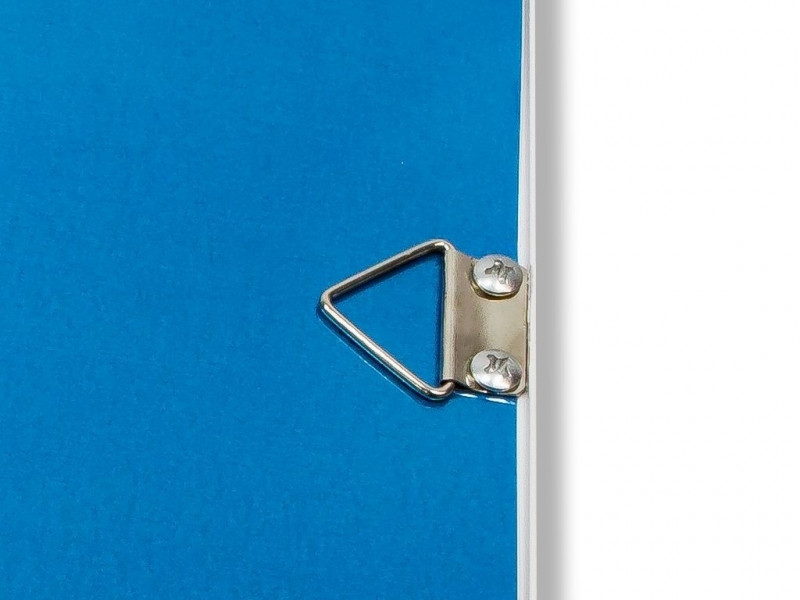

Litegear® Cetara Vario LED panels are made to be installed in to ceilings or to be hung with clips on walls or ropes on ceilings. LED panels have a low power consumption and a long lifespan compared to traditional flourescent luminaires. With optional hanging kits the panel can be placed over desks or work areas. Panels create a light flooded atmosphere and look like a skywindow when illuminated. Litegear Cetara LED panels have a low UGR (unified glare rate). A Cetara Square Panel with 36W power consumption can replace a recessed ceiling light with 4 x T8 18W flourescent tubes and can save around 55 to 60% energy costs and lower the maintenance costs.

The Litegear LED Panels are available in different dimensions and color temperatures. They look really stylish and have a smooth light output. We offer them with TÜV approved LED driver. In our wide accessory range you can find also dimmable driver for Dali, push switch or 0-10V as an option. Cetara Panels have a very high lumen output.

Applications:

conference room
office
entrance hall
restrooms
supermarket and shops
showroom
health club

Related links to "Cetara Vario MKIII Square 6262 36-827/865-3800LM BAP"

Zurück

Technical Details:

Luminous Flux:	3800 lm
LED Output:	36 W
Light Yield:	106 lm/W
Light Color:	dualwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4
Beam Angle:	90 °
Unified Glare Rating (UGR):	19
Light Emission:	downward
Dimmable:
Method of Dimming:	Funk
LED-Chip Manufacturer:	San'an
LED-Chip:	SMD 4014
Number of LED:	240
Ignition Time:	<0,5 s

Input Current:	AC 220-240V, 50/60Hz
Power Consumption:	36 W

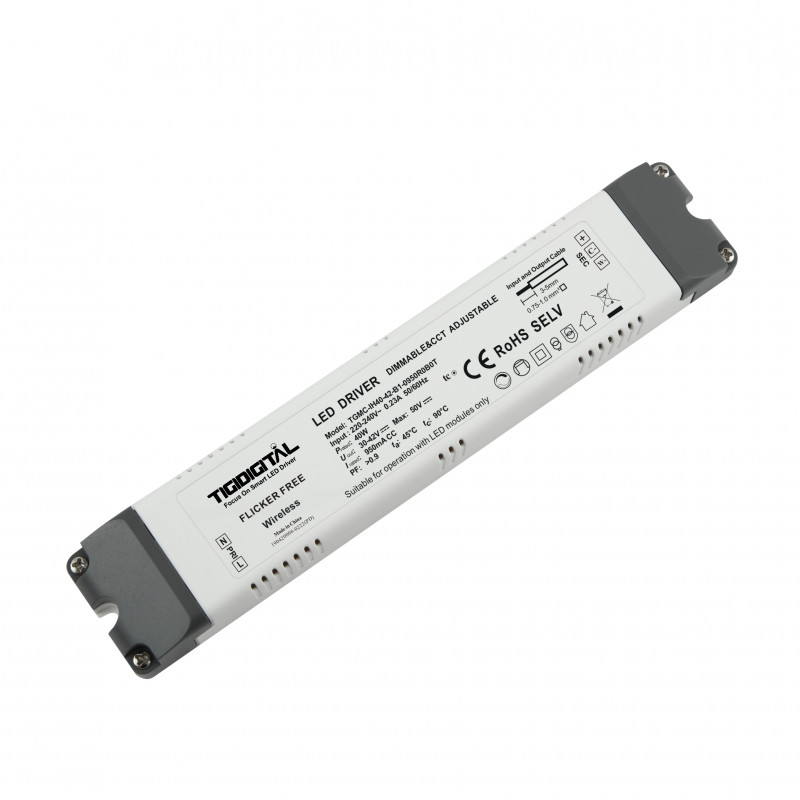

Contains Driver:
Power Factor (PF):	>0.9
Input Driver:	cable with flying leads
Output of Driver:	DC 28-42V, 900mA
CC/CV:	CC

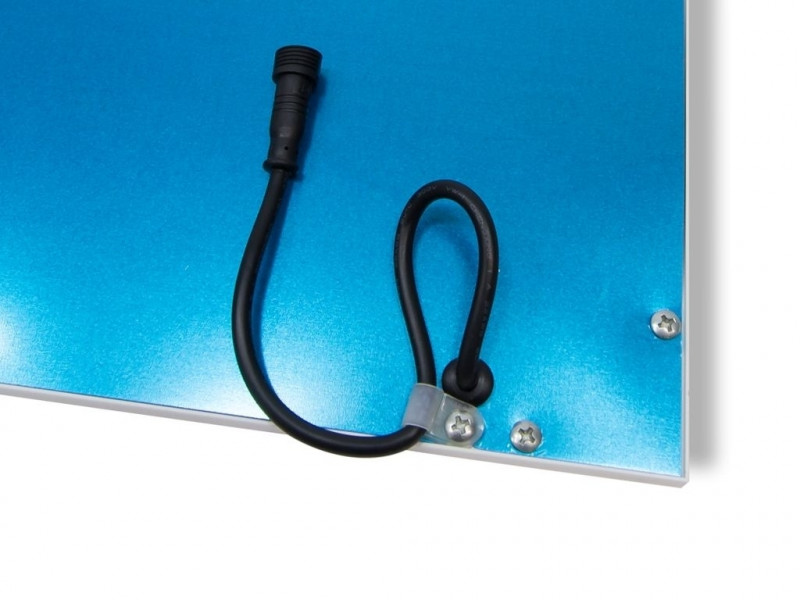

Input Lamp:	plug connector
Switching Cycles:	>100.000
Electrical Protection Class:	II
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-40°C - 55°C

Dimensions:	620x620x10 mm
Mounting:	Decke
Montageart:	recessed
IP Class:	40 (43 room side)
IK Code:	02
Housing Color	white
Housing Color (RAL Code):	similar 9016

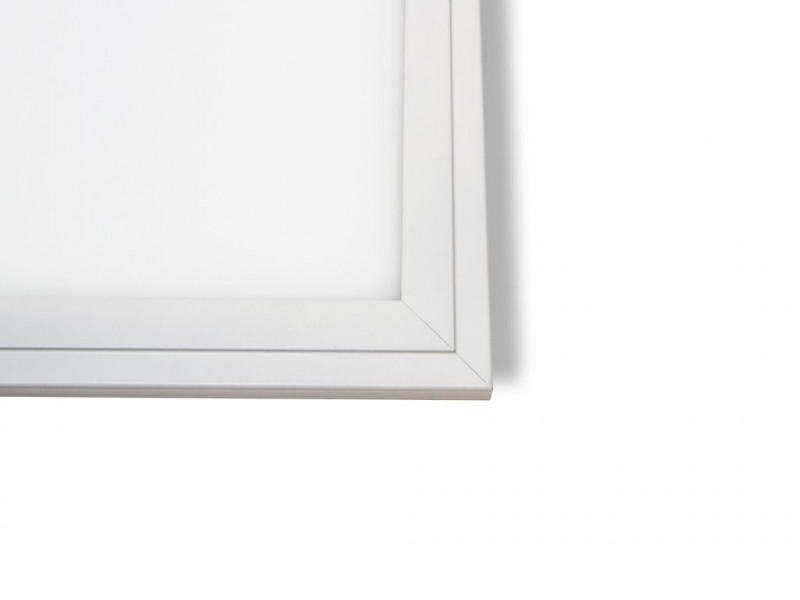

Housing Material:	aluminum
Coating:	powder-coated
Special Feature of Housing:	IP43 raumseits sonst IP40
Cover:	prismatic
Net Weight:	3 g

Type of Packaging:	box
Dimensions of Packaging:	670x670x40
Weight incl. Packaging:	3.5 kg
Content Master Package:	6
Dimensions of Master Package:	715x220x665 mm
Weight Master Package:	18,7 kg

Product Line:	Premio Line
Warranty	3 years
Operating Hours:	>35.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,D
Barcode:	4250557820903
Farbtemperatur: 2700K(warmwhite) - 6500K(kaltwhite)
mediums Funkfernbedienung veränderbar

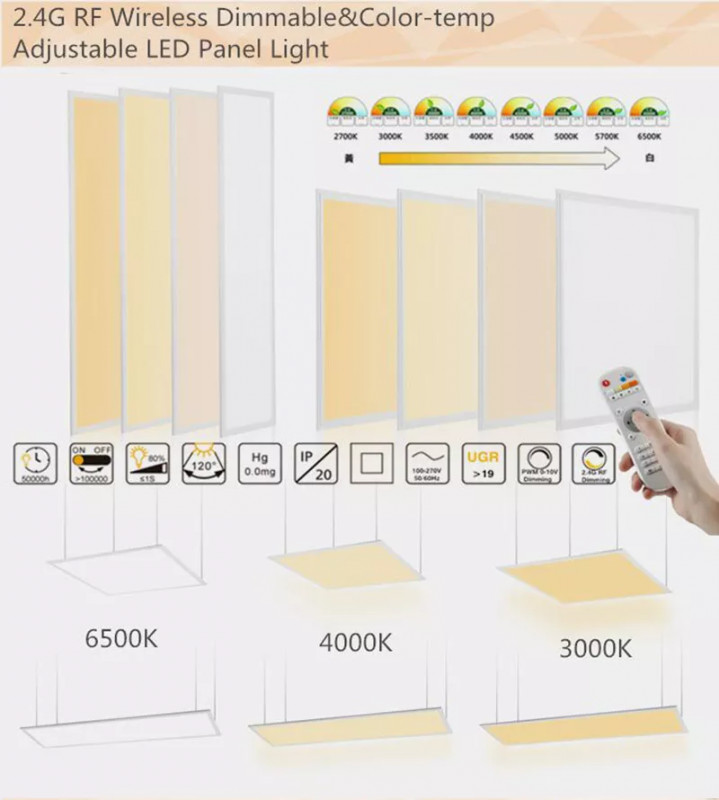

CCT change: from 2700 to 6500 Kelvin with remote

Technical Data Sheet (PDF)

Zurück

LED-Panel mit stufenlos verstellbarer Lichtfarbe und Lichtleistung via Funkfernbedienung oder... more

Zurück

LED-Panel mit stufenlos verstellbarer Lichtfarbe und Lichtleistung via Funkfernbedienung oder Wandcontroller
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 45°C
Lichtstrom: 3800 lm
LED-Leistung: 36 W
Leuchten-Lichtausbeute: 106 lm/W
Lichtfarbe: dualwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 90°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 620x620x10 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP40 (IP43 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK02
Außenfarbe: white (9016)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: prismatisch
Nettogewicht: 3 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 35000 h
