Cetara Vario MKIV Square 6262 36-830/865-4000LM BAP
Order number: LG59012.1
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG59012.1
- Luminous Flux: 4000 lm
- Power Draw: 36 W
- Light Color: dualwhite (3000-6500 K)
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20 (40 room side)
- Beam Angle: 90°
- LED-Chip: SANAN SMD 4014
- Housing Color: white

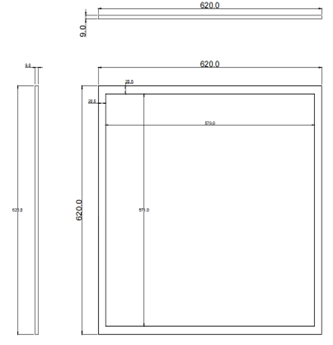

- Dimensions: 620x620x9 mm
- Warranty: 5 years
LED Panel Cetara Vario Series Varaiable adjustable and dimmable color... more
Product information "Cetara Vario MKIV Square 6262 36-830/865-4000LM BAP"
LED Panel Cetara Vario Series

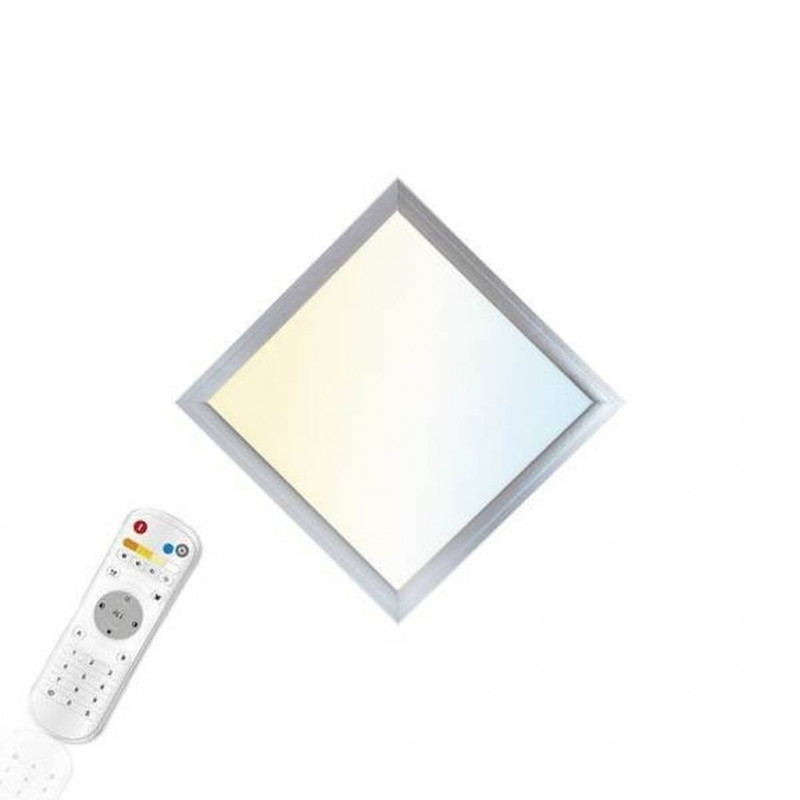

Varaiable adjustable and dimmable color temperature via wireless remote or wall controller from 2700K warm white to 6500K daylight with additional infinitely variable dimming funktion.
Suitable Remotes: LG59011
Litegear® Cetara Vario LED panels are made to be installed in to ceilings or to be hung with clips on walls or ropes on ceilings. LED panels have a low power consumption and a long lifespan compared to traditional flourescent luminaires. With optional hanging kits the panel can be placed over desks or work areas. Panels create a light flooded atmosphere and look like a skywindow when illuminated. Litegear Cetara LED panels have a low UGR (unified glare rate). A Cetara Square Panel with 36W power consumption can replace a recessed ceiling light with 4 x T8 18W flourescent tubes and can save around 55 to 60% energy costs and lower the maintenance costs.
The Litegear LED Panels are available in different dimensions and color temperatures. They look really stylish and have a smooth light output. We offer them with TÜV approved LED driver. In our wide accessory range you can find also dimmable driver for Dali, push switch or 0-10V as an option. Cetara Panels have a very high lumen output.
Applications:
- conference room
- office
- entrance hall
- restrooms
- supermarket and shops
- showroom
- health club
Related links to "Cetara Vario MKIV Square 6262 36-830/865-4000LM BAP"
Technical Details:
| Luminous Flux: | 4000 lm |
| LED Output: | 36 W |
| Light Yield: | 122 lm/W |
| Light Temperature: | 3000-6500 K |
| Light Color: | dualwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | Funk |
| LED-Chip Manufacturer: | SANAN |
| LED-Chip: | SMD 4014 |
| Number of LED: | 216 |
| Ignition Time: | <0,5 s |
| Power Consumption: | 36 W |
| Contains Driver: | |
| Driver Manufacturer: | TIGI |
| Power Factor (PF): | >0.9 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 20-42V, 550-1100mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >50.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -30°C - 45°C |
| Storage Temperature: | -30°C - 80°C |
| Dimensions: | 620x620x9 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 20 (40 room side) |
| IK Code: | 07 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Cover: | prismatic |
| Net Weight: | 2420 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 655x705x20 |
| Weight incl. Packaging: | 3.15 kg |
| Content Master Package: | 5 |
| Dimensions of Master Package: | 655x705x20 mm |
| Weight Master Package: | 16,8 kg |
| Product Line: | Premio Line |
| Warranty | 5 years |
| Operating Hours: | >124.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE |
| Barcode: | 4250557826028 |
| Farbtemperatur: 2700K(warmwhite) - 6500K(kaltwhite) | |
| mediums Funkfernbedienung veränderbar | |
| CCT change: from 3000 to 6500 Kelvin with remote | |
LED-Panel mit stufenlos verstellbarer Lichtfarbe und Lichtleistung via Funkfernbedienung oder... more
LED-Panel mit stufenlos verstellbarer Lichtfarbe und Lichtleistung via Funkfernbedienung oder Wandcontroller
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -30°C - 45°C
Lichtstrom: 4000 lm
LED-Leistung: 36 W
Leuchten-Lichtausbeute: 122 lm/W
Farbtemperatur: 3000-6500 K
Lichtfarbe: dualwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 90°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 620x620x9 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20 (IP40 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK07
Außenfarbe: white (9016)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: prismatisch
Nettogewicht: 2420 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 124000 h
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -30°C - 45°C
Lichtstrom: 4000 lm
LED-Leistung: 36 W
Leuchten-Lichtausbeute: 122 lm/W
Farbtemperatur: 3000-6500 K
Lichtfarbe: dualwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 90°
UGR: 19
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 620x620x9 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20 (IP40 raumseitig)
Stoßfestigkeitsgrad (IEC 62262): IK07
Außenfarbe: white (9016)
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: prismatisch
Nettogewicht: 2420 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B10): 124000 h
