Cetara 6060-36-840-3900LM IP65
Order number: LG59053
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG59053
- Luminous Flux: 3900 lm
- Power Draw: 36 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 220-240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 65
- Beam Angle: 120°
- LED-Chip: SMD 4014
- Housing Color: white

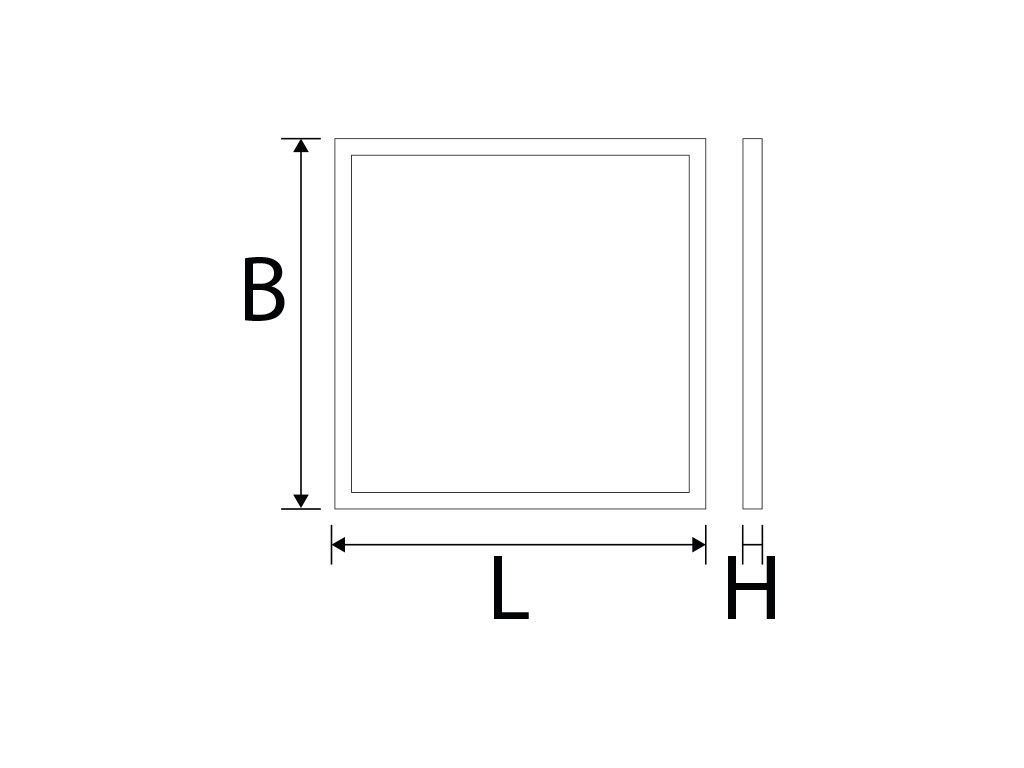

- Dimensions: 595x595x12 mm
- Warranty: 3 years
LED Panel damp proof IP65 version Litegear® Cetara LED panels are made... more
Product information "Cetara 6060-36-840-3900LM IP65"
LED Panel damp proof IP65 version
Litegear® Cetara LED panels are made to be installed in to ceilings or to be hung with clips on walls or ropes on ceilings. LED panels have a low power consumption and a long lifespan compared to traditional flourescent luminaires. With optional hanging kits (a set contains 4 steel wires) the panel can be palced over desks or work areas. Panels create a light flooded atmosphere and look like a skywindow when illuminated. Litegear Cetara LED panels with prismatic cover are perfect to be used for computer desks in offices due to low UGR.A Cetara Panel with 25-36W power consumption can replace a recessed ceiling light with 4 x T8 18W flourescent tubes and can save around 60% energy costs and lower the maintenance costs.
The Litegear LED Panels are available in different dimensions and color temperatures. They look really stylish and have a smooth light output. As an option we offer suitable LED driver in non dimming or dimming version with 1-10V, Dali, DMX, Zigbee or Push dim. Cetara Panels have a very high lumen output.
Cetara Panels have a very high lumen output. up 110lm/W.
Special weather proof version IP65. Dust and splash protected.
Applications:
- office, conference room
- shower, in hospital and laboratory, food production, factory
- health care, gym, kitchen
Related links to "Cetara 6060-36-840-3900LM IP65"
Technical Details:
| Luminous Flux: | 3900 lm |
| LED Output: | 31 W |
| Light Yield: | 108 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <4 |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 22 |
| Light Emission: | downward |
| LED-Chip: | SMD 4014 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220-240V, 50/60Hz |
| Power Consumption: | 36 W |
| Contains Driver: |  |
| Power Factor (PF): | >0.9 |
| Output of Driver: | DC 32-42V, 500-900mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Ambient Temperature (TA): | -10°C - 40°C |
| Storage Temperature: | -20°C - 55°C |
| Dimensions: | 595x595x12 mm |
| Mounting: | Decke |
| Montageart: | recessed |
| IP Class: | 65 |
| IK Code: | 02 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Cover: | opal |
| Net Weight: | 3660 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 3.82 kg |
| Content Master Package: | 6 |
| Dimensions of Master Package: | 650x200x650 mm |
| Weight Master Package: | 23 kg |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L70/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,D |
| Barcode: | 4250557823775 |
| staubdicht und Spritzwasser geschützt IP65 | |
| Achtung EU-Größe nicht für deutsche Decken | |
| EU size can not be used for German ceilings | |
