Preview: Cetara Office 12030 36-830-4100LM

Product Info (PDF)

Order number: LG59073

Prices are only visible after login.

Availability: low stock

Dimensions

Menü schließen

Order number: : LG59073
Luminous Flux: 4100 lm
Power Draw: 36 W
Light Color: neutralwhite (3000 K)
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20

Beam Angle: 110°
Housing Color: white
Dimensions: 1195x295x10 mm
Warranty: 5 years

Luminous Flux

4100
lm

Power Draw

36 W

Light Color

3000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

110°

mounting type

Light Direction

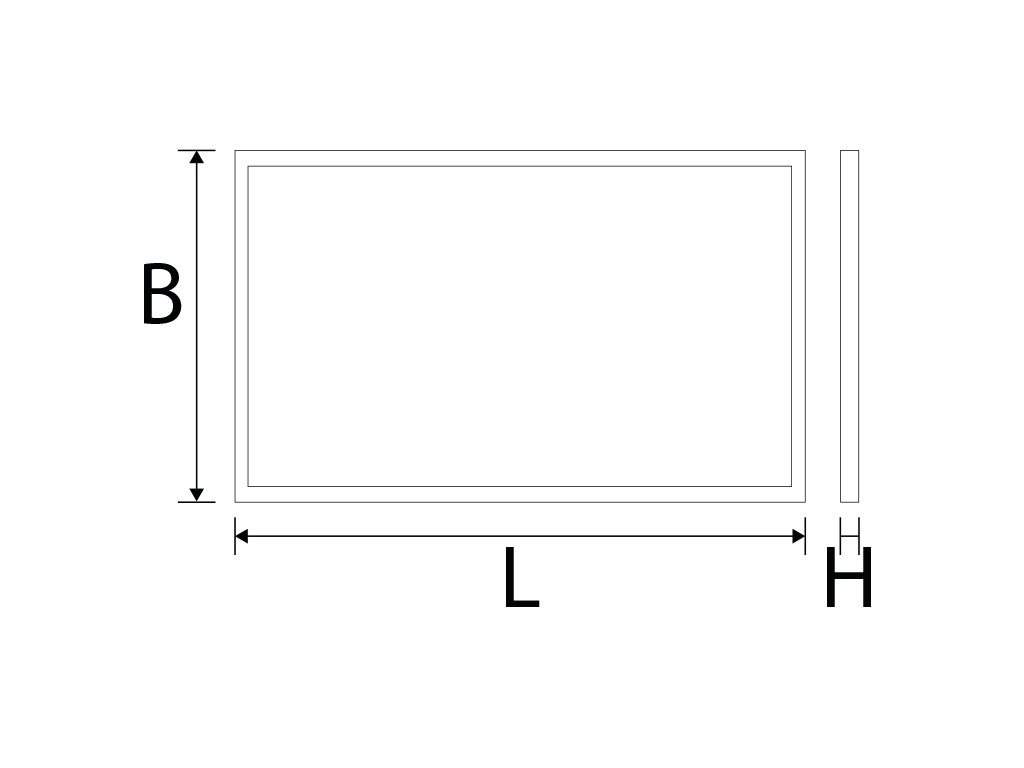

Dimensions

(LxBxH) in mm
1195x295x10

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED panel Litegear® Cetara LED panels are used as a replacement for louvre... more

Close menu

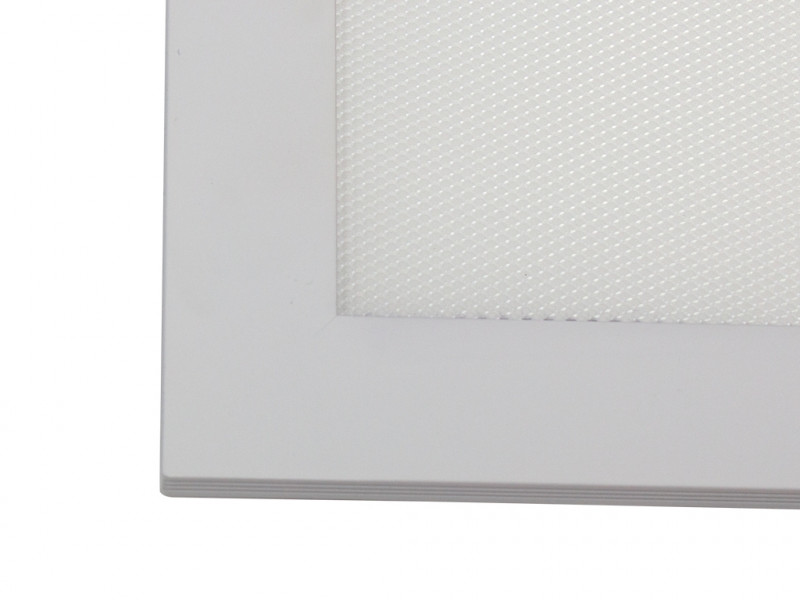

Product information "Cetara Office 12030 36-830-4100LM"

LED panel

Litegear® Cetara LED panels are used as a replacement for louvre luminaires. The classic rectangular design measuring 1200 x 300 mm can be attached to solid ceilings using an optional mounting frame or cable set. The wide beam angle distributes the light evenly over a large area. Our flat Litegear® LED panels simulate the incidence of light from a natural skylight. Cetara panels are suitable for universal use. The soft light creates a pleasant atmosphere and enables concentrated work. Quick and easy installation reduces installation costs.

The economical LED technology saves up to 60% electricity compared to conventional luminaires with fluorescent tubes. The Litegear® Cetara panel impresses with high colour rendering with a CRI greater than 80 Ra and very good brightness of up to 125lm/W. The favourable price guarantees a short amortisation period!

Litegear® Cetara panels are available in various sizes and different light colours. As an option, we offer various LED ballasts as accessories, including dimmable LED drivers with 1-10V Dali, radio or push-button dimming.

Areas of application:

- Laboratory, hospital, office, conference room, corridor and reception, fitness centre, canteen, sanitary area and recreation rooms

Related links to "Cetara Office 12030 36-830-4100LM"

Zurück

Technical Details:

Luminous Flux:	4100 lm
LED Output:	36 W
Light Yield:	114 lm/W
Light Temperature:	3000 K
Light Color:	neutralwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<5
Beam Angle:	110 °
Light Emission:	downward
Ignition Time:	<0,5 s

Power Consumption:	36 W
Contains Driver:
Input Driver:	plug connector
Output of Driver:	DC 40V, 900mA
CC/CV:	CC
Input Lamp:	plug connector
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-40°C - 60°C

Dimensions:	1195x295x10 mm
Mounting:	Decke
Montageart:	recessed
IP Class:	20
IK Code:	02
Housing Color	white
Housing Material:	aluminum
Coating:	lacquered
Cover:	frosted
Net Weight:	2404 g

Type of Packaging:	box
Weight incl. Packaging:	2.7 kg
Content Master Package:	5
Dimensions of Master Package:	1260x330x180 mm
Weight Master Package:	14,47 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE
Barcode:	4250557826752
PMMA Diffusor

Technical Data Sheet (PDF)

LED-Panel als Ersatz für Rasterfeldleuchten, geeignet für Bildschirmarbeitsplatz more

Zurück

LED-Panel als Ersatz für Rasterfeldleuchten, geeignet für Bildschirmarbeitsplatz
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 4100 lm
LED-Leistung: 36 W
Leuchten-Lichtausbeute: 114 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <5
Abstrahlwinkel: 110°
Lichtaustritt: direkt
Maße: 1195x295x10 mm
Montageart: Einbau (Decke)
Schutzklasse (DIN EN 61140): II
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK02
Außenfarbe: white
Gehäusematerial: Aluminium
Gehäusebeschichtung: lackiert
Abdeckung: frost
Nettogewicht: 2404 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
